L CD
GRAPHIC FACTORY
FUNCTION DISPLAY SETTING DESCRIPTION SETTING
6-20
OUTPUT TERMINAL FUNCTIONS

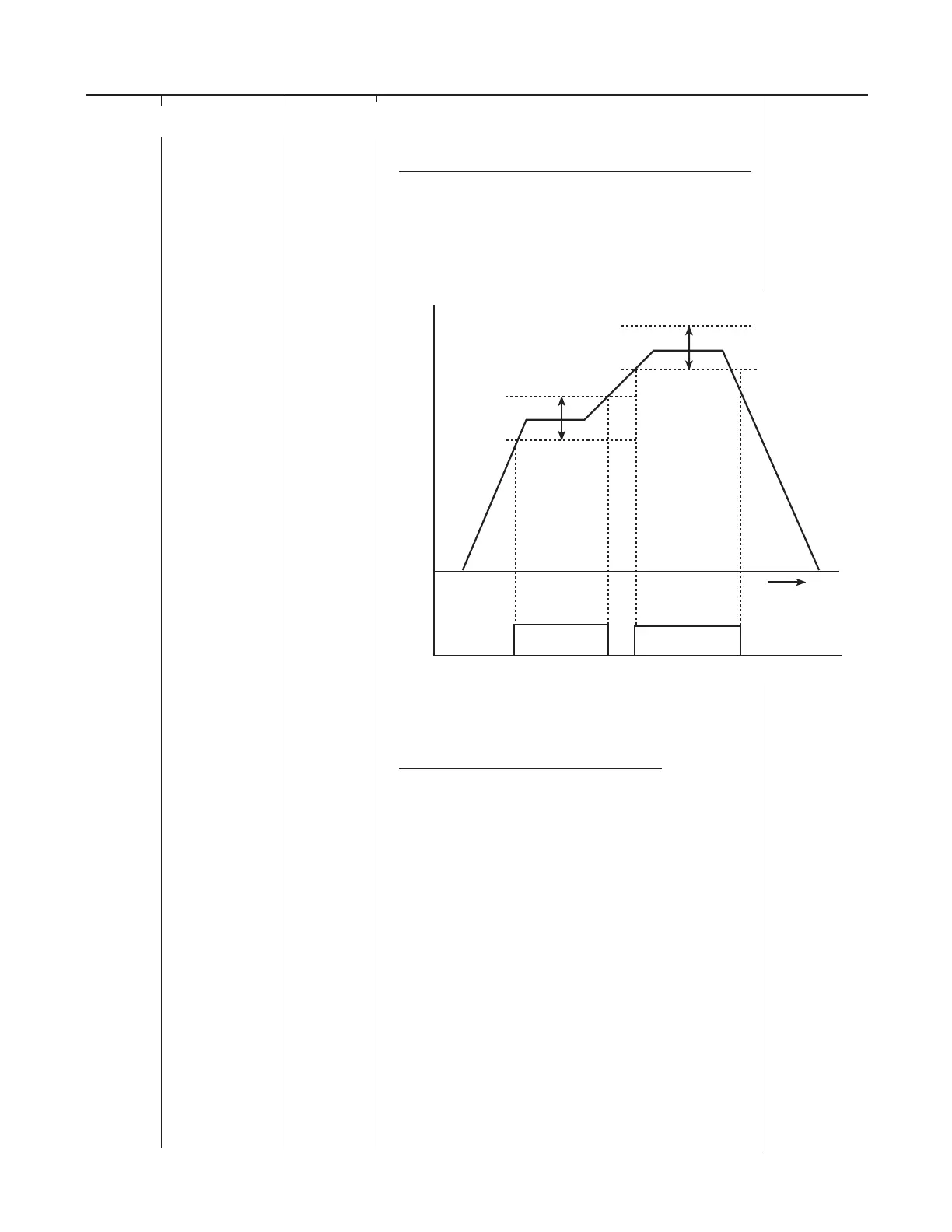

* 48 FAR HYSTR FREQUENCY AT REFERENCE HYSTERESIS (WIDTH) 2.5
The signal is on when the output frequency
equals the frequency reference’s set point.
This is an open collector output and can be
used in conjuction with a relay unit to allow
connection to system control circuitry.
Adjustable from 0.0 to 10 Hz in 0.1 Hz steps.
* 49 FDT LEVEL
FREQUENCY DETECTION THRESHOLD 60
The signal is on when the output frequency
exceeds the detection level setting. This
is an open collector output and can be used
in conjuction with a relay unit to allow
connection to system control circuitry.
Adjustable from 0 to 400 Hz.
Far
Hyster
Far
Hyster
Far
Signal
t
