– 36 –

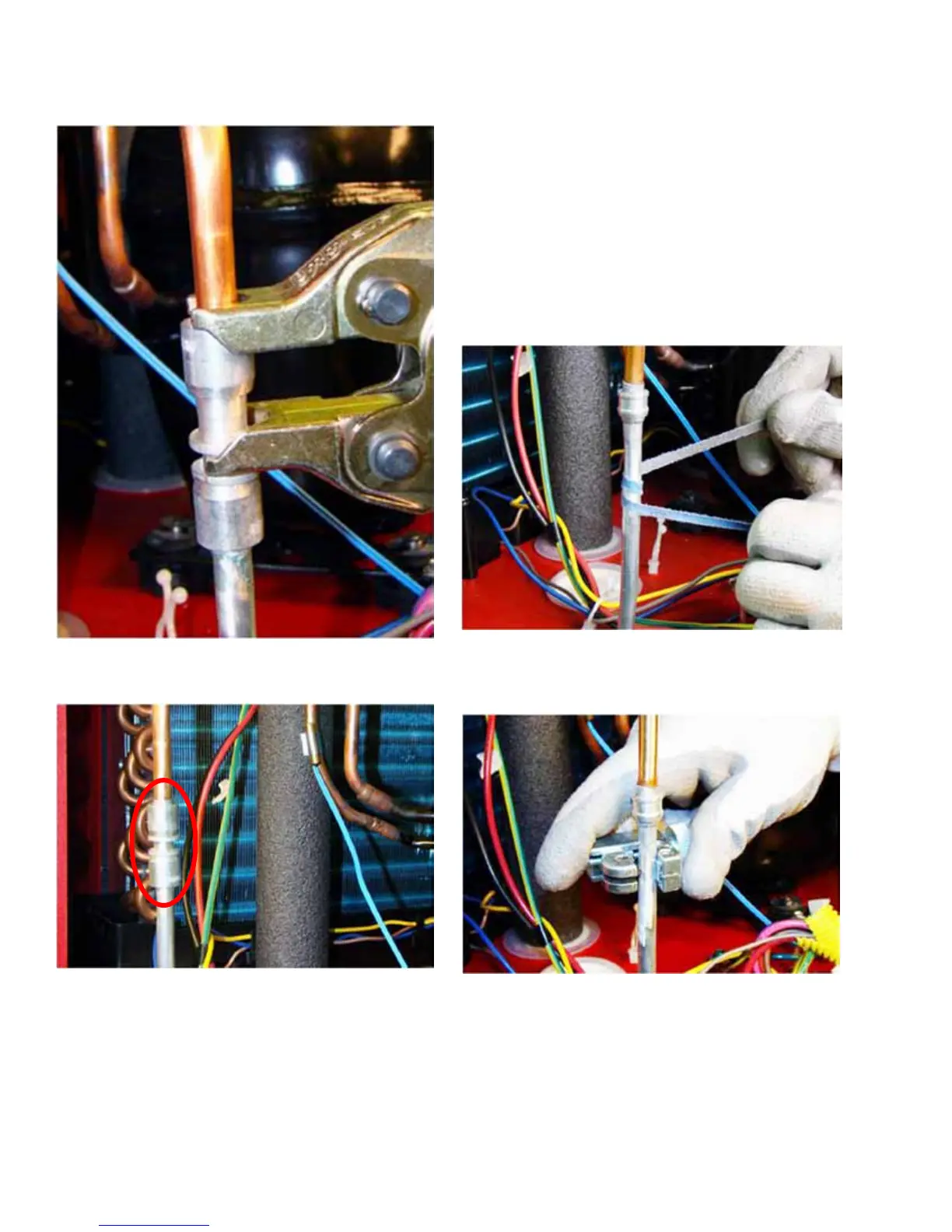

6. Crimp the upper section of the connector,
being careful not to bend or kink the aluminum
condenser tubing.
Crimped LOKRING Connector
Aluminum to Copper Tubing Repair Using
SwageLok Method
Note:
• LOKPREP not needed when using SwageLok
method.
• SwageLok part #WS86X10004
• To prevent creation of leak paths through
lengthwise groves, always clean tubing in a
rotory direction.
1. Clean tubing on both sides of the tting.
2. Cut below any scratches on the aluminum
tubing.
(Continued Next Page)
Note: Refer to Service Guide #31-9067 for additional
information using the LOKRING method.
