– 38 –

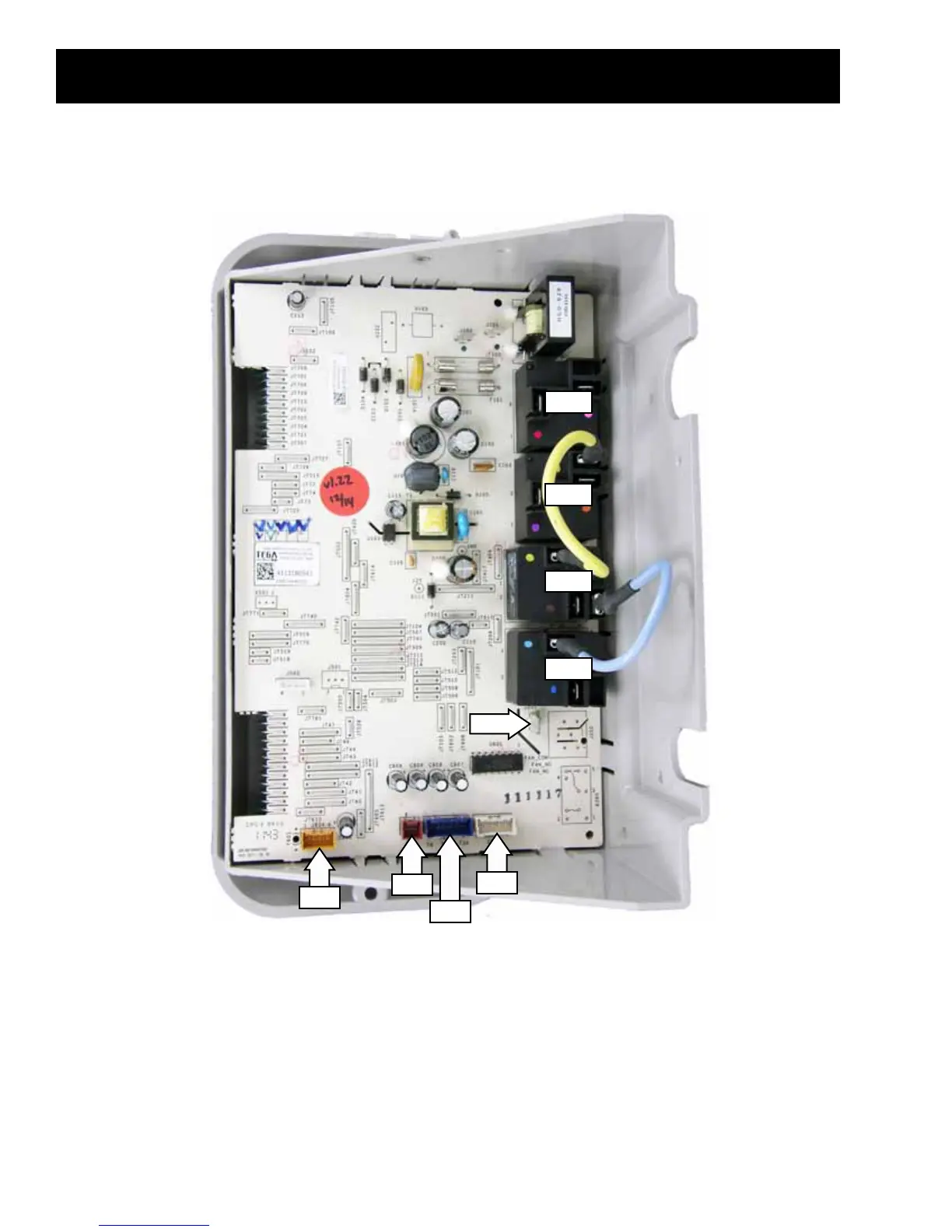

Control Boar
d
Circuit Boar
d Connections
J201
– Comp_No (Fan Motor)
J601
– T2 (Tank Sensor)
J602
– T4 (Compressor Outlet Sensor)
T3B (Evaporator Outlet Sensor)
T3A (Evaporator Inlet Sensor)
J603
– EEV (Electronic Expansion Valve)
J604
– T5 (Ambient Sensor)
K201
– DLB (Double Line Break)
K203
– UE (Upper Element)
K204
– LE (Lower Element)
K202
– Comp (Compressor)
K201
K203
K204
K202
J601
J201
J602
J603
J604
37
39
Table of Contents
Table of Contents
5
Nomenclature
6
Introduction
7
Technical Data
8
Overview
9
Temperature Chart
13
Heat Pump Mode
13
Hybrid Mode
14
Installation
18
Control Features
23
Component Locator Views
28
Refrigeration System
33
Sealed System Service Overview
34
Aluminum to Copper Tubing Repair
36
Circuit Board Connections
38
Machine Compartment Covers
39
Water Heater Components
39
To Remove Rear Shroud
41
To Remove Control Panel
42
Drain Valve
44
Element Covers
44
Temperature Sensors
44
Thermal Cutout (TCO)
48
To Replace Water Heater Electric Element
50
Elements
50
Anode Rod
53
Dip Tube
54
Evaporator Fan
54
To Remove Condensate Drain Pan
57
Single-Speed Compressor
58
Electronic Expansion Valve (EEV)
60
Service Diagnostic Mode
62
Schematic and Wiring Diagram
77
Warranty
78
