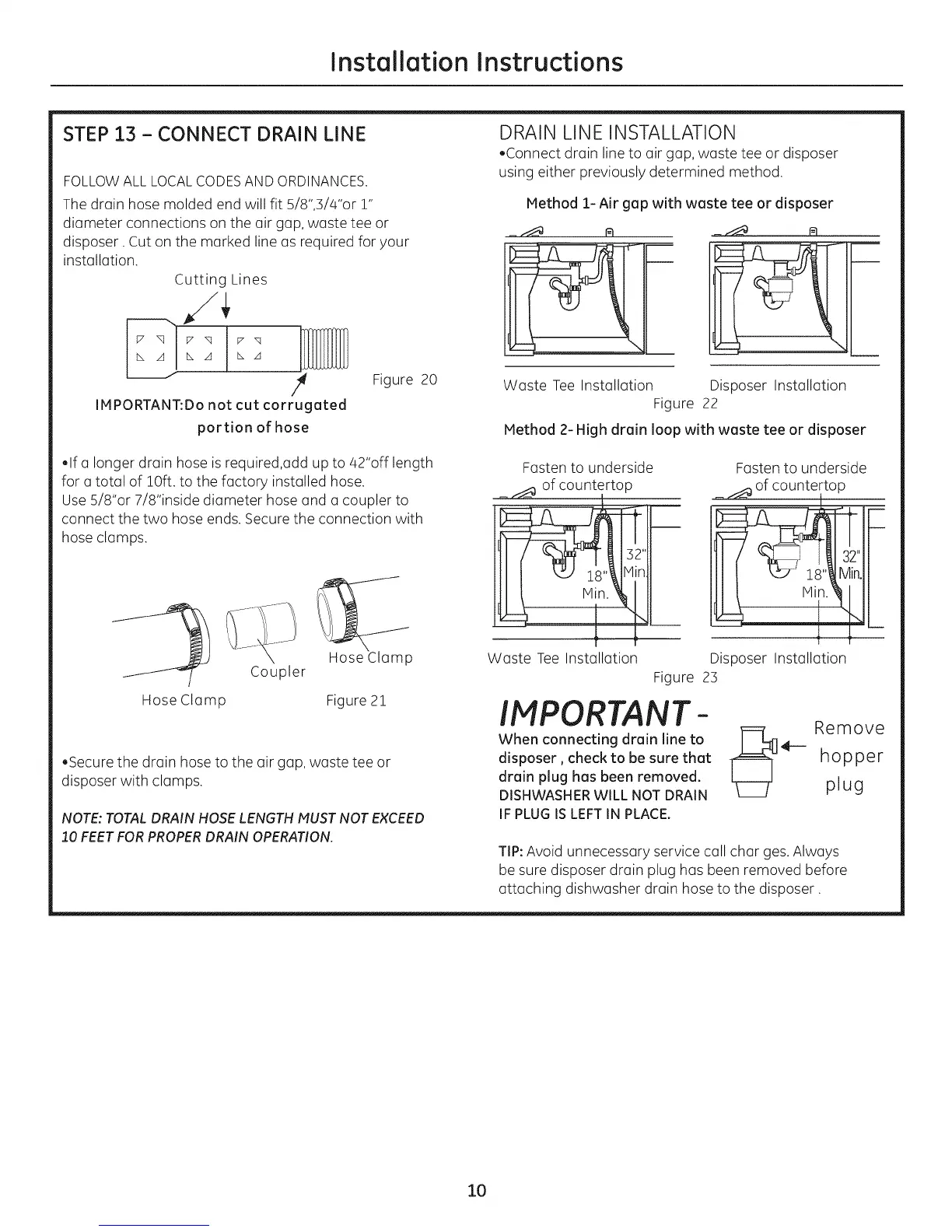

Installation Instructions
STEP 13 - CONNECT DRAIN LINE
FOLLOW ALL LOCAL CODES AND ORDINANCES.
DRAIN LINE INSTALLATION
.Connect drain line to air gap, waste tee or disposer
using either previously determined method.
The drain hose molded end will fit S/8",3/4"or 1"
diameter connections on the air gap, waste tee or
disposer. Cut on the marked line as required for your
installation.
Cutting Lines
J,
_x A ex A
#
IN PORTANT:Do not cut corrugated
portion of hose
Figure 20
Method i- Air gap with waste tee or disposer
Waste Tee Installation Disposer Installation
Figure 22
Method 2- High drain loop with waste tee or disposer
.If a longer drain hose is required,add up to 42"off length
for a total of 10ft. to the factory installed hose.
Use 5/8"or 7/8"inside diameter hose and a coupler to
connect the two hose ends. Secure the connection with
hose clamps.
Hose Clamp
Coupler
Figure 21
.Secure the drain hose to the air gap, waste tee or
disposer with clamps.
NOTE: TOTAL DRAIN HOSE LENGTH MUST NOT EXCEED
10 FEET FOR PROPER DRAIN OPERATION.
Fasten to underside
_ _ of countertop,
32"
f
Waste Tee Installation
Figure 23
IMPORTANT -
When connecting drain line to
disposer, check to be sure that
drain plug has been removed.
DISHWASHERWILL NOT DRAIN
IFPLUGISLEFTIN PLACE.
Fasten to underside
_ of countertop
1
Disposer Installation
[_ Remove
hopper
plug
TiP: Avoid unnecessary service call char ges, Always
be sure disposer drain plug has been removed before
attaching dishwasher drain hose to the disposer.
10
