Installation Instructions

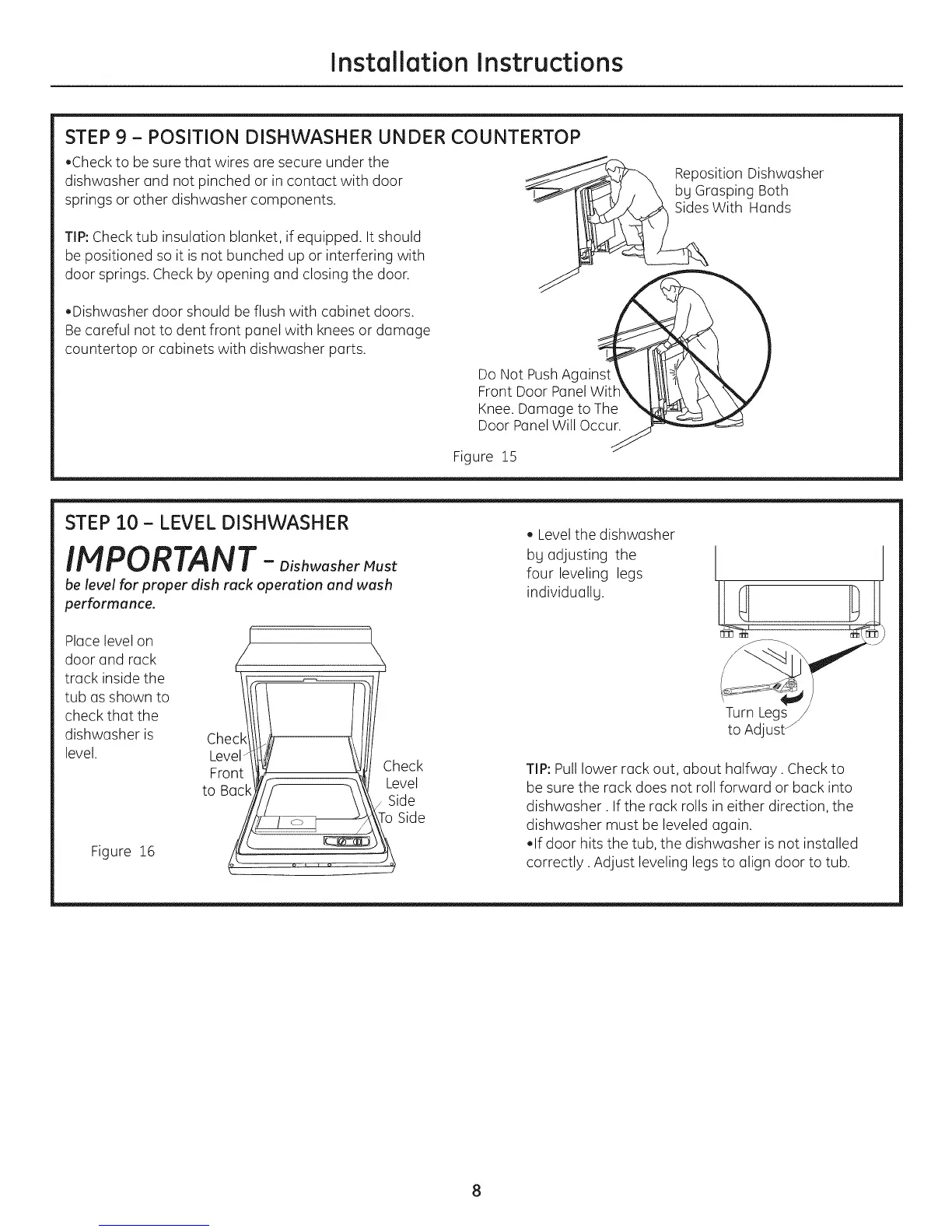

STEP 9 - POSITION DISHWASHER UNDER COUNTERTOP
.Check to be sure that wires are secure under the
dishwasher and not pinched or in contact with door
springs or other dishwasher components.
TIP:Check tub insulation blanket, if equipped. It should
be positioned so it is not bunched up or interfering with
door springs. Check by opening and closing the door.
.Dishwasher door should be flush with cabinet doors.
Becareful not to dent front panel with knees or damage
countertop or cabinets with dishwasher ports.
Do Not PushAguinst_
Front Door Panel W_thX
Knee. Damage to The
Door PanelWill Occur.
Figure 15
Reposition Dishwasher
/ _ \ by Grasping Both
With Hands
STEP iO - LEVEL DISHWASHER
IMPORTANT- oishwosher.us,
be level for proper dish rack operation and wash
performunce.
Place level on
door and rack
truck inside the
tub us shown to
check that the
dishwasher is
level.
/
Checl
Level-_
Front
to Back
Figure 16
Check
Level
Side
Side
• Level the dishwasher
by adjusting the
four leveling legs
individually.
Turn Legs /
to Adjust_
TIP: Pull lower rack out, about halfway. Check to
be sure the rack does not roll forward or back into
dishwasher. If the rack rolls in either direction, the
dishwasher must be leveled again.
.If door hits the tub, the dishwasher is not installed
correctly. Adjust leveling legs to align door to tub.
To Next Page
