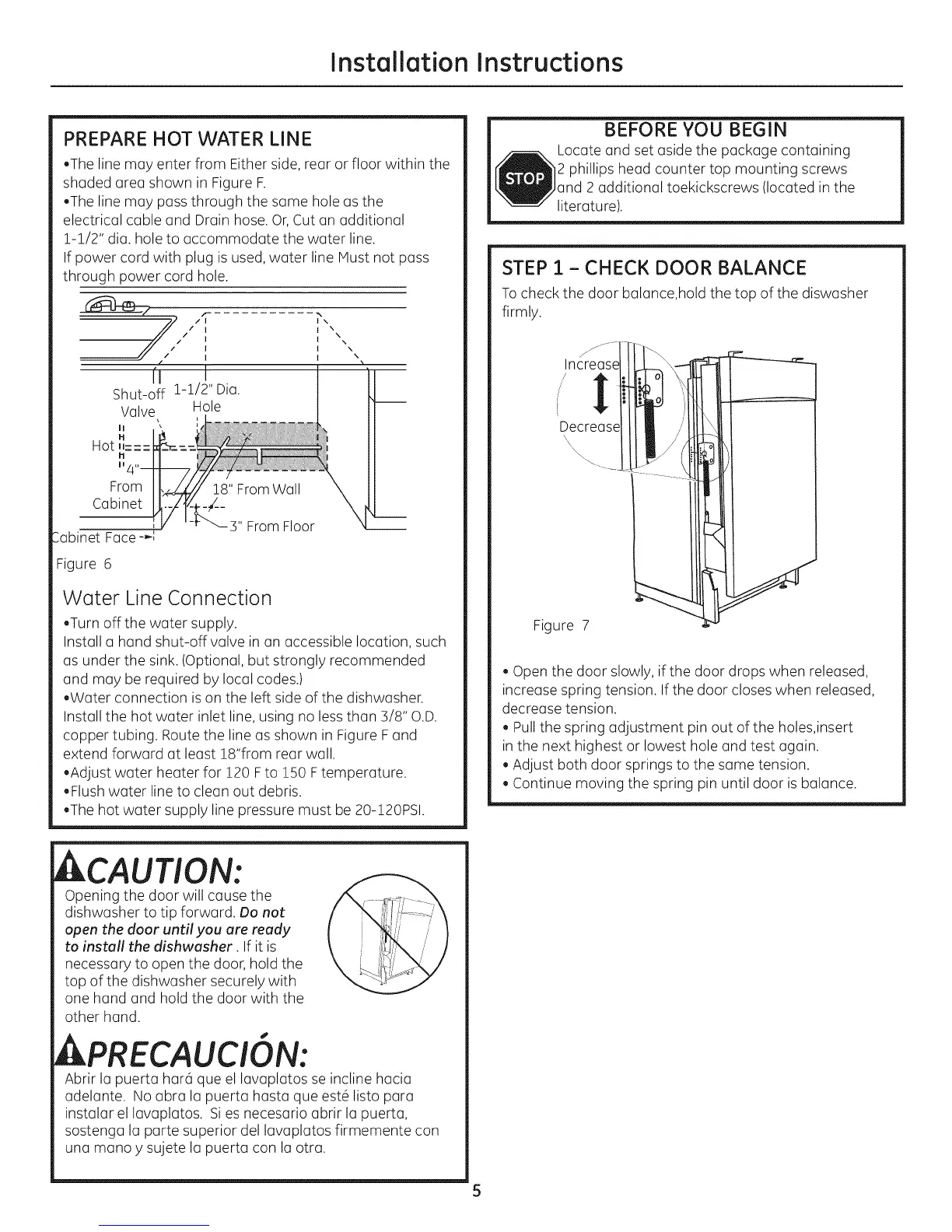

(nsta((ation (nstructions
PREPARE HOT WATER LINE
.The line may enter from Either side, rear or floor within the
shaded area shown in Figure F.
.The line may pass through the same hole as the
electrical cable and Drain hose. Or,Cut an additional
1-1/2" diG.hole to accommodate the water line.
If power cord with plug is used, water line Hust not pass
through power cord hole.
//',,,i
I I
/ I I
f( I l
Shut-off 1-1/2" Die. 1
Valve Hole |
u ,
k
Hot n=== 5r-_=
ml (i
Jl/_.
From ,,J..,(.// 18' From Wall
Cabinet ./IZL_-_
, .-r __y, From Floor
:abinet Face---,
t \
\
\\
Figure 6
Woter Line Connection
.Turn off the water supply.
Install a hand shut-off valve in an accessible location, such
as under the sink. (Optional, but strongly recommended
and may be required by local codes.)
.Water connection is on the left side of the dishwasher.
Install the hot water inlet line, using no less than 3/8" O.D.
copper tubing. Route the line as shown in Figure F and
extend forward atleast 18"from rear wall.
.Adjust water heater for 120 Fto 150 Ftemperature.
.Flush water line to clean out debris.
.The hot water supply line pressure must be 20-120PSI.
BEFORE YOU BEGIN
Locate and set aside the package containing
2 phillips head counter top mounting screws
2 additional toekickscrews (located in the
literature).
STEP 1 - CHECK DOOR BALANCE
Tocheck the door balance,hold the top of the diswasher
firmly.
!ncr e
Decreas tII
Figure 7
. Open the door slowly, if the door drops when released,
increase spring tension. If the door closes when released,
decrease tension.
. Pullthe spring adjustment pin out of the holes,insert
in the next highest or lowest hole and test again.
. Adjust both door springs to the same tension.
. Continue moving the spring pin until door is balance.
,&CAUTION:
Opening the door will cause the
dishwasher to tip forward. Do not
open the door until you ere reedy
to install the dishwasher. If it is
necessary to open the door, hold the
top of the dishwasher securely with
one hand and hold the door with the
other hand.
APRECAUCION:
Abrir la puerta har5 que el lavaplatos se incline hacia
adelante. No abra la puerta hasta que est6 listo para
instalar el lavaplatos. Sies necesario abrir la puerta,
sostenga la parte superior del lavaplatos firmemente con
una mano y sujete la puerta con la otra.
5
To Next Page
