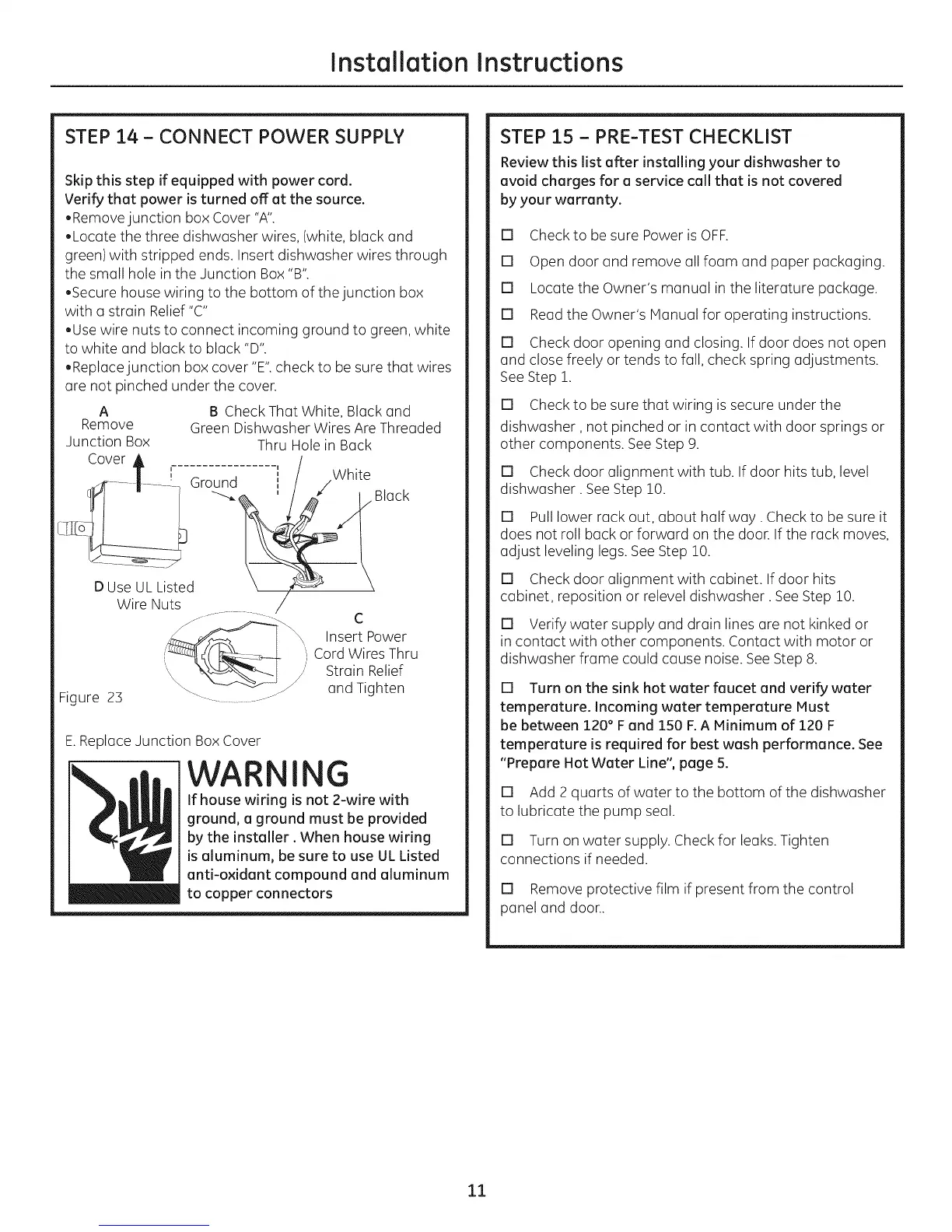

Installation Instructions
STEP 14- CONNECT POWER SUPPLY
Skip this step if equipped with power cord.
Verify that power is turned off at the source.
,Remove junction box Cover "A'.
,Locate the three dishwasher wires, (white, black and
green) with stripped ends. Insert dishwasher wires through
the small hole in the Junction Box "B'.
,Secure house wiring to the bottom of the junction box
with a strain Relief "C"
.Use wire nuts to connect incoming ground to green, white
to white and black to black "D'.
.Replace junction box cover "E'. check to be sure that wires
are not pinched under the cover.
A B Check That White, Black and
Remove Green Dishwasher Wires Are Threaded
Junction Box Thru Hole in Back
Cover _ I-
_[_[o__LL] GroundI /White
Black
D Use UL Listed
Wire Nuts
Figure 25
C
_ Insert Power
CordW resThru
Strain Relief
and Tighten
E.Replace Junction BoxCover
WARNING
If house wiring is not 2-wire with
ground, o ground must be provided
by the installer. When house wiring
is aluminum, be sure to use UL Listed
onti-oxidont compound ond oluminum
to copper connectors
STEP 15 - PRE-TEST CHECKLIST
Review this list after installing your dishwasher to
ovoid charges for o service call that is not covered
by your warranty.
[] Check to be sure Power is OFF.
[] Open door and remove all foam and paper packaging.
[] Locate the Owner's manual in the literature package.
[] Readthe Owner's Manual for operating instructions.
[] Check door opening and closing. If door does not open
and close freely or tends to fall, check spring adjustments.
See Step !.
[] Check to be sure that wiring is secure under the
dishwasher, not pinched or in contact with door springs or
other components. See Step 9.
[] Check door alignment with tub. If door hits tub, level
dishwasher. See Step 10.
[] Pull lower rack out, about half way. Check to be sure it
does not roll back or forward on the door. If the rack moves,
adjust leveling legs. See Step !0.
[] Check door alignment with cabinet. If door hits
cabinet, reposition or relevel dishwasher. SeeStep 10.
[] Verify water supply and drain lines are not kinked or
in contact with other components. Contact with motor or
dishwasher frame could cause noise. See Step 8.
[] Turn on the sink hot water faucet and verify water
temperature. Incoming water temperature Must
be between 120" Fand 150 F.A Minimum of 120 F
temperature is required for best wash performance. See
"Prepare Hot Water Line", page 5.
[] Add 2 quarts of water to the bottom of the dishwasher
to lubricate the pump seal.
[] Turn on water supply. Check for leaks. Tighten
connections if needed.
[] Remove protective film if present from the control
panel and door..
11
