– 18 –

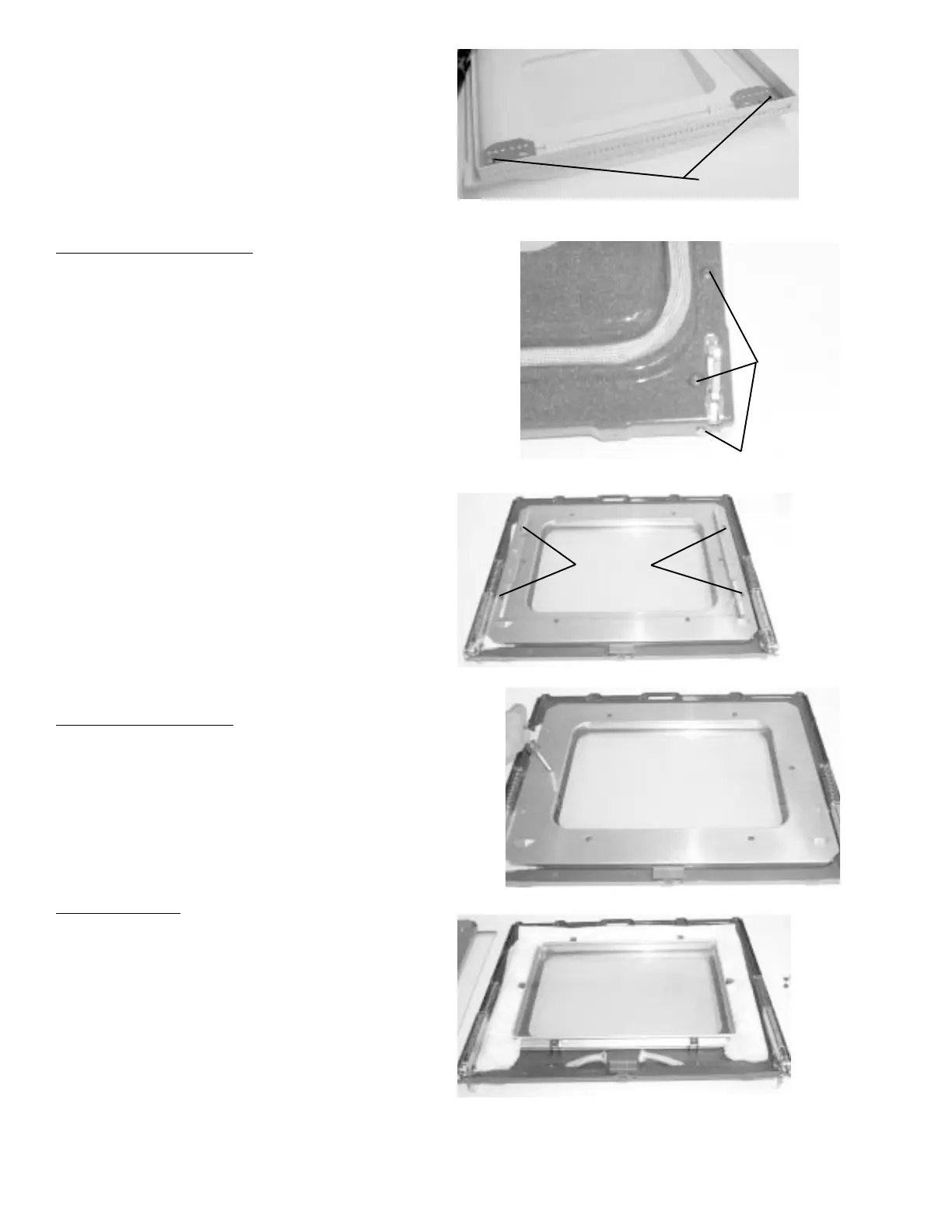

3. Remove 2 screws from each side of the door
on the liner.
4. Separate the liner assembly and the outer glass
assembly.
5. Remove 2 screws from the door handle near
the door vent trim.
6. Reassemble in reverse order.
To replace liner assembly:
1. Remove 3 screws on each side of the door liner
to remove the door hinge assembly.
2. Remove 4 screws from the insulation retainer.
3. Remove 6 screws and the insulation retainer.
The window pack and window gasket are now
accessable on units with a window door.
Caution: Care must be taken when mounting door
handle not to overtighten screws. Overtightening
screws can strip the threads in the plastic handle.
Hand-tighten ONLY. Make sure handle fits snug
to door panel.
Oven Door Gasket
The gasket forms a seal around the front edge of
the oven liner and the inner door panel, except for
approximately a 6-in. opening at the center bottom.
The gasket is attached to the inner door panel by a
chain of spring clips.
To remove door gasket:
1. Open the door completely.
2. Pull the end of the gasket out of the slots at the
bottom of the door.
3. Finish removing the gasket by placing a finger
under the gasket beside the clip and pulling
straight up.
To install gasket:
1. Locate the 2 clips on the gasket just right and
left of center.
Note: The gasket will go on easier if folded
90 degrees at the clip being inserted.
2. Place a finger on top of the spring clip and press
into the 2 center top holes in the inner door
panel.
2 Screws
Window
Pack and
Gasket
6 Screws
4 Screws
3 Screws
To Next Page
