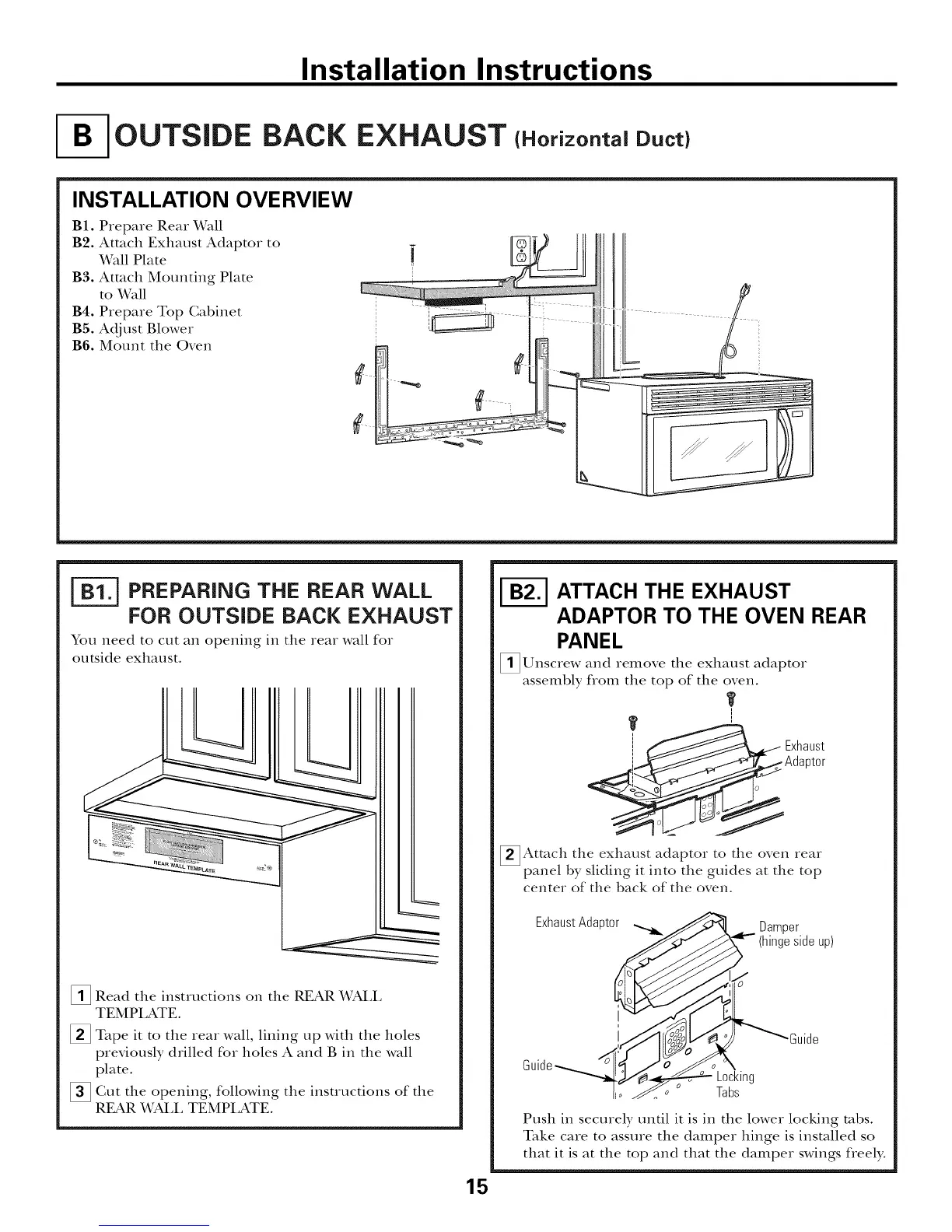

Installation Instructions
OUTSIDE BACK EXHAUST (Hori-ontalDuct)
INSTALLATION OVERVIEW
B1. Prepare Rear Wall
B2. Attach Exhaust Adaptor to
Wall Plate
B3. Attach Mounting Plate
to Wall
B4. Prepare Top Cabinet
BS. Adjust Blower
B6. Mount tile Oven
r_ PREPARING THE REAR WALL
FOR OUTSIDE BACK EXHAUST
You need to cut an opening in tile rear wall for
outside exhaust.
[]Read tile instructions on tile REAR WAI,I,
TEMPI ,ATE.
[]Tape it to tile rear wall, lining tap with tile holes
previously drilled for holes A and B in tile wall
plate.
_Cut tile tile instructions of tileopening, following
REAR WAI,I, TEMPI,ATE.
ATTACH THE EXHAUST
ADAPTOR TO THE OVEN REAR
PANEL
_Unscrew and remove tile exhaust adaptor
assembly flom tile top of tile oven.
I
_Atmch tile exhaust adaptor to tile oven rear
panel by sliding it into the guides at the top
center of the back of tile oven.
ExhaustAdaptor
Guide--__
o o
Damper
_.w/_ _ (hingesideup)
_"'"__ Guide
Locking
Tabs
Push in securely until it is in tile lower locking tabs.
Take care to assure tile damper hinge is installed so
that it is at tile top and that tile damper swings fieely.
15
