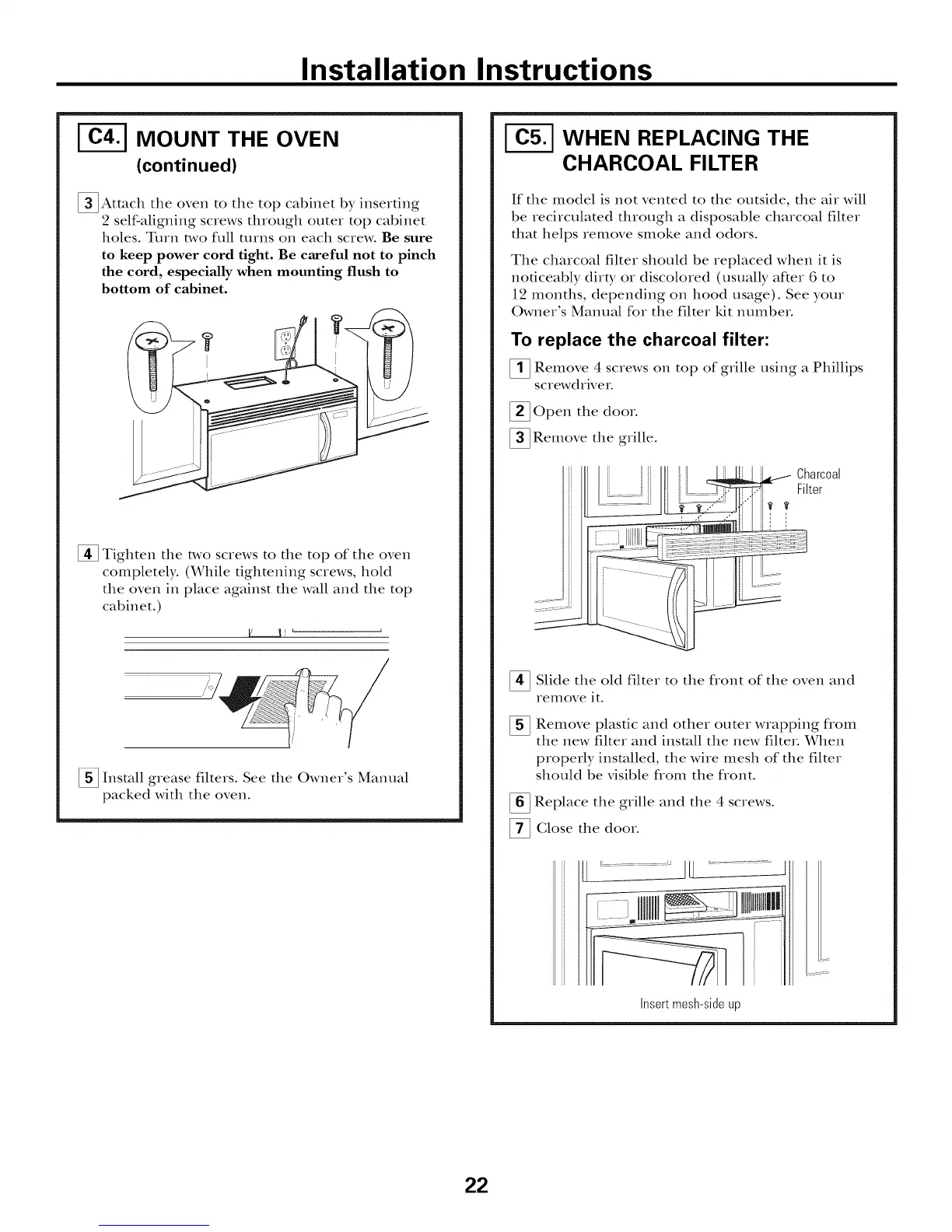

Installation Instructions
I-_ MOUNT THE OVEN
(continued)
_Atmch the oven to the top cabinet by inserting
2 self-aligning screws through outer top cabinet
holes. Turn two full turns on each screw. Be sure
to keep power cord tight. Be careful not to pinch
the cord, especially when mounting flush to
bottom of cabinet.
[] Tighten the two screws to the top of the oven
completely. (While tightening screws, hold
the oven in place against the wall and the top
cabinet.)
)
[] Install grease filters. See the Owner's Manual
packed with the oven.
I-_ WHEN REPLACING THE
CHARCOAL FILTER
If the model is not vented to the outside, the air will
be recirculated through a disposable charcoal filter
that helps remove smoke and odors.
The charcoal filter should be replaced when it is
noticeably dirty or discolored (usually after 6 to
12 months, depending on hood usage). See your
Owner's Manual for the filter kit number.
To replace the charcoal filter:
[] Remove 4 screws on top of grille using a Phillips
screwdriveL
_Open the dooL
[] Remove the grille.
L L_: i Charcoal
Filter
I
_ Slide the old filter to the fiont of the and
oven
remove it.
_ Remove plastic and other outer wrapping flom
the new filter and install the new filteL _qlen
properly installed, the wire mesh of the filter
should be visible flom the flont.
Replace the grille and the 4 screws.
_ Close the door.
Insert mesh-side up
22
