Chapter 2: Installation
Kilsen KFP-CF Series Installation Manual 5
Cabinet layout for eight-zone control panels

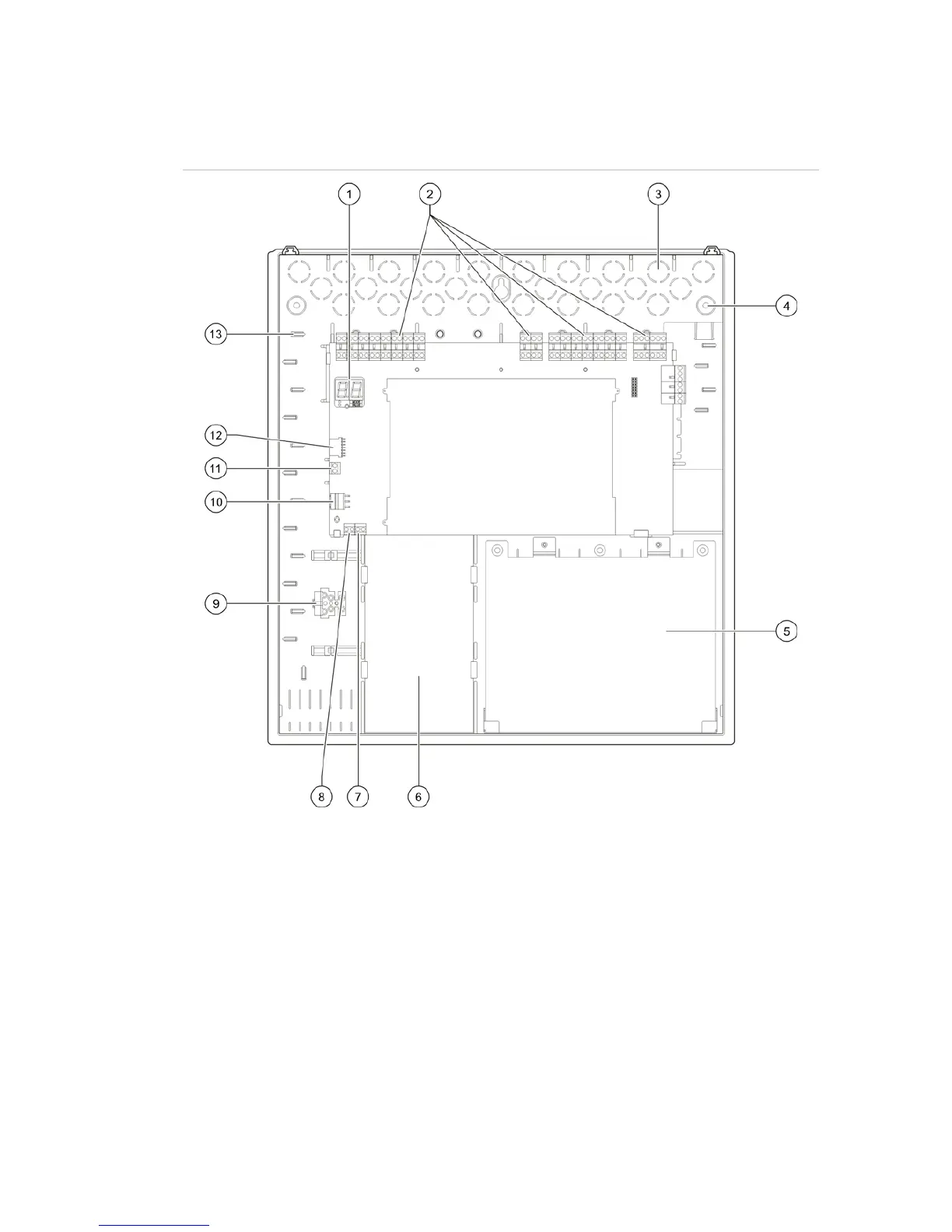

Figure 2: Cabinet layout for eight-zone control panels
1. Seven-segment display
2. Zone and system connectors
3. Cable knockouts
4. Mounting screw knockouts
5. Battery area
6. Power supply unit
7. Key connector
8. Alarm counter connector
9. Fuse terminal block
10. Power supply connector
11. Battery connector
12. Expansion module connector
13. Cable holder
Note: The alarm counter and key connectors are only included on selected regional
models.
