Dishwasher Installation
15
STEP 23: REPLACE TOEKICK
• Place toekick against the legs of the dishwasher.
Figure AH
Attachment
Screws
Toekick
• Align the toekick with the bottom edge and make sure it is
DJDLQVWWKHÀRRU
• Insert and tighten the 2 toekick attachment screws. The
WRHNLFNVKRXOGVWD\LQFRQWDFWZLWKWKHÀRRU
Tip: Reduce sound from under the dishwasher. Make sure
toekick is against floor.
STEP 25: LITERATURE
• Be sure to leave complete literature package, these
Installation Instructions and product samples and/or coupons
with the consumer.
STEP 24: CHECK THE FOLLOWING
• Tub trim does not interfere with the door
• Dishwasher is square and level at both the top and bottom of
the cabinet opening, with no twisting or distortion of the tub
or door
$OOOHJVRIWKHGLVKZDVKHUDUH¿UPO\LQFRQWDFWZLWKWKHÀRRU
• Drain hose is not pinched between the dishwasher and
DGMDFHQWFDELQHWVRUZDOOV
7XEWULPLVIXOO\VHDWHGRQWKHWXEÀDQJH

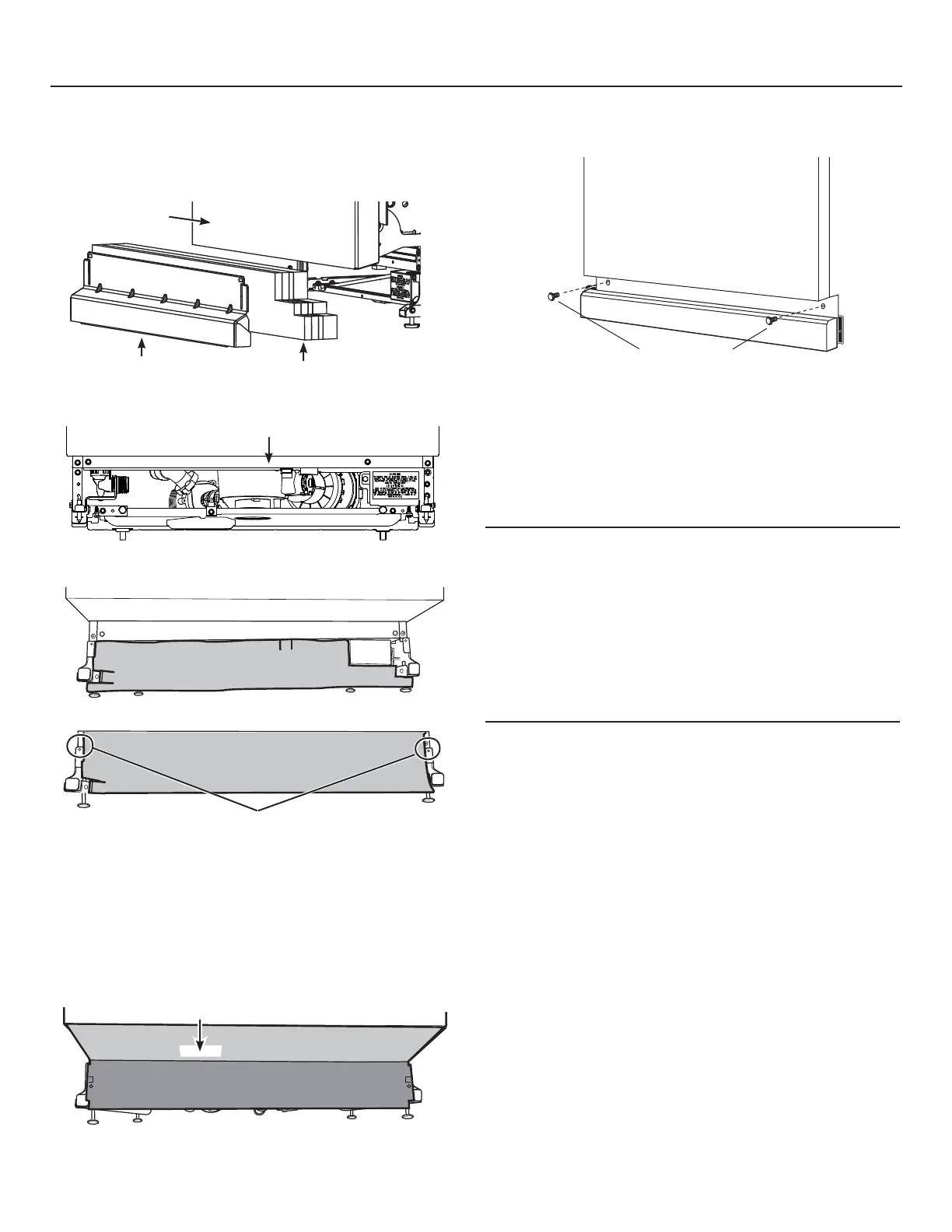

STEP 22:
POSITION SOUND INSULATION
PIECE (on some models)
• Locate the sound insulation package inside the dishwasher.
• Stand the parts upright as shown.
• Locate the control box.
• Push insulation block portion under the dishwasher until it is
beneath the control box.
• Push the panel portion up to the front of the block.
• Tuck the sides of the front panel behind the toekick
attachment screw holes.
• Open door all the way, if the door doesn’t stay fully open,
DGMXVWWKHLQVXODWLRQSDQHO
• Align the screw holes with the screw holes on the legs of the
dishwasher.
• Ensure vent opening is not blocked by insulation.
Control Box
Figure AG
Figure AH
Push the sides of the insulation behind
the toekick attachment screw holes
(on some models)
Toekick
Insulation Block
(On some models.)
Dishwasher
Door
Figure AF
Vent opening
Location and appearance will vary
