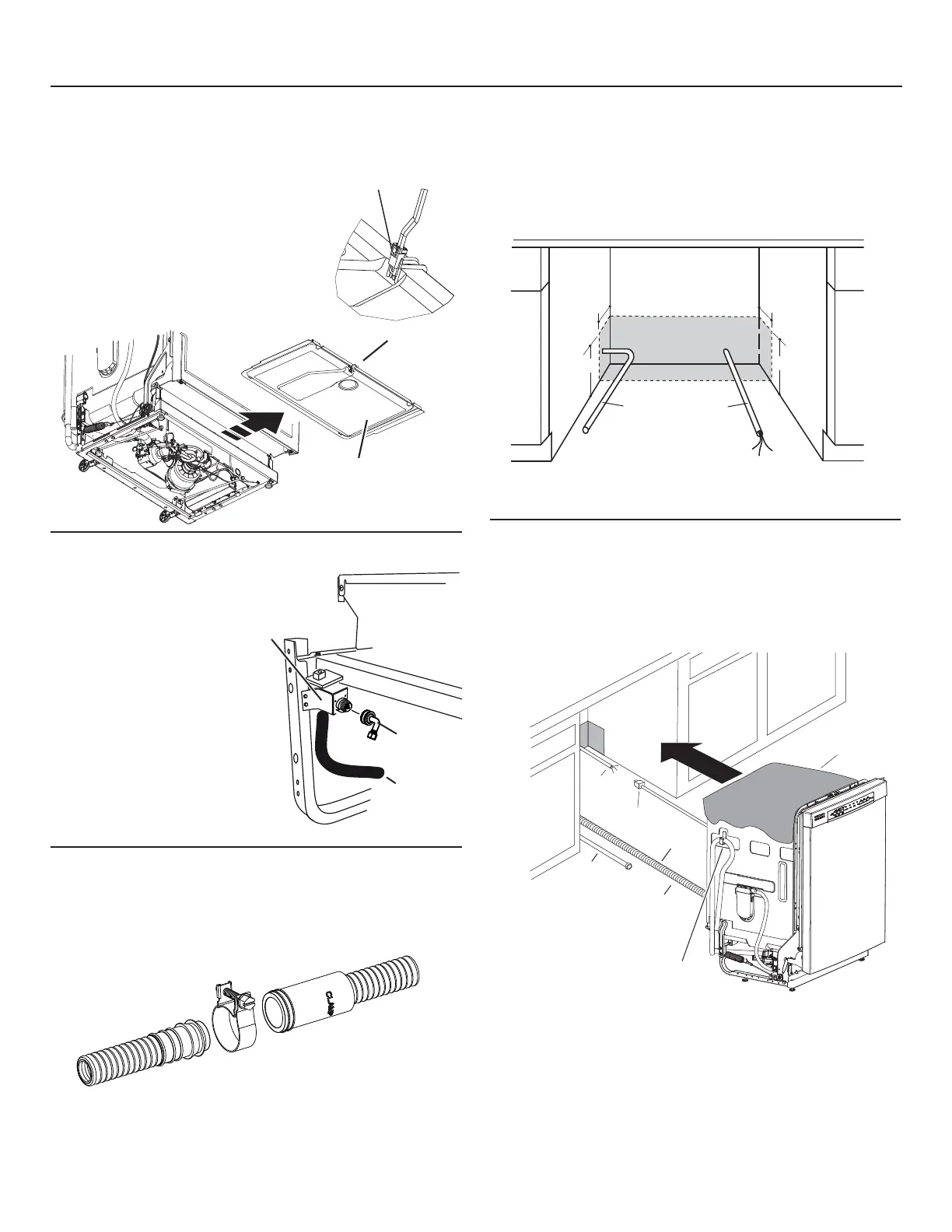

STEP 7: INSTALL DRAIN HOSE TO DRAIN
LOOP
Connect drain loop end to drain hose using the screw clamp
as shown in the figure.
STEP 6: INSTALL 90° ELBOW
• Thread 90° elbow
onto the water valve.
Ensure rubber gasket
is located between
valve and elbow.
• Do not overtighten
elbow. Water valve
bracket could
bend or water valve
fitting could break.
• Position the end of
the elbow to face the
rear of the dishwasher.
STEP 5: IF NECESSARY, REMOVE FLOOR
PROTECT PAN (on some models)
• Disconnect leak sensor wire
(on some models).
• Pull floor protect pan forward and slide
it from under the dishwasher.
• Set aside for use in Step 21.
Dishwasher Installation
7
Figure N
STEP 9:
INSTALL DRAIN HOSE,
THROUGH CABINET
• Position dishwasher in front of cabinet opening. Insert drain
hose into the hole in cabinet side. If a power cord is used,
guide the end through a separate cabinet opening.
STEP 8: POSITION WATER LINE
AND HOUSE WIRING
• Position water supply line and house wiring on the floor of
the opening to avoid interference with base of dishwasher
and components under dishwasher.
Figure O
Water
Line
House
Wiring
4"
4"
6"
6"
7LS3UHYHQWXQQHFHVVDU\VHUYLFHFDOOFKDUJHVIRU¿OOGUDLQ
or noise concerns.
Position utility lines so they do not interfere with anything
under or behind the dishwasher.
Figure M
Water Valve
Bracket
90° Elbow
Fill Hose
Front of dishwasher
NOTE: The high drain loop on the side of the tub is designed for
better wash performance. Do not remove from the side of the tub.
Squeeze connector at top
to release snap feature
Figure P
House
Wiring
Power Cord
(If used)
Drain
Hose
Water
Line
Insulation
Blanket
Ensure drain hose is not
twisted or pinched
Maximum drain hose
length is 15'
Do not disconnect or remove high
drain loop from left side of dishwasher
Floor Protect Pan
Leak Sensor
Figure L
To Next Page
