GE PDT855SSJSS - Installation Preparation; Materials You will Need; Tools You will Need

TOOLS YOU WILL NEED:
• Phillips-head screwdriver
• 1/4" and 5/16" nutdriver
• $GMXVWDEOHZUHQFK
• Level
• Carpenter's square
• Measuring tape
• Safety glasses
• Flashlight
• %XFNHWWRFDWFKZDWHUZKHQÀXVKLQJWKHOLQH
• 15/16" socket (optional for skid removal)
• Gloves
• Pliers
For New Installations Only:
• Tubing cutter
• Drill and appropriate bits
• Hole saw set
Hot Water Line
Hole Saw Set
Level
Strain Relief
Drain Hose
Hose Clamp
#8 Hex-Head Mounting
Bracket Screws
1/4" and 5/16"
Nutdriver
15/16" Socket
Bucket
Tubing Cutter
Drill and Bits
Flashlight
Gloves
Phillips-Head
Screwdriver
Carpenter's
Square
6"
Adjustable
Wrench
Safety Glasses
Pliers
Installation Preparation
2
Drain Hose Hanger
Measuring Tape

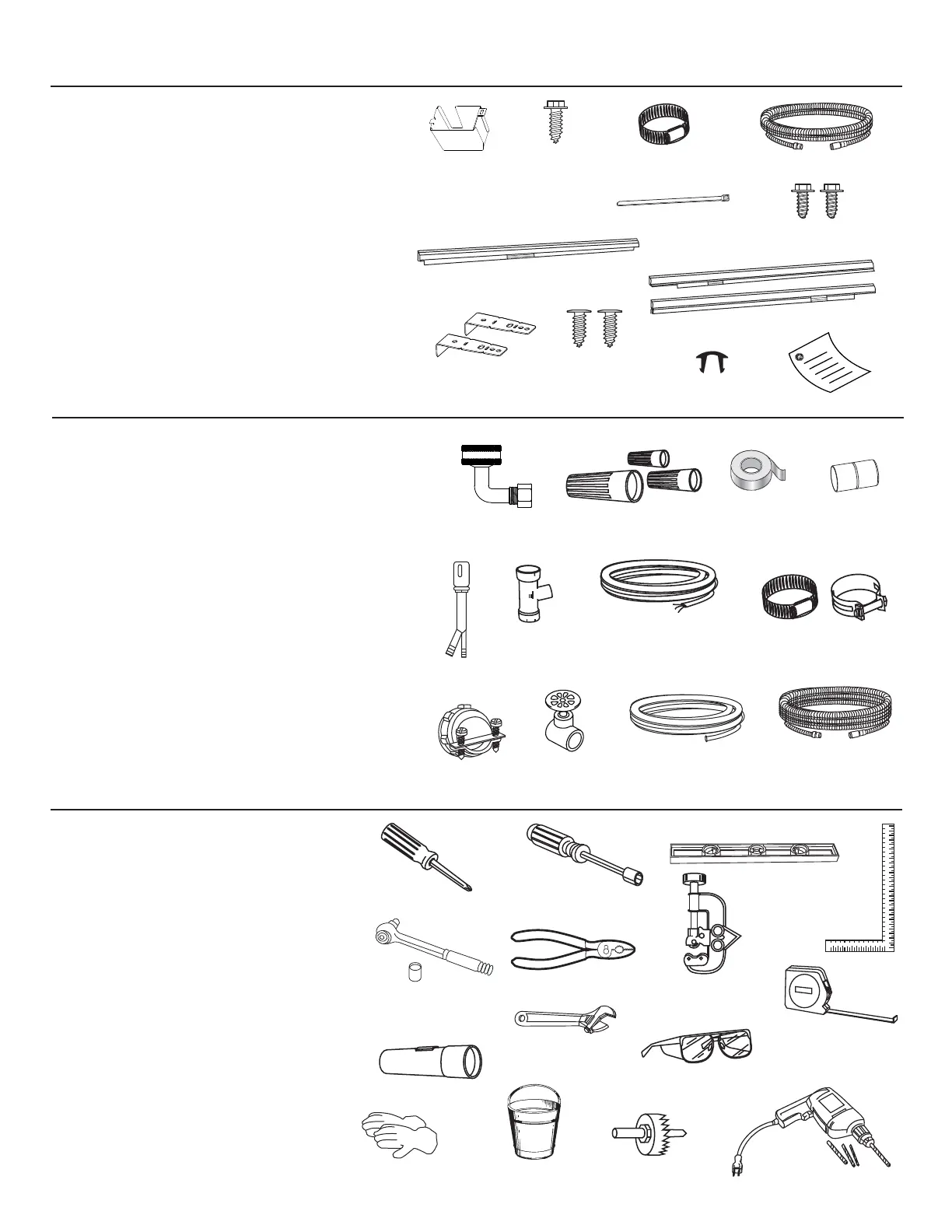

PARTS SUPPLIED
IN INSTALLATION PACKAGE:
• Junction box cover and #10 hex-head screw
• Hose clamp
• Drain hose (approximately 58" long)
• Drain hose hanger
• 2 #8-18 hex head screws to secure brackets to washer
tub frame
• 1 top trim piece (on some models)
• 2 side trim pieces
• 2 mounting brackets for wood countertops or side
cabinets
• 2 #8-18 x 5/8" Phillips special head screws, to secure
dishwasher to underside of countertop or to side
cabinets
• Literature, samples and/or coupons
MATERIALS YOU WILL NEED:
• 90° elbow (3/4"hose internal thread on one end,
opposite end sized to fit water supply)
• UL-listed wire nuts (3)
• Masking Tape
Materials Needed for New Installations:
• Air gap for drain hose, if required
• Waste tee for house plumbing, if applicable
• Electrical cable or Power Cord Kit WX09X70910 (5.4 Ft)
or WX09X70911 (7.9 ft) depending on your installation.
• Screw-type hose clamps
• Strain relief for electrical connection
• Hand shut-off valve (recommended)
• Hot Water Line–3/8" minimum, copper tubing
(including ferrule, compression nut) or GE Part #
WX28X326, flexible braided hose.
• WD24X10065 drain hose (12' long), if needed
Junction
Box Cover
#10
Hex-Head
Junction
Box Screw
1/2" long
Optional
12' Drain Hose
WD24X10065
Hose Clamps
Waste Tee
Electrical Cable
(or Power Cord, if applicable)
Wire Nuts (3)
Mounting
Brackets
#8 Phillips
Special
Head Screws
5/8" long
Literature
90°Elbow
Top Trim Piece
(on some models)
Side Trim Pieces
Coupler for
optional drain
hose
Hand
6KXW2ȹ
Valve
Air Gap
Plug Buttons
Masking Tape
(if applicable)
