Dishwasher Installation

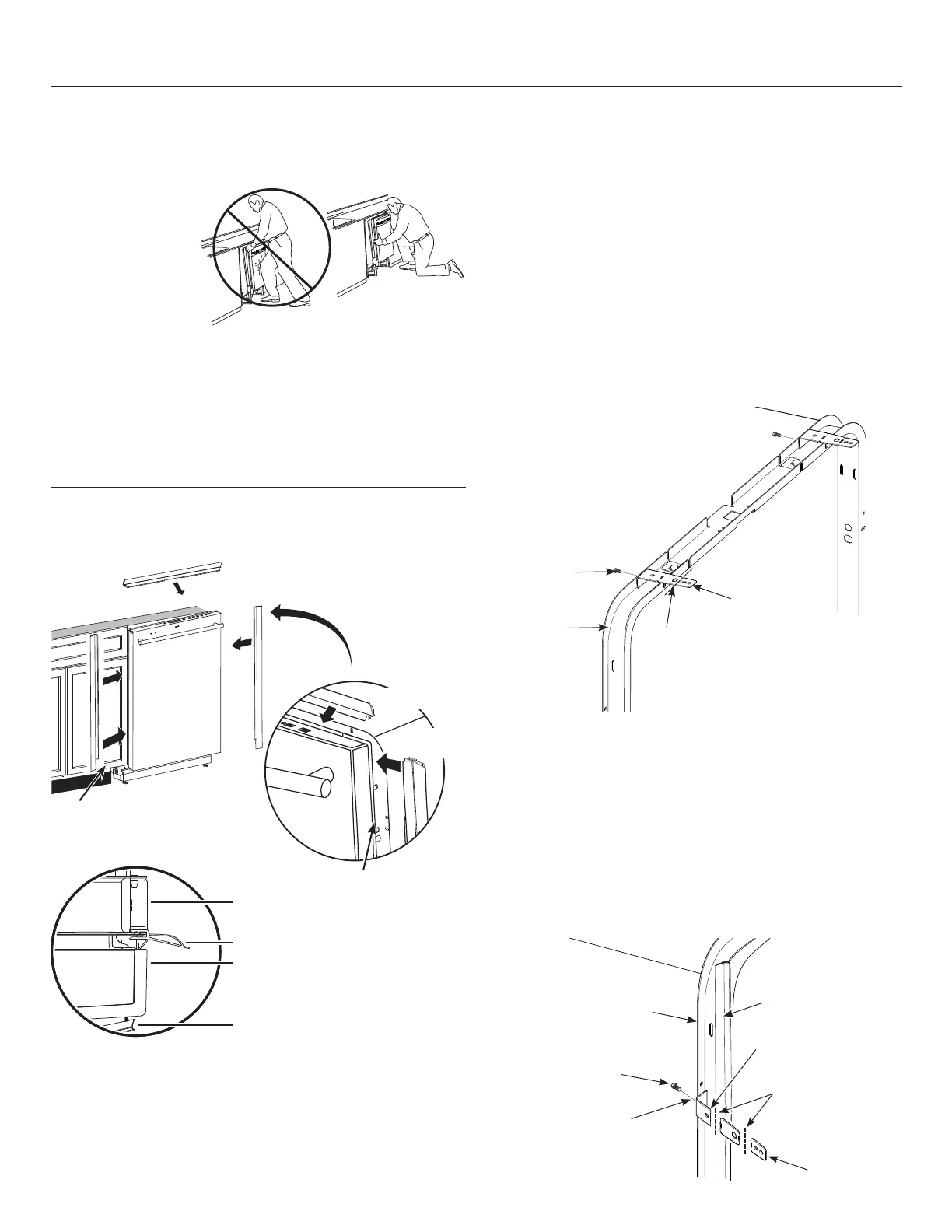

STEP 10: SLIDE DISHWASHER THREE-FOURTHS

OF THE WAY INTO CABINET

IMPORTANT – Do not push against front panel with

knees. Damage will occur.

• Grasp the sides of the

front panel and slide

dishwasher into the

opening a few inches

at a time.

• As you proceed, pull the drain hose through the opening under the

sink. Stop pushing when the dishwasher extends about 6 inches

IRUZDUGRIDGMDFHQWFDELQHWV

• Make sure drain hose is not kinked under or behind the dishwasher.

• Make certain the house wiring, drain line and water line do not

interfere with components under dishwasher.

STEP 11: INSTALL TRIM PIECES

In this step you will need the trim pieces set aside in Step 1.

STEP 12: INSTALL MOUNTING BRACKETS

You will need the mounting brackets and 2 #8 hex-head screws set

aside in Step 1.

You must install the mounting brackets onto the dishwasher tub

frame top or sides prior to sliding the dishwasher into place under

the countertop. This dishwasher is capable of a true-flush installation

at a 24” deep opening. The mounting brackets have several

available attachment positions to accommodate different cabinet

constructions.

Install mounting brackets on top if the underside of

countertop is wood or wood-like material that accepts screws:

IMPORTANT - After installing brackets and before

FORVLQJWKHGLVKZDVKHUGRRUDGMXVWWKHEUDFNHWVE\EHQGLQJ

them up as needed, so that they do not contact the top of the

dishwasher door and cause damage.

• If you are installing the dishwasher under a counter with a short

overhang, the countertop brackets may extend beyond the edge

of the counter. If this is the case, remove the excess length by

repeatedly bending the brackets at the front notch only until they

break.

Install mounting brackets on sides if the countertop is

granite or similar material that will not accept wood screws:

%UHDNRȺIURQWSRUWLRQRIWKHWDEZLWKSOLHUVDWWKHORFDWLRQVKRZQ

prior to attaching to dishwasher.

• Position the left-hand side bracket as shown. Repeat with the right

bracket.

Dishwasher

tub frame

#8 Bracket

Screw

Bracket

Bend and break here

after installing if

counter has a short

overhang.

Top Mounting

• Select the top trim piece (See Figure R) and line up center to the top

ODWFK3UHVVWKHWULPSLHFHRQWRWKHWXEÀDQJHPRYLQJIURPRQHVLGH

to the other.

• Select the left trim piece (see Figure R).Align top edge with the top

WULPDQGSUHVVLWRQWRWKHOHIWVLGHRIWKHWXEÀDQJHPRYLQJIURPWKH

WRSWRWKHERWWRP5HSHDWIRUWKHULJKWVLGHWXEÀDQJHWULPSLHFH

(See Figure R for right side trim piece.)

Figure S

Figure Q

Do not push against

front door panel with

knee. Damage to the

door panel will occur.

Side Trim

Figure R

Side

Trim

Top View

Side

Trim

Top Trim

)XOO\VHDWWRWXEÀDQJH

Figure T

Bracket

Dishwasher

tub frame

#8 Bracket

screw as

supplied

Side Mounting

Bend and break

here if necessary

Care should be taken to

ensure mounting screws

do not damage cabinetry

Do not pinch

the latch

wires in

#8 bracket

screw

Tub trim

Top

View

Handle

Door

Tub trim

Tub frame
