GE PDT855SSJSS User Manual

NOTE: If installing a Cus-
tom Door Panel (available
on some models), please
follow the instructions
found in the Custom Door
Panel kit WX35X20417.
• With dishwasher on
the wood base, check
the door balance by
opening and closing
the door.
• Door is properly
balanced if, when
opened, it self closes within 20° from vertical, stays in position
from 20° to 70° and falls fully open beyond 70°.
• If necessary increase or decrease tension as shown. Some
models will have 1 spring on each side and other models will
have 2 springs on one side and 1 spring on the other side.
/DWFKGRRUDQGDGMXVWVSULQJVWRFRUUHFWEDODQFH
Dishwasher Installation
• Screw leveling legs back into the dishwasher frame,
approximately 1/2" from frame as shown.
NOTE:6RPHPRGHOVKDYHUHDUDGMXVWDEOHOHYHOLQJZKHHOVDQG
will not require the 2 rear leveling legs.
Approx.
1/2"
STEP 3: REMOVE WOOD BASE,
INSTALL LEVELING LEGS
IMPORTANT – 'RQRWNLFNRȺZRRGEDVH
Damage will occur.
• Move the dishwasher close to the installation location and lay
it on its back. NOTE: Do not place the dishwasher on its side.
• Remove the 4 leveling legs on the underside of the wood base
with a 15/16" socket wrench.
• Discard base.
STEP 1: PREPARATION
Locate the items in the installation package:
• Screws
• Junction box cover
• Drain hose and clamp
• Mounting brackets
• Trim pieces (on some models)
• Drain hose hanger
• Owner's Manual
• Product samples and/or coupons
Figure I
Toekick
Remove 2
Toekick Screws
STEP 4: REMOVE TOEKICK
• Remove the 2 toekick screws and toekick. Set aside for use in
Step 23.
Figure J
6
Tip: Make sure door opens and closes smoothly.
Check door opening and closing. If door does not open easily or
falls too quickly, check spring cable routing. The cable is held in
place by “shoulders” on the pulley. Check to be sure cable has
not slipped over the pulley shoulders and is routed as shown.

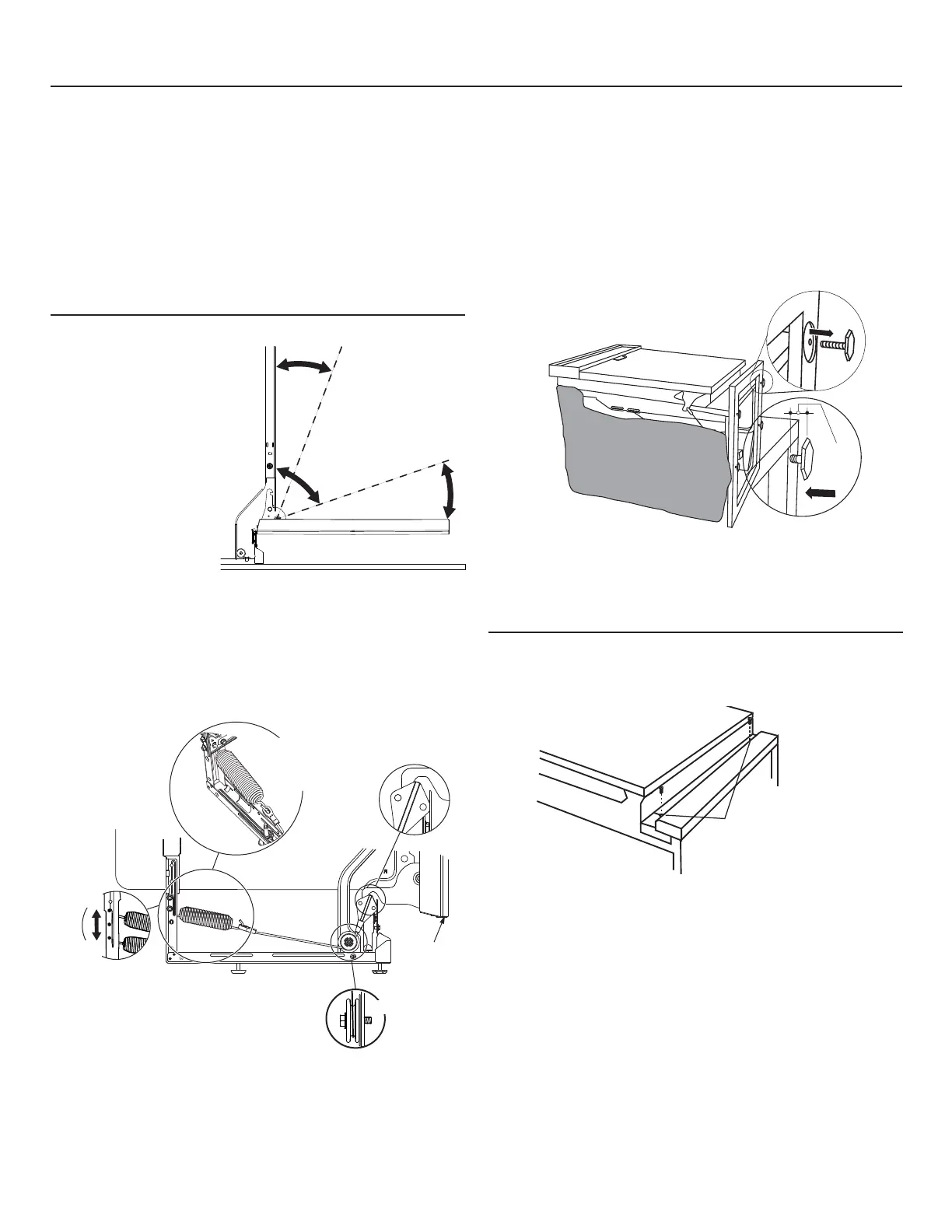

STEP 2: CHECK DOOR BALANCE
Figure G
Door
closes
within
20°
Door stays in
position from
20° to 70°
Door falls fully
open beyond 70°
Side View
Figure H
Side View
Custom
door
panel
Spring
hooked
to hole
inside rail
NOTE: The number of
springs, on each side,
will vary by model.
Front View
Make sure pully
cables are within
pulley shoulders
Increase
Tension
Decrease
Tension

GE PDT855SSJSS Specifications

General

Style	built-in dishwashers
Color	stainless steel
Number of Cycles	7
Cycle Selections	auto sense, express, heavy wash, light wash, normal wash, rinse, ewash
Options/Settings	bottle jets, child lock, delay start 1-12 hr., heated dry, pre soak, sani (nsf certified), start/reset, wash tempboost, wash zone lower only, wash zone upper only
Delay Start	yes
Child Lock	yes
Number of Racks	3
Cycle Signal	yes
Water Filter	yes
Food Disposer	yes
Sanitize Settings	yes
Wi-Fi	wi-fi
Smart Home	true, amazon alexa, google assistant, nest
Annual Energy Consumption	270 kilowatt hours
Voltage	120 volts
Current	9 amperes

Weight and Dimensions

Depth	24 inches
Height	34 inches
Width	23 3/4 inches
