Modifications reserved Page 14/25
GE_UPS_OPM_VHU_0K7_3K0_XUS_V011.docx Operating Manual VH700 UL, VH1000 UL, VH1500 UL, VH2000 UL & VH3000 UL
3.6.3 Connecting REPO (Remote Emergency Power Off) switch
REPO can be used to remotely shut down the UPS using the connector provided on the rear panel of the UPS
(8, fig. 3.4.a/b). Figure 3.6.3 shows all suitable connections on the REPO Connector.
1. Remove the cable link from the male connector that came with the unit
2. Connect a switch to the male connector, the switch should be of Normally Closed type for normal operation.
3. Place the male connector to the connector on the rear panel of the UPS (8, fig. 3.4.a/b.)
4. When the switch is opened, the UPS will shut down. More information is given in section 4.4.14
WARNING!
The REPO Contact is a Safety Extra Low Voltage Circuit. Connect it only to a SELV Circuit.
NOTE
Use standard Low Voltage Cable in accordance with National and local regulations.

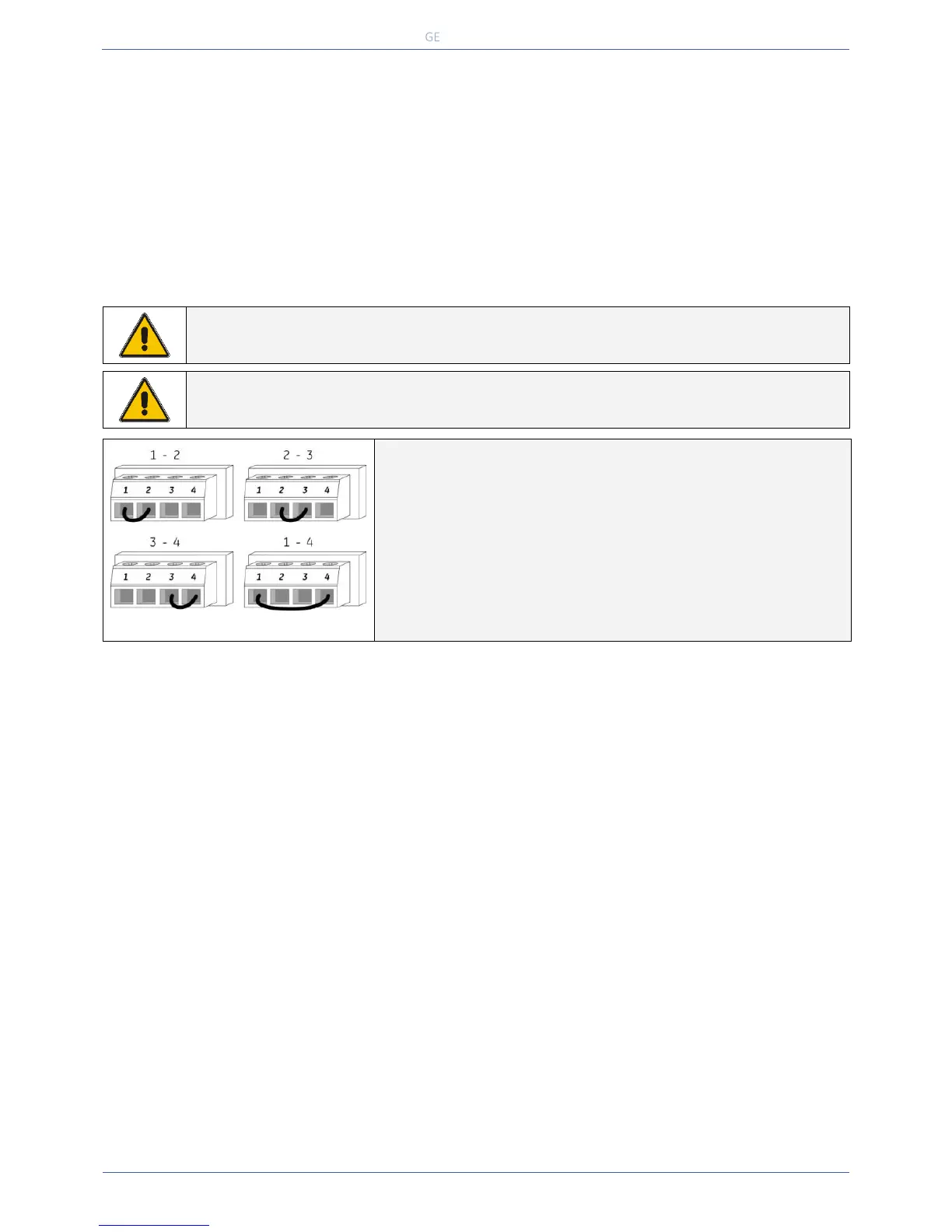

Fig. 3.6.3: REPO connections
NOTE
To maintain the security of the SELV circuit be sure to use the following
(only for qualified, skilled and service personnel) :
Wire type: UL Style 1015, 86
F (10°C), 600 VAC
Minimum wire: AWG 26
Maximum wire: AWG 16
Torque: 3.0 lb-inch
