4.5 USE: SETUP MODE
The setup mode can only be entered if the UPS is in ‘standby’ -mode: connected to a live wall outlet and switched off (LED
'operation' blinks).
1 Press keypad 'O' and keep it pressed while pressing 'I' simultaneously. Release both buttons.
The setup sequence starts with the setup of the output voltage, indicated by a blinking LED ‘operation’.
2 Scroll through the four functions with keypad 'I', one of the LEDs ‘operation’, ‘on bypass’, ‘on battery’ or ‘alarm’ will
blink, indicating which function has been selected (see fig. 4.5).
3 Toggle the setting of the selected function by pressing switch 'O'. The LEDs on the LEDbar ‘runtime capacity’ shows
the setting.
4 Store the new settings and leave the setup mode: press keypad '0' and keep it pressed while pressing 'I'
simultaneously. Release both buttons.

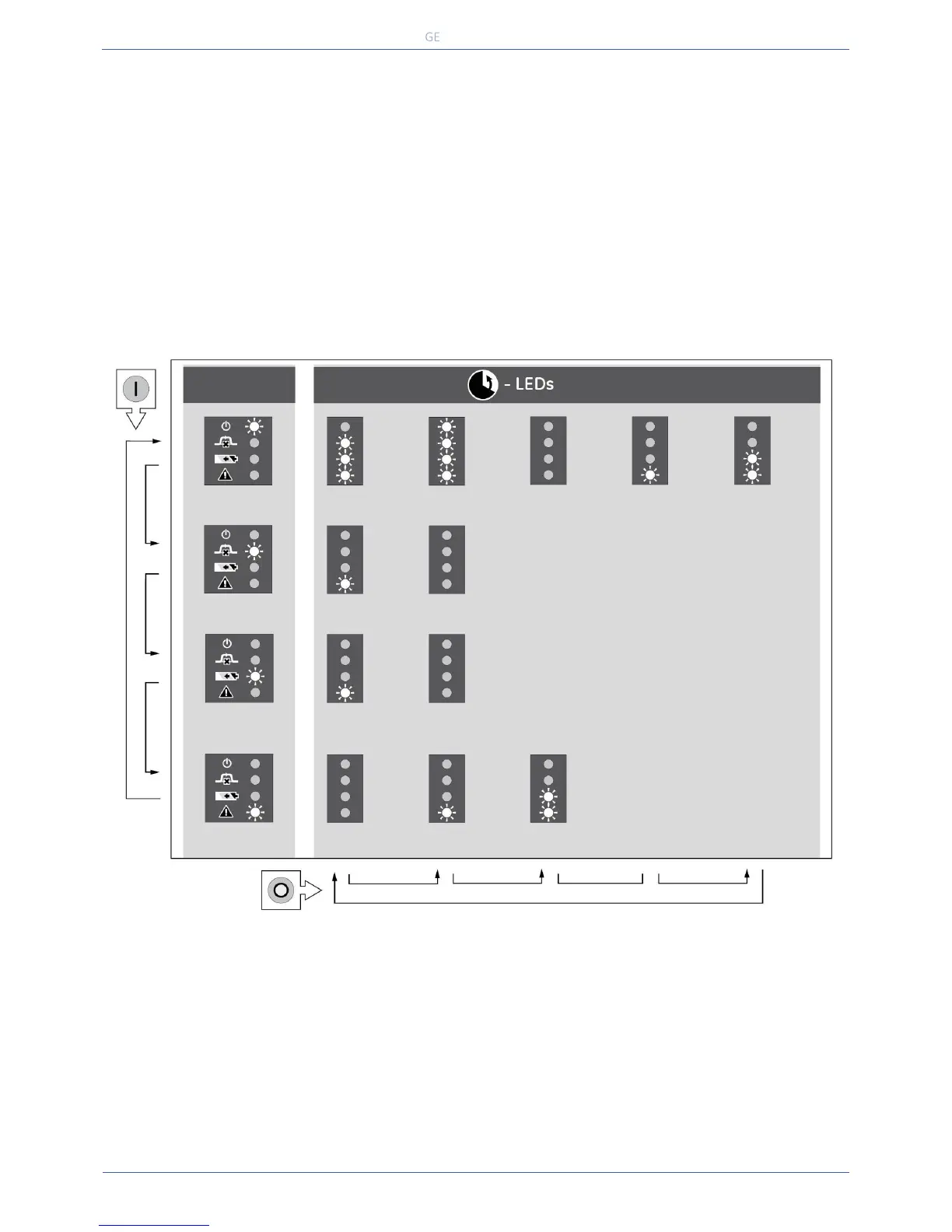

Fig. 4.5: Setup menu
*DEFAULT SETTING
60 Hz
auto*
50 Hz
Output
frequency
disabled*
enabled
Bypass
enabled*
disabled
Output voltage
100 Vac
120 Vac*
127 Vac
Phase – Neutral
reversal
110 Vac
115 Vac
