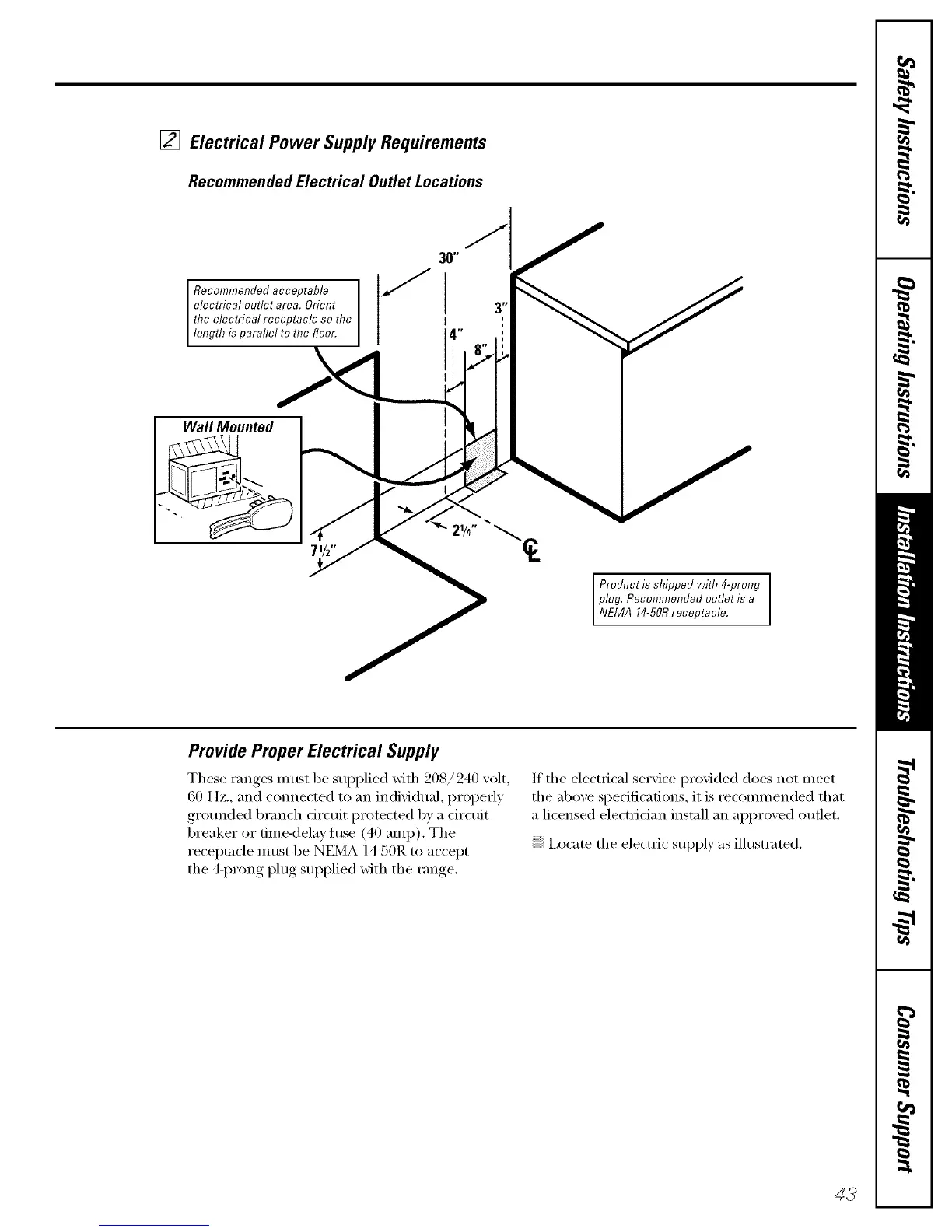

[] Electrical Power Supply Requirements
Recommended Electrical Outlet Locations
Recommended acceptable
electrical outlet area. Orient
the electrical receptacle so the
length is parallel to the floor.
\
Wall Mounted
Product is shipped with 4-prong
plug. Recommended outlet is a
NEMA 14-50Rreceptacle.
Provide Proper Electrical Supply
These ranges must be supplied with 208/240 volt,
60 Hz., and c{mnected to an individual, properly
grotmded branch circuit protected bv a circuit
breaker or time-delay fllse (40 amp). The
receptacle must be NEMA 14-50R to accept
the +prong plug supplied with the range.
If the electrical service provided does not meet
the above spedficafions, it is recommended that
a licensed electrician install an approved outlet.
I,ocate the electric supply as illustrated.
43
