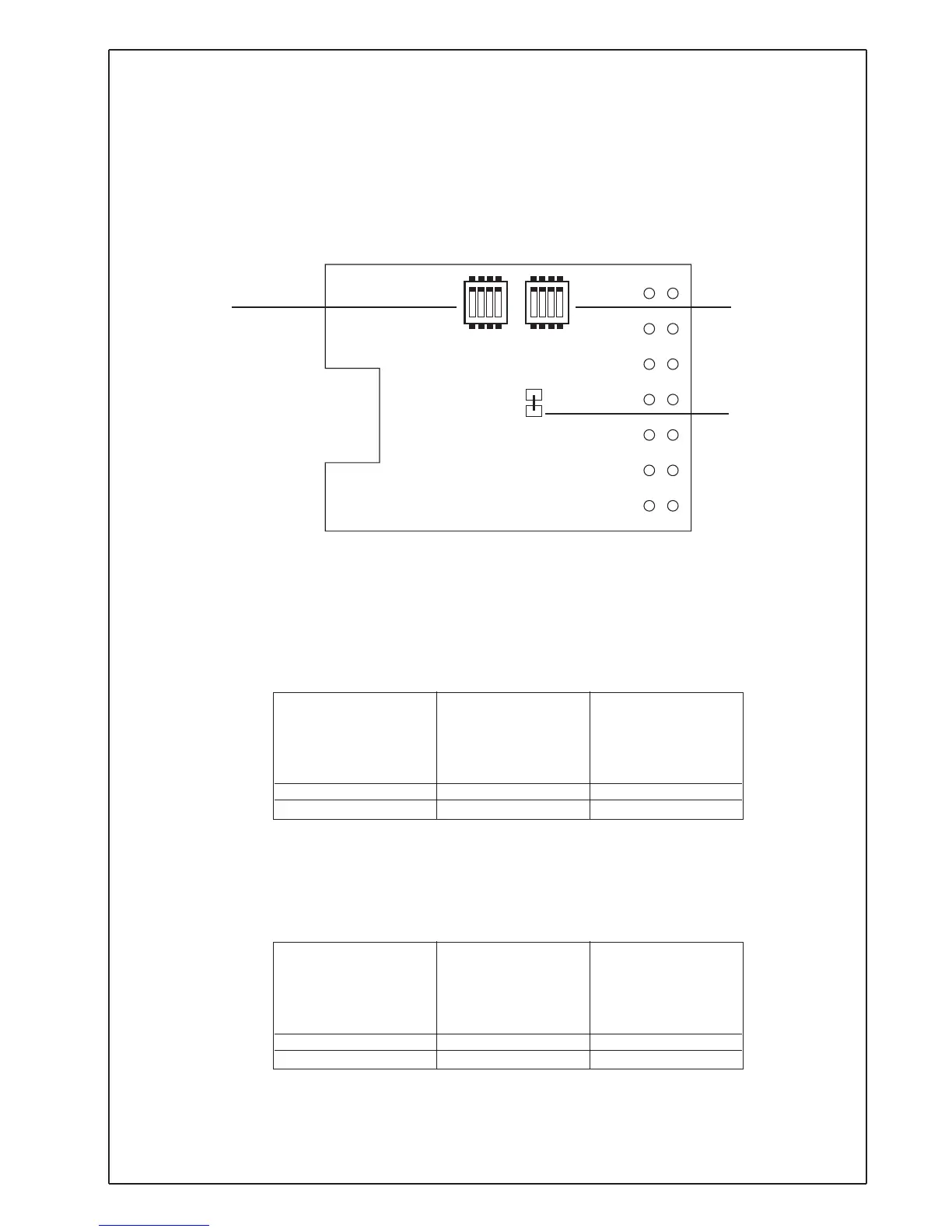

USCITA ANALOGICA 1 (DIP SWITCHES S2)
ANALOGUE OUTPUT 1 (DIP SWITCHES S2)
ANALOGER AUSGANG 1 (DIP SWITCHES S2)
SORTIE ANALOGIQUE 1 (DIP SWITCHES S2)
SALIDA ANALÓGICA 1 (DIP SWITCHES S2)
SAÍDA ANALÓGICA 1 (DIP SWITCHES S2)
USCITA ANALOGICA
ANALOGUE OUTPUT
ANALOGER AUSGANG S2 (ON) S2 (OFF)
SORTIE ANALOGIQUE
SALIDA ANALÓGICA
SAÍDA ANALÓGICA
0/4...20mA 1 2-3-4
0...10V 2-4 1-3
USCITA ANALOGICA 2 (DIP SWITCHES S3)
ANALOGUE OUTPUT 2 (DIP SWITCHES S3)
ANALOGER AUSGANG 2 (DIP SWITCHES S3)
SORTIE ANALOGIQUE 2 (DIP SWITCHES S3)
SALIDA ANALÓGICA 2 (DIP SWITCHES S3)
SAÍDA ANALÓGICA 2 (DIP SWITCHES S3)
USCITA ANALOGICA
ANALOGUE OUTPUT
ANALOGER AUSGANG S3 (ON) S3 (OFF)
SORTIE ANALOGIQUE
SALIDA ANALÓGICA
SAÍDA ANALÓGICA
0/4...20mA 1 2-3-4
0...10V 2-4 1-3
S1
S2
S3
ON
LC
Fig. 3
S2 S3
S1
SCHEDA OUT SERIALE / OUT W
SERIAL OUT BOARD / OUT W
SERIELLER AUSGÄNGE / OUT W
CARTE OUT SÉRIE / OUT W
FICHA OUT SERIE / OUT W
PLACA DE COMUNICAÇÃO DIGITAL / OUT W
5
