PONTICELLI PER CONFIGURAZIONE
JUMPERS FOR CONFIGURATION
BRÜCKEN FÜR KONFIGURATION
PONTS ÉTAIN POUR CONFIGURATION
PUENTES PARA CONFIGURACIÓN
PONTES PARA CONFIGURAÇÃO
Struttura dello strumento: identificazione schede
Device structure: identification of boards
Aufbau des Instruments: Leiterplatten
Structure de l’appareil: identification des cartes
Estructura del instrumento: identificación fichas
Estrutura do instrumento: identificação das placas
800 / 800P / 800V APPENDIX

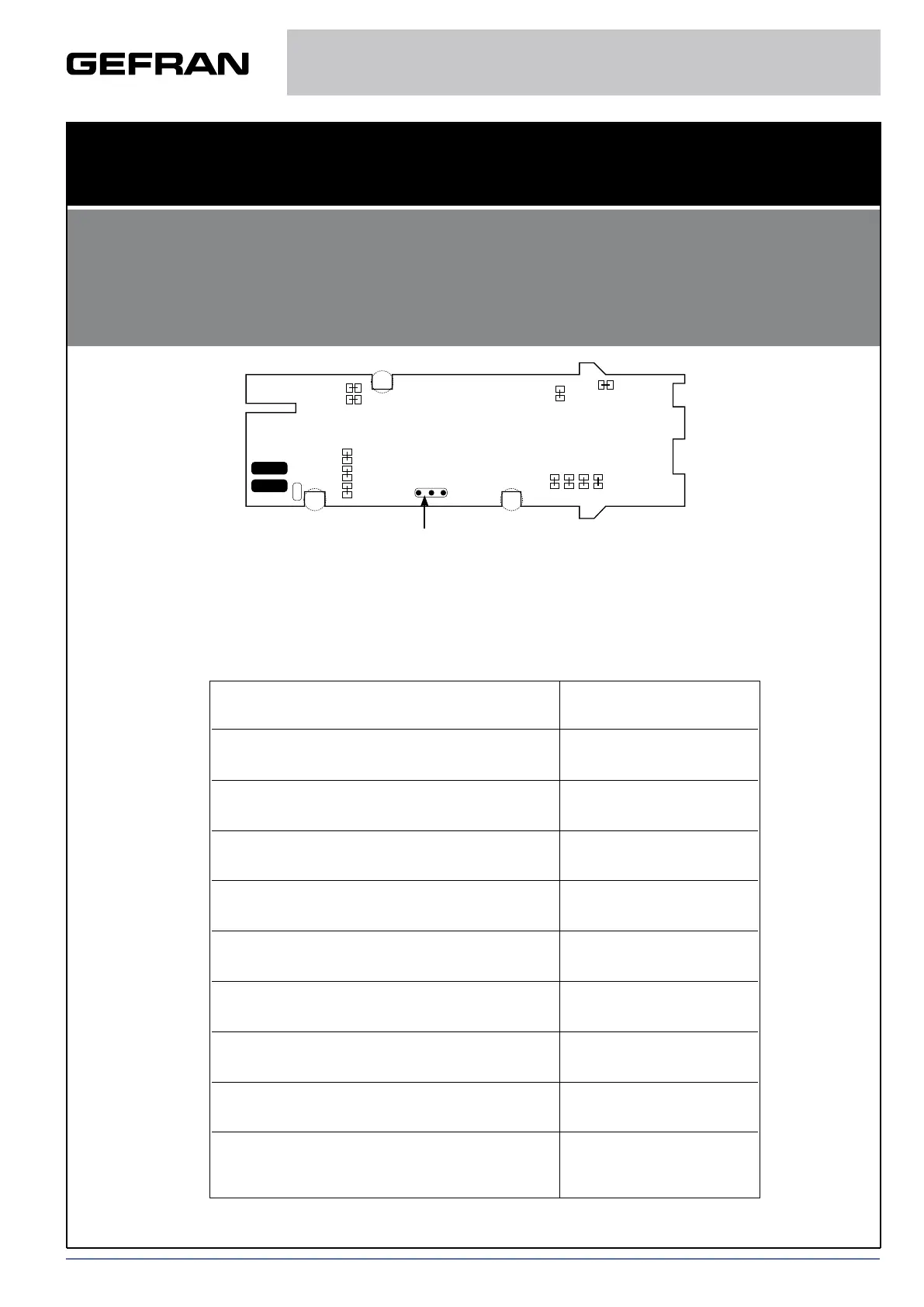

SCHEDA CPU
CPU BOARD
CPU-KARTE
CARTE CPU
FICHA CPU
PLACA CPU
Connettore per collegamento seriale
Connector for serial connection
Steckverbinder für seriellen Anschluss
Connecteur pour raccordement série
Conector para conexión serie
Conector para ligação serial
S10
S13
S12
S11
S9
S8
S7
S5
S4
S6
S3
LS
Tx
Rx
Gnd
DESCRIZIONE PONTICELLI
DESCRIPTION JUMPERS
BESCHREIBUNG BRÜCKEN
Abilitazione configurazione S3 (chiuso)
Enable configuration S3 (closed)
Freigabe der Konfiguration S3 (geschlossen)
Abilitazione calibrazione S4 (chiuso)
Enable calibration S4 (closed)
Freigabe der Kalibration S4 (geschlossen)
OUT3 relé diseccitato power ON S9 (chiuso)
OUT3 relay OFF at power ON S9 (closed)
Ausgang 3; Relais angezogen = Kontakt geöffnet S9 (geschlossen)
OUT3 relé eccitato power ON S10 (chiuso)
OUT3 relay ON at power ON S10 (closed)
Ausgang 3; Relais angezogen = Kontakt geschlossen S10 (closed)
Non utilizzato S7 (chiuso)
Not used S7 (closed)
Nicht verwendet S7 (geschlossen)
Abilitazione ingresso da potenziometro S11 (chiuso)
Enable input from potentiometer S11 (closed)
Freigabe des Potentiometereingangs S11 (geschlossen)
Abilitazione ingresso da potenziometro S12 (chiuso)
Enable input from potentiometer S12 (closed)
Freigabe des Potentiometereingangs S12 (geschlossen)
Abilitazione sonda PTC S13 (aperto)
Enable PTC probe S13 (open)
Freigabe Fühler PTC S13 (geöffnet)
Abilitazione sonda PT100 S13 (chiuso)
Enable PT100 probe S13 (closed)
Freigabe Fühler PT100 S13 (geschlossen)
