GUARDS AND SHIELDS
Whenever possible and without affecting machine
operation, guards and shields are used to protect poten-
tially hazardous areas. In many places, decals are also
provided to warn of potential hazards and to display
special operating procedures.
WARNING
Read and thoroughly understand all safety
decals on the Telescopic Handler before oper-
ating it. DO NOT operate the machine unless
all factory-installed guards and shields are
properly secured in place.
CAUTION
Before operating the Telescopic Handler,
become familiar with and know how to use
ALL safety devices and controls. Know how to
stop the machine operation before operating
it. This Gehl machine is designed and intend-
ed to be used ONLY with a Gehl Company
attachment tool, or a Gehl Company approved
accessory or referral attachment tool. Gehl
Company cannot be responsible for safety if
the machine is used with an unapproved
accessory or attachment tool.
Chapter 5
INDICATORS AND CONTROLS

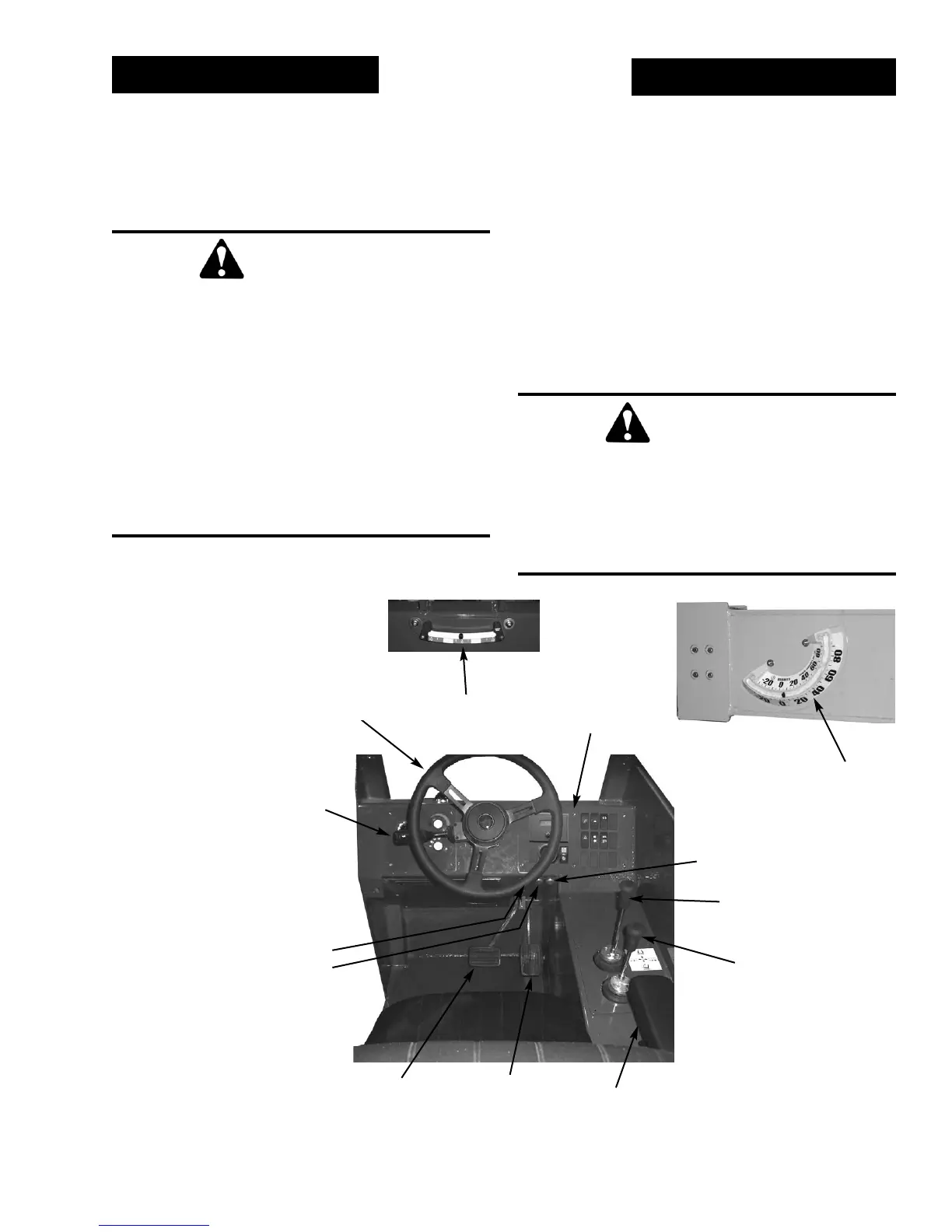

Operator’s Compartment and Indicators/Controls Locations
Frame Angle
Indicator
Boom Control
Joystick
Key Switch
Start Button
Boom Angle
Indicator
Brake Pedal
Attachment / Auxiliary
Hydraulics Joystick
Arm Rest
Throttle Pedal
Steering Wheel
Instrument and
Switch Panel
Horn Button
Travel Direction
Lever
