chapter for the proper oil specification. Replace the
check/fill plug.

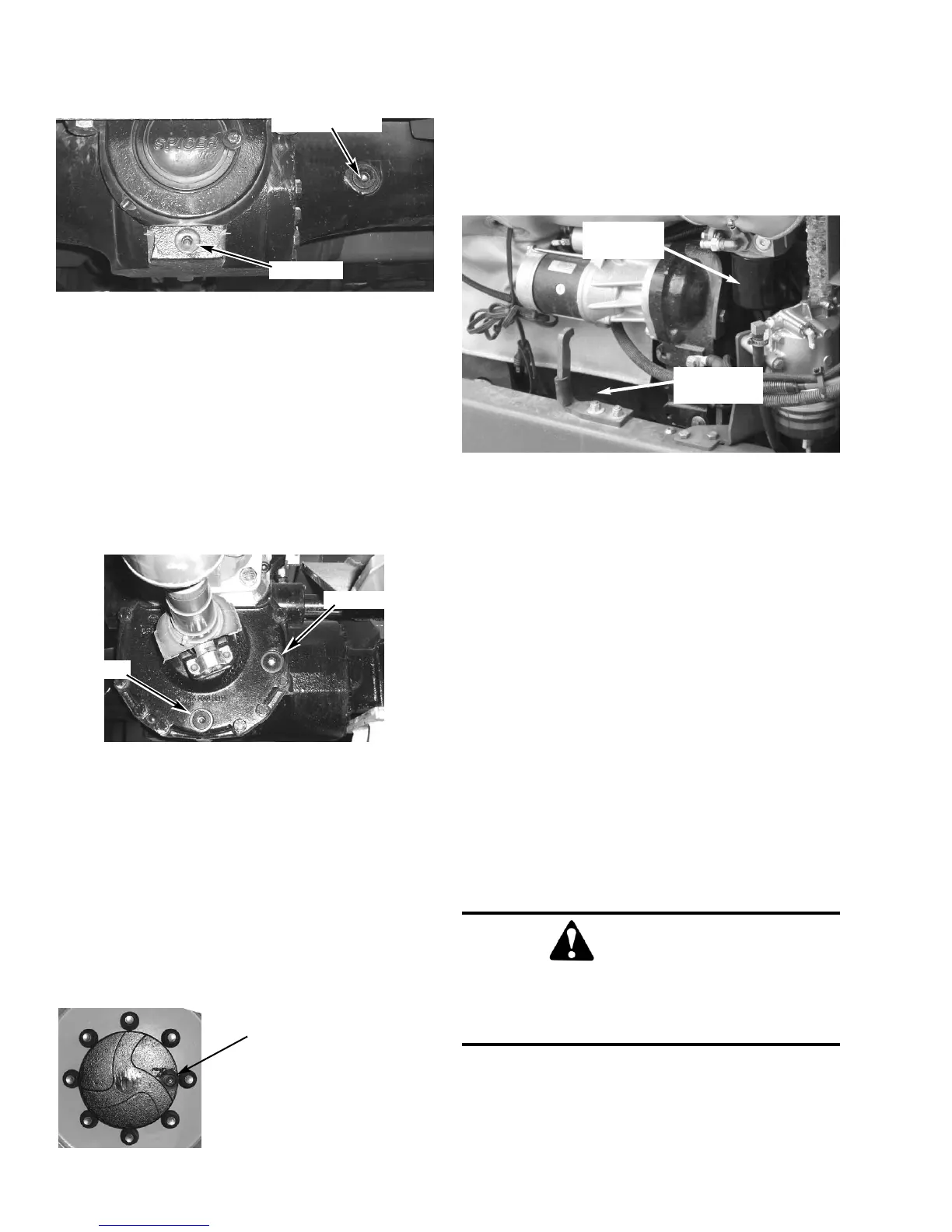

Front Axle Transfer Case
NOTE: The Telescopic Handler should be on a
level surface for this procedure.
Remove the oil check/fill plug. See illustration. Oil
should flow from the hole. If low, add oil until it flows
from the hole. Replace the plug, wait 10 to 15 minutes
and repeat the fill procedure. Continue this process
until the differential is full. Refer to the Lubrication
chapter for the proper oil specification. Replace the
check/fill plug.
Planetary Hubs
NOTE: The planetary hubs can be checked with-
out jacking up the machine.
The planetary hubs have one plug each used for filling
and draining. Refer to illustration above. For checking
the level and filling, position the wheel until the oil
level arrow is horizontal. Remove the plug. If oil does
not run out, add oil until it overflows. Check the
remaining hubs the same way. Refer to the oil specifi-
cations in the Lubrication chapter of this manual.
CHANGING ENGINE OIL AND FILTER
Change the engine oil and filter using the following
procedure:
1. With the engine warm, open the cover under the
engine to access the drain plug. Remove the
crankcase drain plug.
IMPORTANT: DO NOT discharge oil onto ground.
Catch and dispose of per local waste disposal
regulations.
2. The engine oil filter should be changed at every oil
change interval. Remove and discard the dispos-
able filter. Wipe the gasket sealing area of the fil-
ter head mounting surface with a clean cloth.
IMPORTANT: Use only genuine OEM engine
replacement filters.
3. Apply a thin coat of clean oil to the new oil filter
gasket. Hand tighten. Refill the crankcase with
new oil. Follow specifications in the Lubrication
chapter for type and viscosity of new oil.
4. After new oil has been added, run the engine at idle
speed until the oil pressure lamp is OFF. Check for
leaks at the filter and drain plug. Re-tighten only as
much as necessary to eliminate leakage.
CHANGING FUEL FILTERS
This machine is equipped with a fuel filter/water sepa-
rator and fuel filter. See the illustration for filter loca-
tions.
Plug in fill and
check position.
Engine Oil
Filter
Engine Oil
Drain Plug
WARNING
NEVER service the fuel system while smok-
ing, while near an open flame, or after the
engine has been operated and is hot.
