PRINTED IN U.S.A. 43 50960066/AP0813
GENERAL INFORMATION
NOTE: The Maintenance chapter in this manual
has provisions for recording the dates and
hourmeter readings after lubrication or other ser-
vice has been performed; use those spaces to
keep a log for maintaining a current service inter-
val record. Proper routine lubrication is an impor-
tant factor in preventing excessive part wear and
early failure.
LUBRICANTS

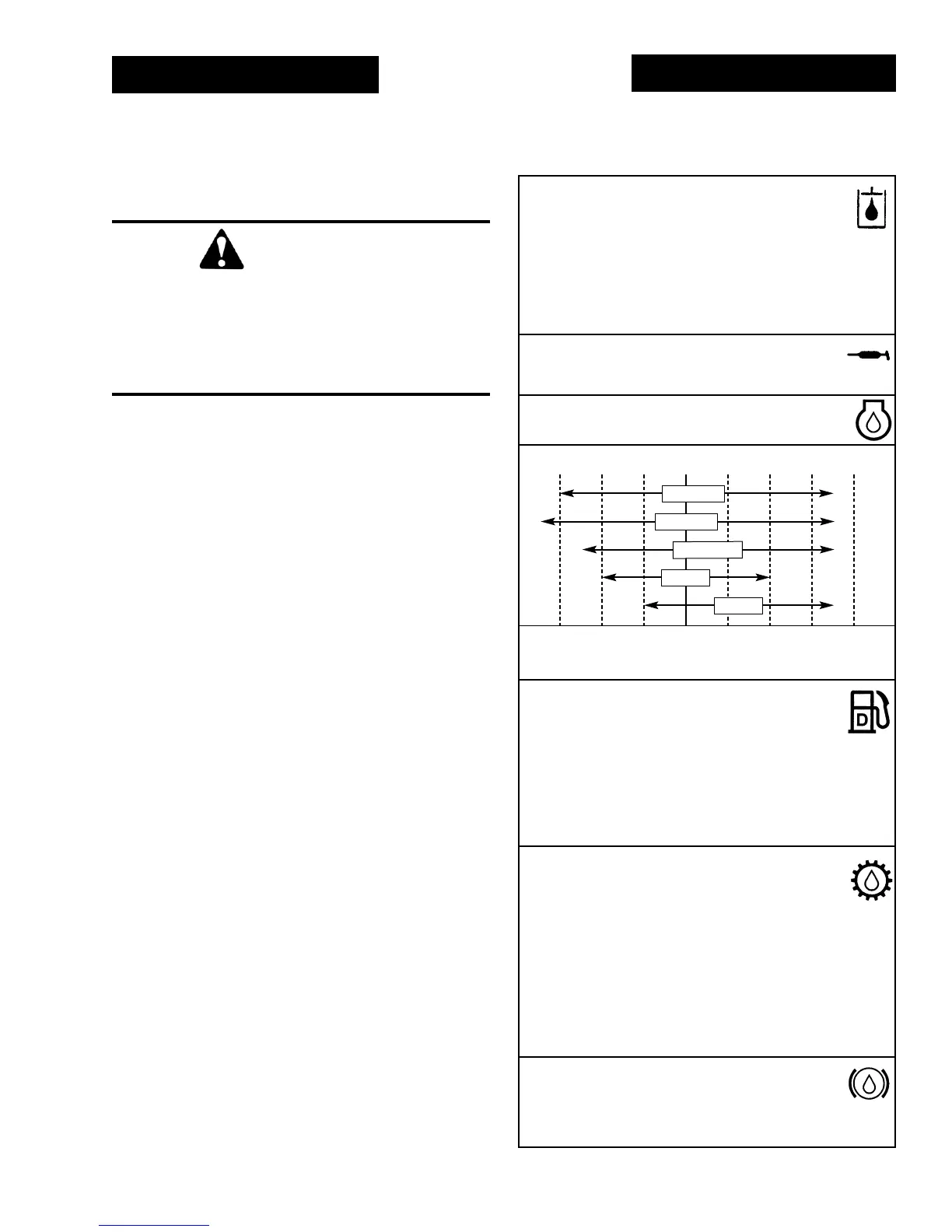

The chart on this page lists the locations, temperature
ranges and recommended types of lubricants to be used
when servicing this machine. Also refer to the separate
engine manual for additional information regarding
recommended engine lubricants, quantities required
and grades.
SEVERE OPERATING CONDITIONS
If the machine is to be operated uninterrupted at full
travel speed over distances greater than five miles at
ambient temperatures exceeding 90°F (32°C), then the
recommended hydraulic oil shown in the chart to the
right should be replaced with oil that has an ISO
Viscosity Grade (VG) of 68, SAE 20, or equivalent.
In these severe operating conditions, the drive motor
generates more heat and this hydraulic oil will provide
the hydrostatic drive components the lubrication need-
ed for proper operation.
NOTE: Refer to “Operator Services” in the
Service and Storage chapter of this manual for
detailed information regarding periodic checking
and replenishing of lubricants.
Chapter 7
LUBRICATION
WARNING
NEVER lubricate or service this unit when any
part of the machine is in motion. ALWAYS
exercise the Mandatory Safety Shutdown
Procedure (p. 8 Safety chapter) before lubri-
cating or servicing this equipment.
Hydraulic System Reservoir
Use Mobil DTE 15M, or an equivalent that
contains anti-rust, anti-foam and anti-oxidation
additives and conforms to ISO VG46.
Refer to “Severe Operating Conditions” on this page
for additional hydraulic oil specifications.
Capacity: 18 gallons (68 L)
All Grease Fittings
Use No. 2 Lithium-based Grease
Engine Crankcase Oil
*API Service Classification: CJ-4
Change volume w/ filter: 9.5 quarts (9.0 L)
Diesel Fuel
IMPORTANT: Use (ULSD) ultra low sulfur
diesel fuel with a sulfur content of 15 PPM or
less. Fuel specified to EN590:96 or ASTM D975-94 is
strongly recommended. Fuel additives are not recom-
mended. Refer to the engine manual for additional
information.
Axle Gear Oil
MobilFluid
®
424 (recommended)
API GL5 85W-90 with Wet Brake Additive
(Wet Brake Additive part number L71456)
Front Differential Capacity: 4.0 quarts (3.8 L)
Rear Differential Capacity: 4.0 quarts (3.8 L)
Transfer Case Capacity: Front axle: 8 oz. (0.23 L)
Front Planetary Capacity: 27 oz. (0.8 L)
Rear Planetary Capacity: 30 oz. (0.9 L)
Brake System
Use Sunco Multi-ATF or equivalent
-22° -4° 14° 32°F50° 68° 86° 104°
−30° −20° −10° 0°C 10° 20° 30° 40°
SAE 20W
SAE 15W-40
SAE 5W-30
SAE 10W-30
SAE 30W
