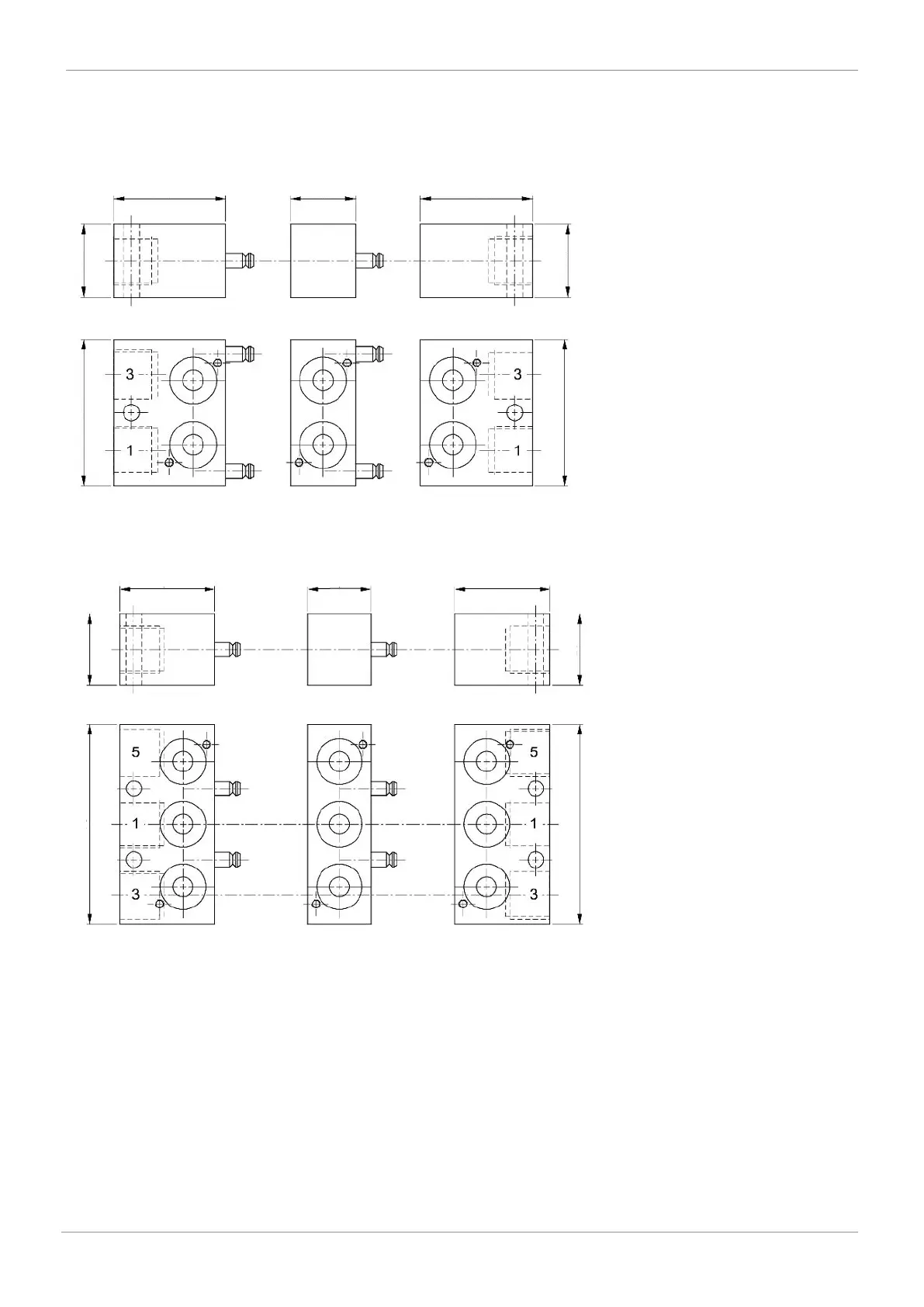

7.4 Interlinking system
7.4.1 Individual parts
7.4.1.1 3/2-way design
Base plates, modular
Base plate on the left
Base plate on the right
38.4
22.3
38.4
25
25
50
50
Dimensions in mm
7.4.1.2 5/2-way design
Base plates, modular
Base plate on the left
Base plate on the right
33.375
22.25
25
25
70
70
33.375
Dimensions in mm
www.gemu-group.com
10 / 24
GEMÜ 8500
7 Dimensions
9
11
Table of Contents
Default Chapter
3
Table of Contents
3
1 General Information
4
Information
4
Symbols Used
4
Definition of Terms
4
Warning Notes
4
2 Safety Information
5
3 Product Description
5
Construction
5
Description
5
Function
5
4 Correct Use
6
5 Order Data
7
Order Codes
7
Order Example
7
6 Technical Data
8
Medium
8
Temperature
8
Pressure
8
Mechanical Data
8
Electrical Data
8
7 Dimensions
9
Standard Version
9
NAMUR Version
9
NAMUR Flex Plate
9
Interlinking System
10
Individual Parts
10
Mounted Versions
11
Solenoid
12
8 Manufacturer's Information
13
Delivery
13
Transport
13
Storage
13
Scope of Delivery
13
9 Assembly
13
10 Pneumatic Connection
14
Circuit Diagram
14
11 Electrical Connection
15
Manual Override
16
12 Interlinking System
17
3/2-Way Design
17
13 Commissioning
18
14 Fault Clearance
19
15 Inspection and Maintenance
20
Solenoid Coil Replacement
20
16 Disassembly
20
17 Disposal
20
18 Returns
21
19 Declaration of Conformity According to 2014/68/EU (Pressure Equipment Directive)
22
20 Declaration of Conformity in Accordance with 2014/35/EU (Low Voltage Directive) and 2014/30/EU (EMC Directive)
23
