www.gemu-group.com14 / 24GEMÜ 8500
10 Pneumatic connection
Installation:
2. Ensure the suitability of the valve for each respective use.
The valve must be appropriate for the piping system oper-
ating conditions (medium, medium concentration, temper-
ature and pressure) and the prevailing ambient conditions.
Check the technical data of the valve and the materials.
3. Shut off plant or plant component.
4. Secure against recommissioning.
5. Depressurize the plant or plant component.
6. Completely drain the plant (or plant component) and let it
cool down until the temperature is below the media vapor-
ization temperature and cannot cause scalding.
7. If necessary, correctly decontaminate, rinse and ventilate
the plant or plant component.
8. If necessary, fit a strainer in front of the valve inlet.
9. Carefully remove the caps from the female threads of
the.pilot solenoid valve.
10. Screw the pilot solenoid valve to the appropriate device
with two screws.
11. Connect the control medium lines (see chapter "Pneu-
matic connection").
12. Connect the cable (see chapter "Electrical connection").
10 Pneumatic connection
NOTICE
▶ Connect the control medium lines tension-free and
without any bends or knots! Use appropriate connectors
according to the application.
NOTICE
▶ The correct NAMUR plate must be fitted before connect-
ing the control medium connectors (see chapter "NAMUR
plate replacement").

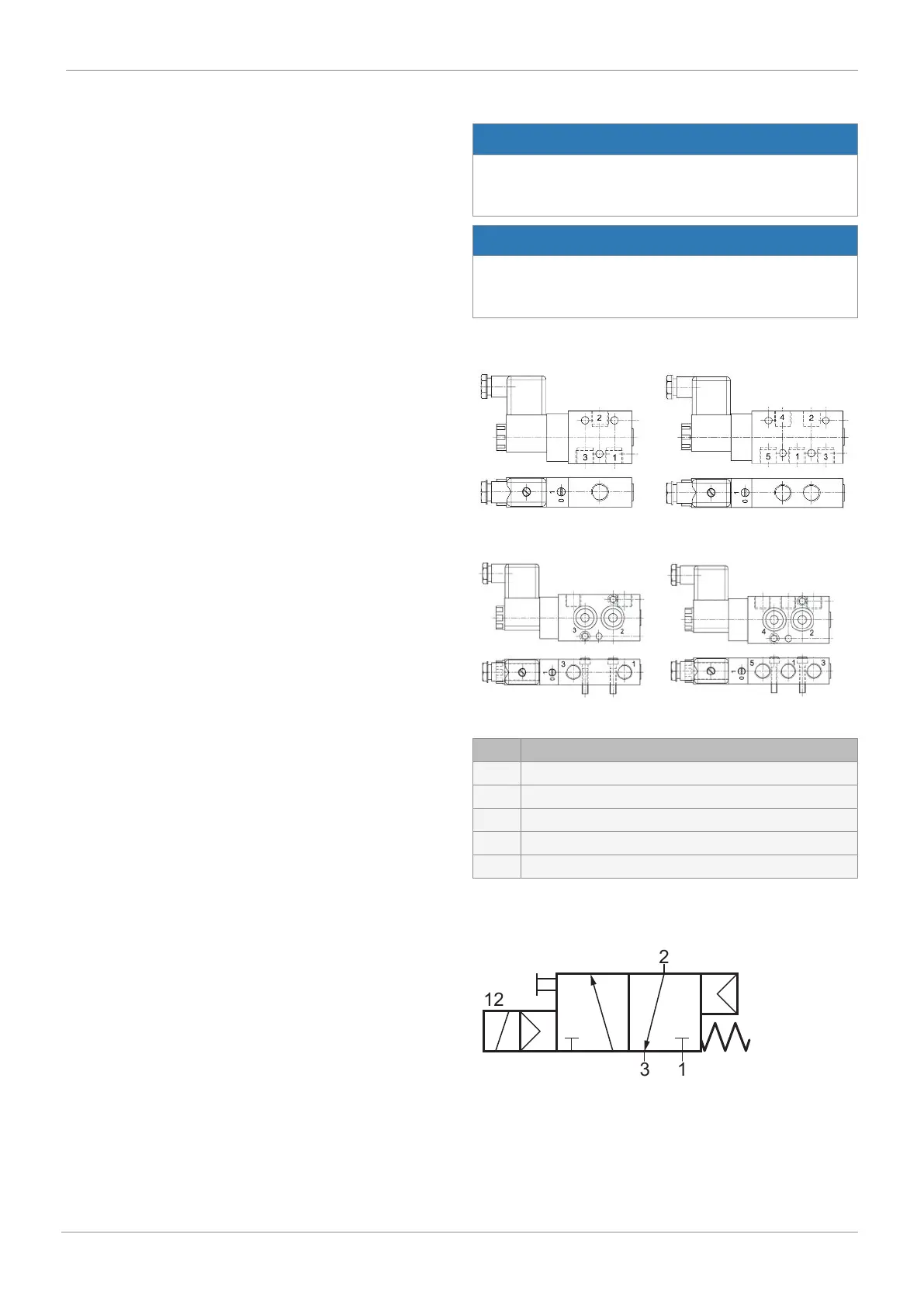

Thread size of the control medium connectors:
G1/4
Fig.1: Connector 8500
Fig.2: Connector 8500N
Item Name
1 Air supply
2 Output
3 Exhaust air
4 Output (for 5/2-way version only)
5 Exhaust air (for 5/2-way version only)
10.1 Circuit diagram
10.1.1 3/2-way standard
