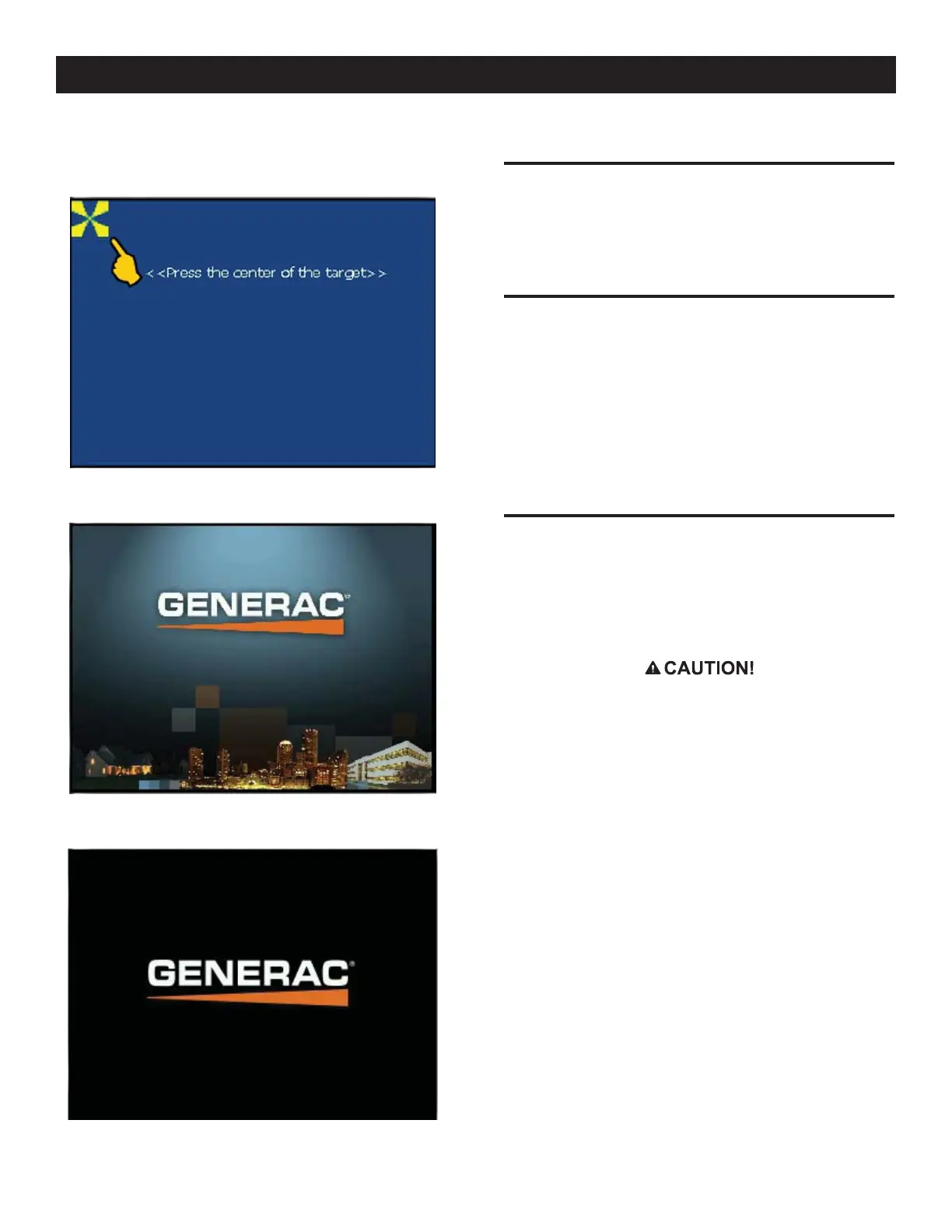

Figure 26 - Screen Calibration Screen
Figure 27 - Screen Saver #1
Figure 28 - Screen Saver #2
4.1 OPERATE TRANSFER SWITCH
Operate the transfer switch at least once each month. This can be
done by performing a NORMAL TEST of the system. The System
Test switch only simulates failure of the UTILITY power source,
therefore, service will be interrupted only during the actual transfer
of the load.
4.2 CLEAN AND INSPECT TRANSFER
SWITCH
Protect the transfer switch against construction grit, metal chips,
excessive moisture and other harmful dirt at all times. At least
once each year, turn OFF all power supplies to the switch, then
brush and vacuum away dust and dirt that has accumulated inside
the enclosure. After cleaning, inspect the transfer switch carefully.
Look for evidence of arcing, burning, hot spots, charring and other
damage. If any of these are found, have the switch assembly
checked by an authorized service technician.
4.3 LUBRICATION
Operating parts inside the transfer mechanism have been properly
lubricated at the time of assembly. Under normal conditions no
additional lubrication should be required. The service technician
should lubricate all recommended points whenever major transfer
mechanism components are replaced.
Use only specified greases to lubri-
cate contactor parts. DO NOT USE ANY
SUBSTITUTES.
Use the following lubricants for the:
1. Main Contacts (Between movable contact and busbars).
• Dow Corning (Molykote) BR2 Plus; (Mfg. by Dow Corning
Co., USA)
• Liqui-Moly (Mfg. by DAI TO Co., Ltd., Japan)
2. Operating Mechanism (Used on the actuator and other parts
of the contactors. Excluding the movable contacts).
• Mobilgrease 28 (Mfg. by Mobil Oil Co.)
• Mobiltemp SHC 32 (Mfg. by Mobil Oil Co.)
• Polo Moly Complex Grease #NLG12 (Mfg. by Polo Lubricants,
USA)
• Rheolube 363 (Mfg. by Nye Lubricants Inc., USA)
