02
2.0L T-GDI
3.3L T-GDI

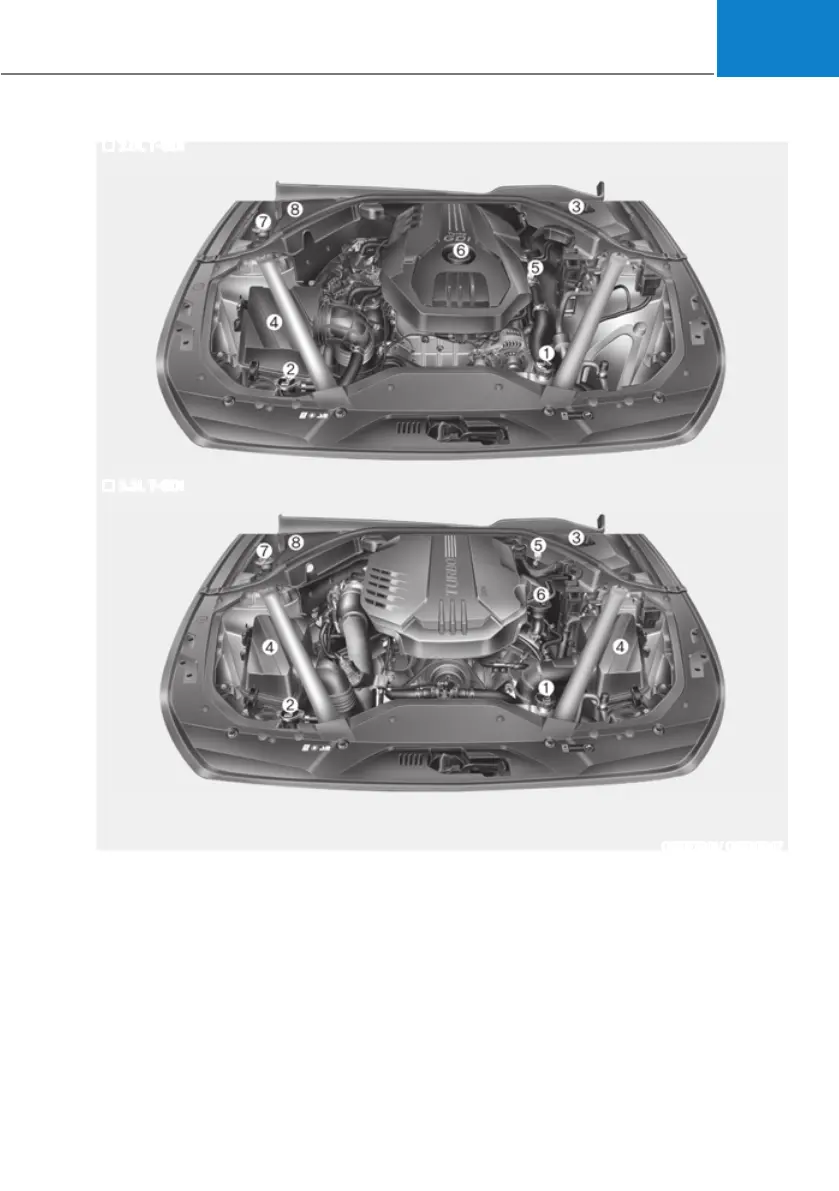

The actual engine compartment in the vehicle may differ from the illustration.
OIK077001/ OIK017007
1. Engine coolant reservoir ...................... 9-20
2. Radiator cap ...........................................9-21
3. Brake fluid reservoir ............................. 9-23
4. Air cleaner ............................................. 9-25
5. Engine oil dipstick ................................. 9-17
6. Engine oil filler cap ................................9-18
7. Windshield washer fluid reservoir ....... 9-24
8. Fuse box ................................................9-45
ENGINE COMPARTMENT
❈ The battery is in the trunk.
