How does the Air Bags System
Operate?
OIK030110N

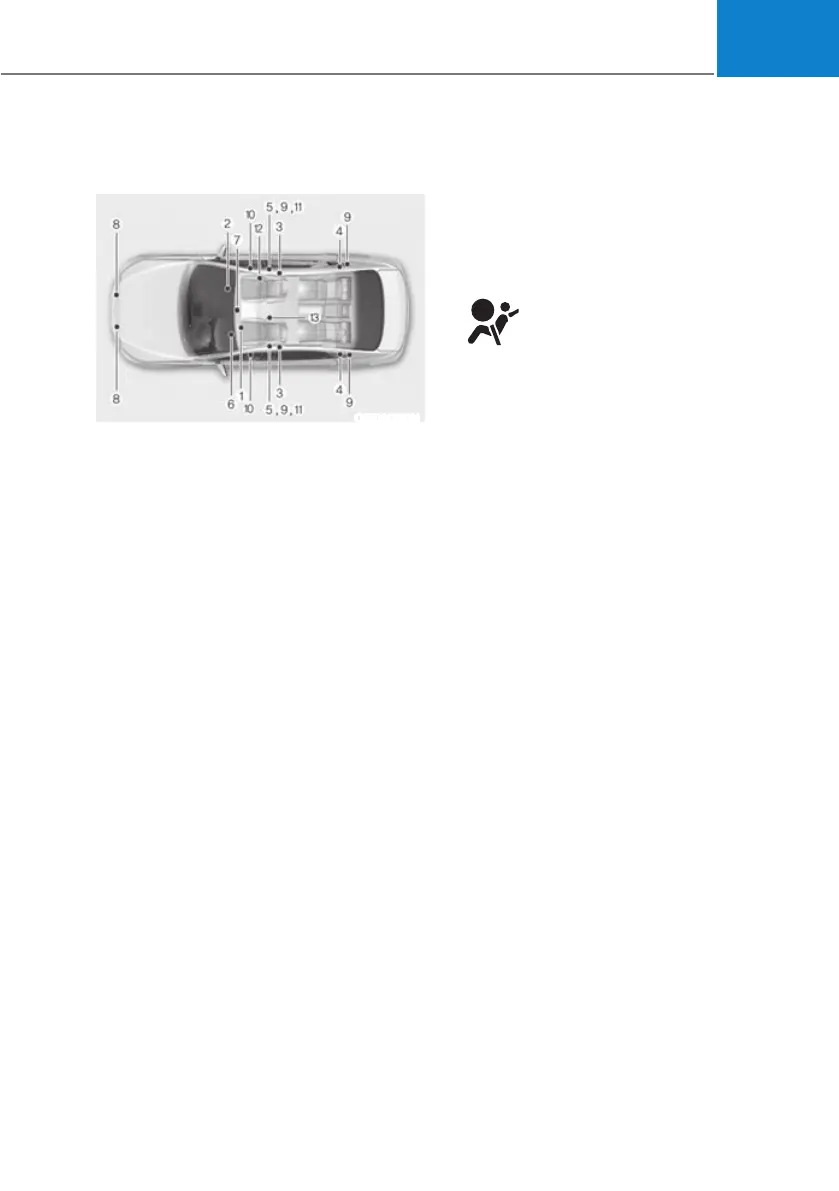

The SRS consists of the following
components:
(1) Driver's front air bag module /
Driver's knee airbag module
(2)
Passenger's front air bag module
(3)
Side air bag modules
(4)
Curtain air bag modules
(5)
Retractor pre-tensioner assemblies
(6)
Air bag warning light
(7)
SRS control module (SRSCM) /
Rollover sensor
(8)
Front impact sensors
(9)
Side impact sensors (acceleration)
(10)
Side impact sensors (pressure)
(11)
Emergency Fastening Device System
(12)
Occupant classification system
(13)
Front center air bag module
à Front passenger’s air bag OFF lamp is
located on the overhead console.
The SRSCM (Supplemental Restraint
System Control Module) continually
monitors all SRS components while
the Engine Start/Stop button is ON to
determine if a crash impact is severe
enough to require air bag deployment or
pre-tensioner seat belt deployment.
SRS warning light
The SRS (Supplemental Restraint System)
air bag warning light on the instrument
panel displays the air bag symbol
depicted in the illustration. The system
checks the air bag electrical system for
malfunctions. The light indicates that
there is a potential problem with your
air bag system, which could include
your side and/or curtain air bags used
for rollover protection (if equipped with
rollover sensor).
