Maintenance
9-26
CABIN AIR FILTER
Filter Inspection
The cabin air filter should be replaced
according to the Maintenance Schedule.
If the vehicle is operated in severely air-
polluted cities or on dusty rough roads
for a long period, it should be inspected
more frequently and replaced sooner.
Replace the cabin air filter by following
the procedure below and be careful to
avoid damaging other components.

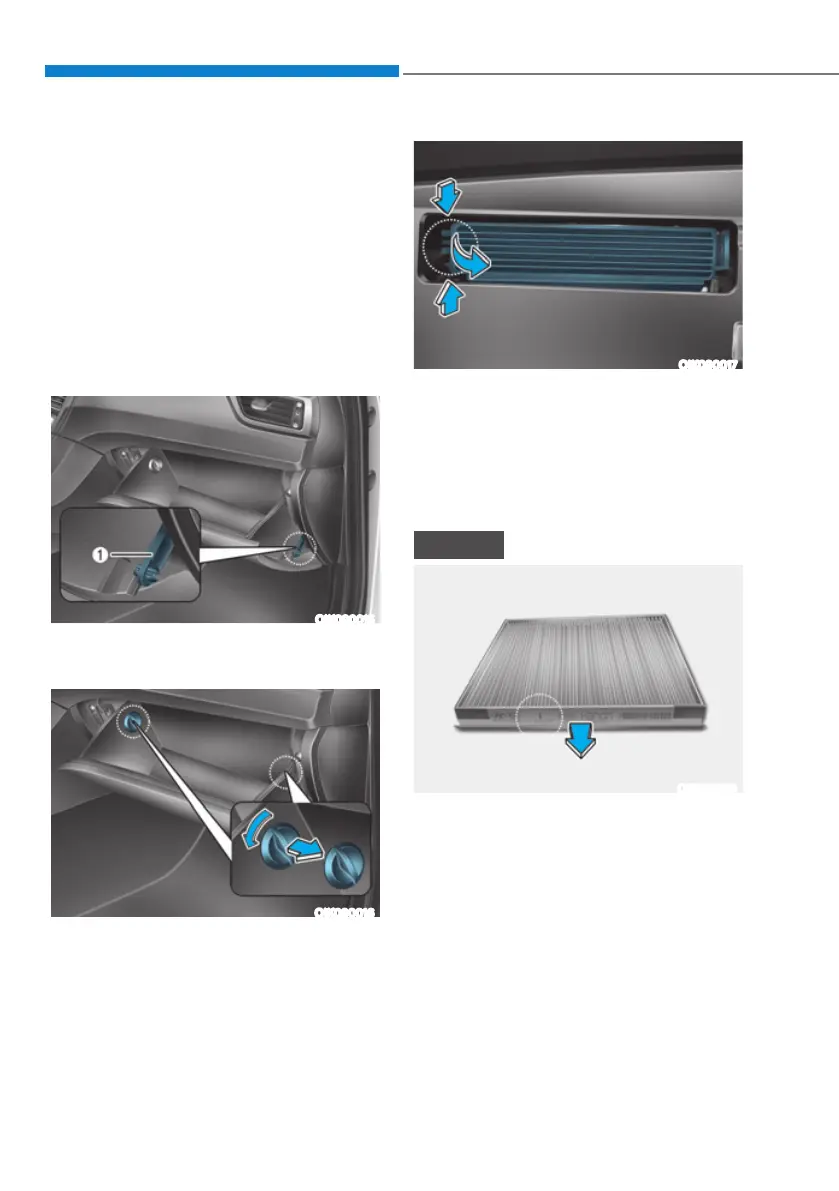

Filter Replacement
OIK090015
1. Open the glove box and remove the
support rod (1).
OIK090016
2. Remove the stoppers on both sides to
allow the glove box to hang freely on
the hinges.
OIK090017
3. Press and hold the lock (1) on the left
side of the cover.
4. Pull out (2) the cover
5. Replace the cabin air filter.
6. Reassemble in the reverse order of
disassembly.
NOTICE
OIK090018
Install a new cabin air filter in the
correct direction with the arrow symbol
ƢIDFLQJGRZQZDUGVWRSUHYHQWQRLVH
and reduce effectiveness.
