Getinge Lucea 100 Maintenance Manual

4
Maintenance and inspection procedures
Adjustments
18 / 44
Lucea 50_100
01740 EN 01

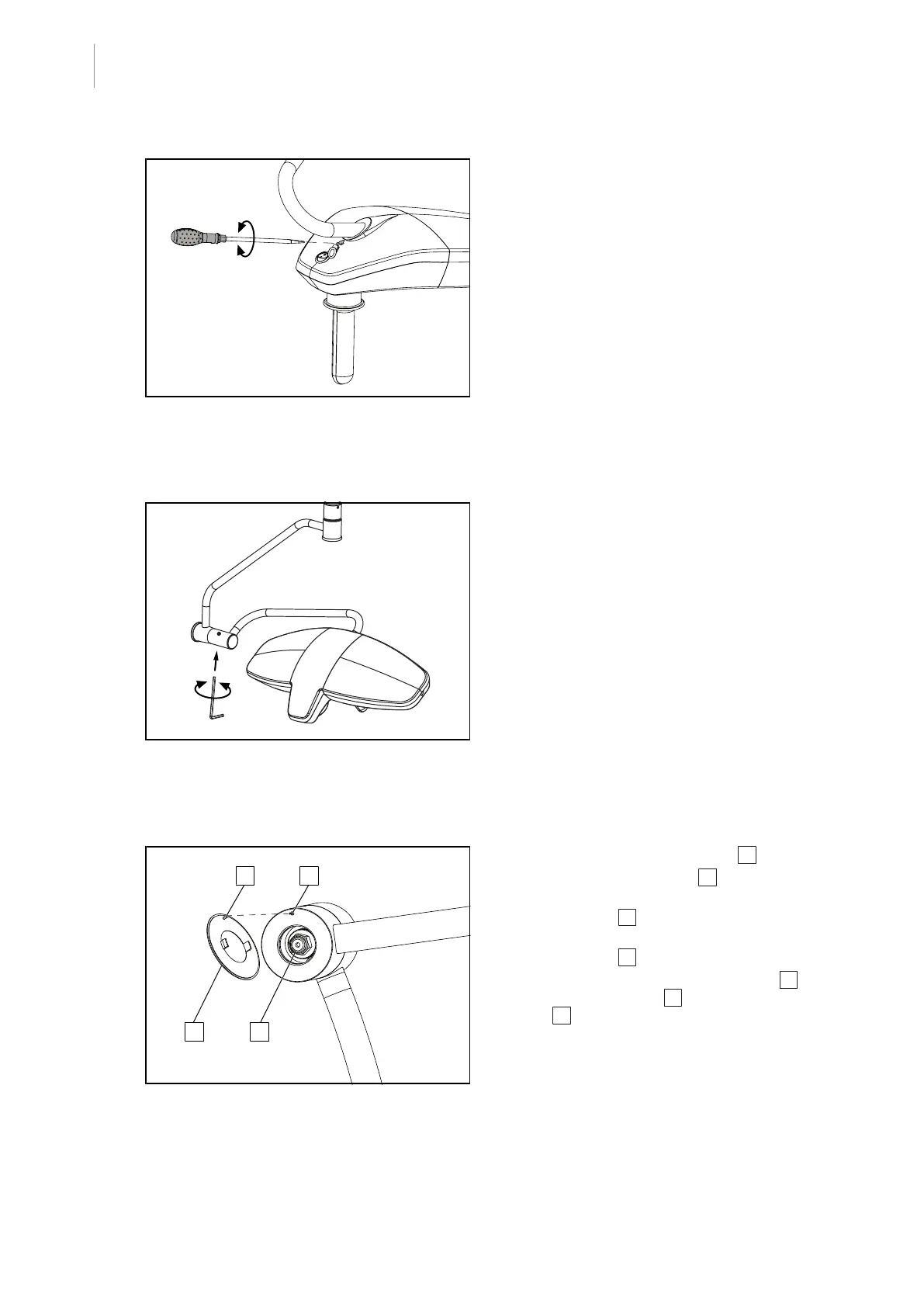

Fig.10: Insert the brake screw
• Insert the flat-bladed screwdriver.
• Tighten the screw to restrain the fork more
firmly or loosen it to allow more move-
ment.
4.3.2 Adjusting the brake on the fork (Lucea100 example)
+
-
Fig.11: Adjusting fork brake
• Adjust the brake on the fork using a 2.5-
mm Allen key.
4.3.3 Adjusting the mobile spring arm
1 2
3 4
Fig.12: Adjusting the mobile spring arm
• Take the cap off the spring arm 1 .
• Adjust the adjustment nut 2 :
– If the spring arm rises by itself, loosen
the locknut 2 .
– If the spring arm lowers by itself, tighten
the locknut 2 .
• Place the cap back on the spring arm 1 ,
ensuring that the pin 3 is aligned with the
hole 4 .
