GEZE E 212 R User Manual

GB 9
Technical dataE 212 R1 / E 212 R / E 212
6 Technical data

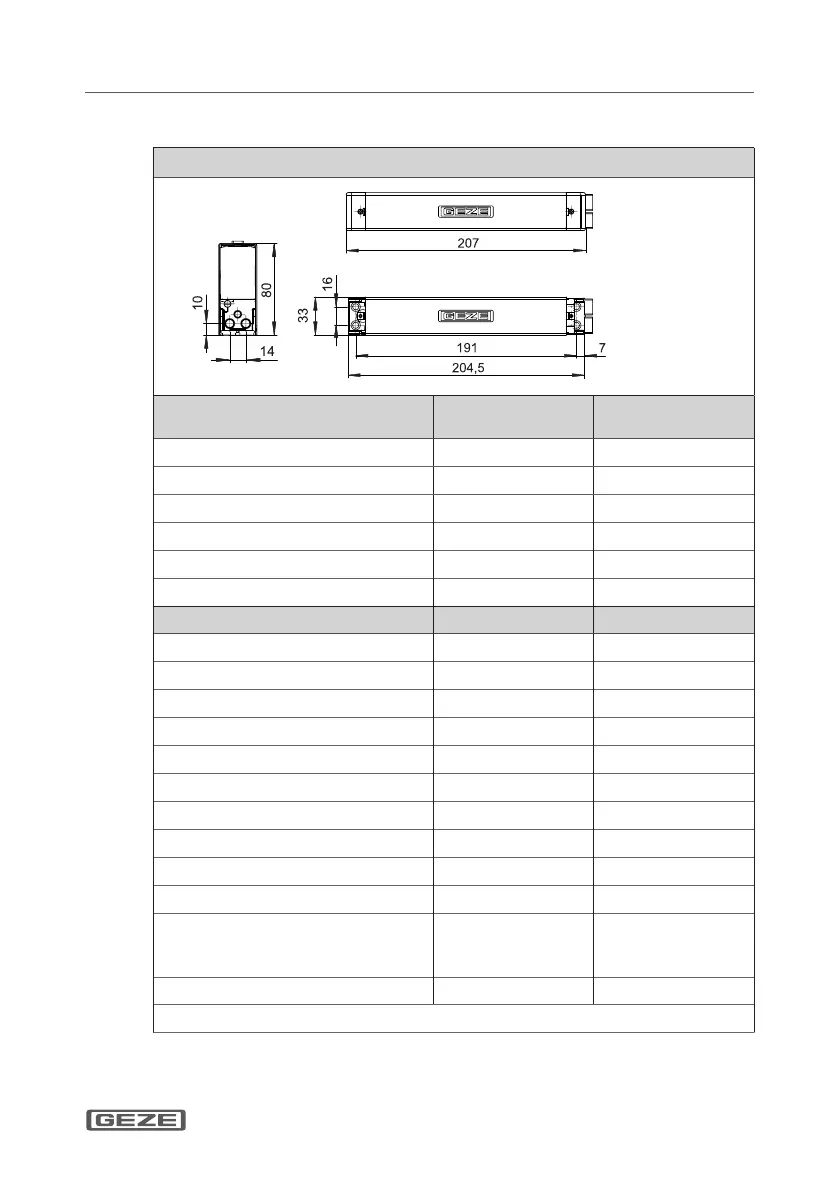

Main dimensions
Mechanical data E212 R1 230 V /
E 212 R 230 V AC
E 212 /24 V DC
Max. tensile force and force of pressure [N] 1500 1500
Stroke speed [mm/s] 1.5 1.5
End position cut-o Limit switch Limit switch
Weight [kg] 1.2 1.2
Max. stroke length [mm] 70 mm, adjustable 70 mm, adjustable
Setting range, stroke [mm] 42-70 42-70
Electrical data
Voltage 230 V AC +/- 10% 24 V DC +/- 25%
Frequency [Hz] 50 ---
Switch-on duration [%], S3 25 25
Short-term operation [min] 3 3
Power consumption [W] 50 29
Current consumption [A], approx. 0.2 1.2
Ambient temperature [°C] -20/+60 -20/+60
Enclosure rating [IP] / protection type IP 42 / I IP 42 / III
Type of connection Fixed connection Fixed connection
Max. connection cross-section [mm] 1.5 2.5
Supply cable E 212 R1: 4 x 1.5 mm
2
E 212 R: 5 x 1.5 mm²
with PE
3 x 1.5 mm
2
without PE
Area of application dry rooms dry rooms
Subject to technical modications!
The end position cut-o over the limit switch must be set properly.
