Gigabyte GA-EP43-UD3L User Manual

Hardware Installation- 13 -
1-3 Installing the CPU and CPU Cooler
Read the following guidelines before you begin to install the CPU:
• Make sure that the motherboard supports the CPU.
(Go to GIGABYTE's website for the latest CPU support list.)
• Always turn off the computer and unplug the power cord from the power outlet before
installing the CPU to prevent hardware damage.
• Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you
may locate the notches on both sides of the CPU and alignment keys on the CPU socket.)
• Apply an even and thin layer of thermal grease on the surface of the CPU.
• Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and
damage of the CPU may occur.
• Set the CPU host frequency in accordance with the CPU specifications. It is not recom-
mended that the system bus frequency be set beyond hardware specifications since it
does not meet the standard requirements for the peripherals. If you wish to set the fre-
quency beyond the standard specifications, please do so according to your hardware
specifications including the CPU, graphics card, memory, hard drive, etc.

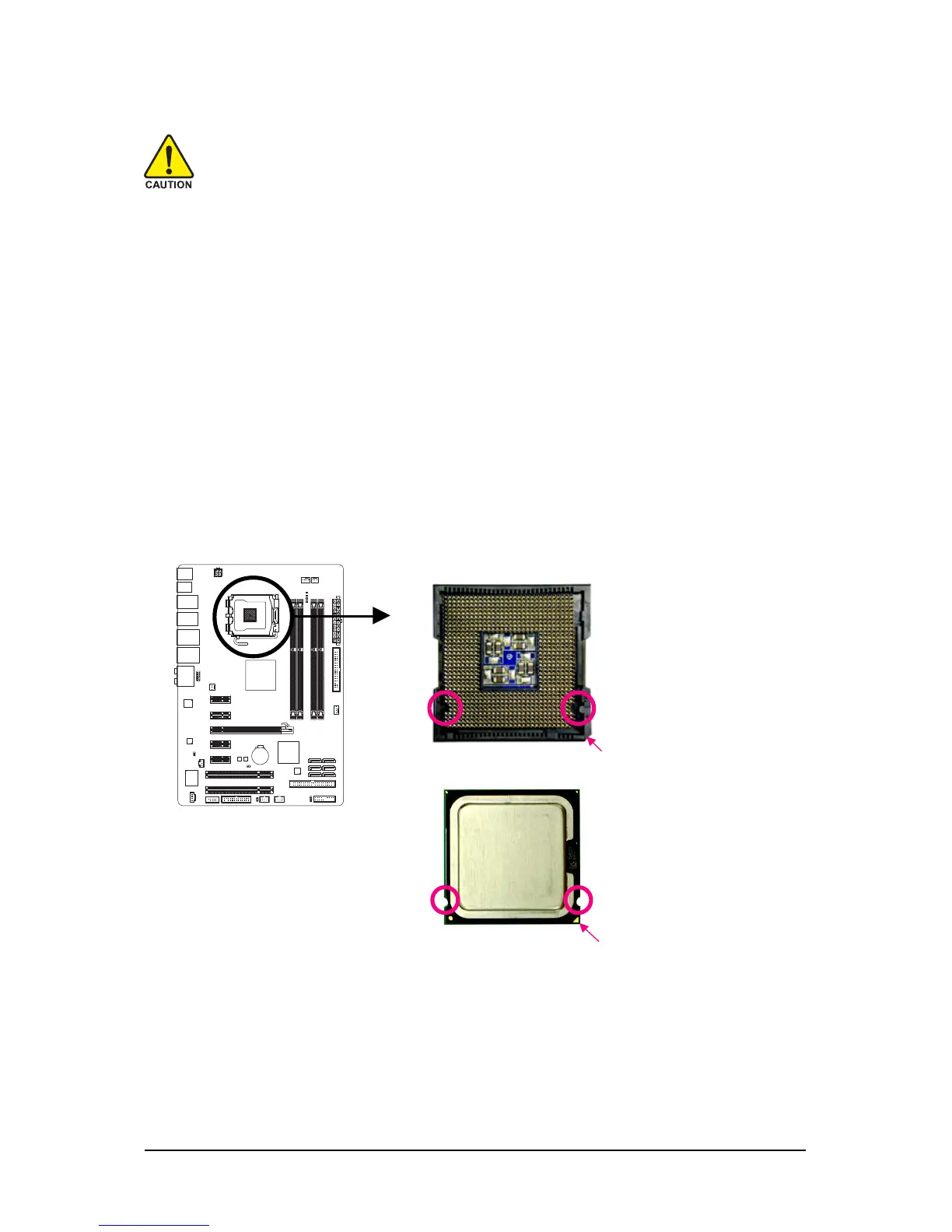

1-3-1 Installing the CPU
A. Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.
NotchNotch
Alignment Key
LGA 775 CPU
LGA775 CPU Socket
Pin One Corner of the CPU Socket
Triangle Pin One Marking on the CPU
Alignment Key

Gigabyte GA-EP43-UD3L Specifications

General

Memory voltage	1.8 V
Number of memory slots	4
Maximum internal memory	16 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
USB 2.0 connectors	2
Power fan connector	Yes
Number of SATA connectors	6
Number of EATX power connectors	1
Special features	@BIOS Q-Flash Virtual Dual BIOS Download Center Xpress Install Xpress Recovery2 EasyTune Dynamic Energy Saver Advanced Time Repair Q-Share
Controller interface type	iTE IT8718
USB 2.0 ports quantity	8
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC888
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows 9X/ME/Vista/XP
LAN controller	Realtek RTL8111C
Networking features	10/100/1000 Mbit
