Gigabyte GA-EP43-UD3L User Manual

Hardware Installation- 21 -

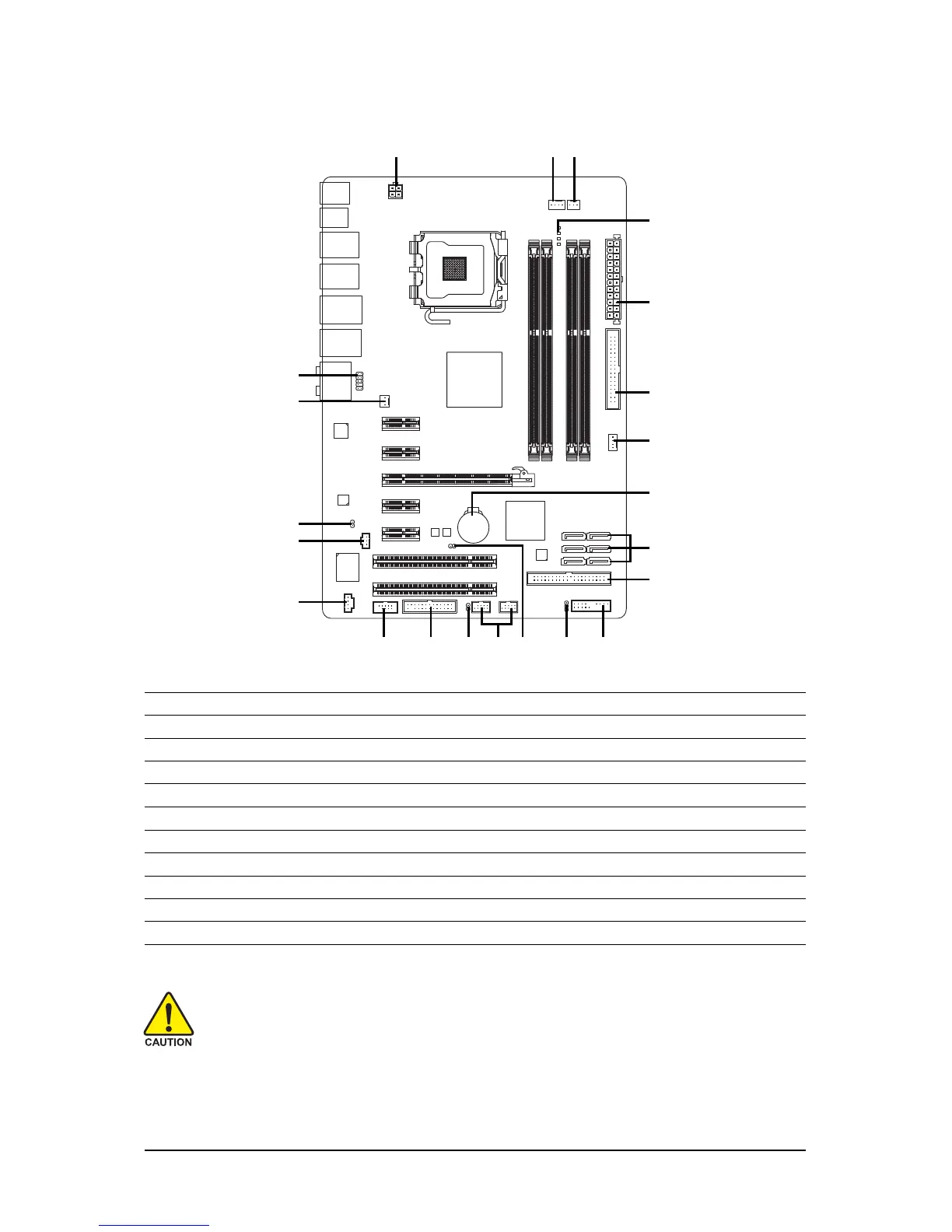

1-7 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the
power cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable
has been securely attached to the connector on the motherboard.
3
4
1) ATX_12V
2) ATX
3) CPU_FAN
4) SYS_FAN1/SYS_FAN2
5) PWR_FAN
6) FDD
7) IDE
8) SATA2_0/1/2/3/4/5
9) PWR_LED
10) F_AUDIO
11) F_PANEL
12) CD_IN
13) SPDIF_I
14) SPDIF_O
15) F_USB1/F_USB2
16) LPT
17) COMA
18) CI
19) CLR_CMOS
20) BATTERY
21) PHASE LED
10
1
2
4
5
6
7
8
9 11
12
13
14
151617 18 19
20
21

Gigabyte GA-EP43-UD3L Specifications

General

Memory voltage	1.8 V
Number of memory slots	4
Maximum internal memory	16 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
USB 2.0 connectors	2
Power fan connector	Yes
Number of SATA connectors	6
Number of EATX power connectors	1
Special features	@BIOS Q-Flash Virtual Dual BIOS Download Center Xpress Install Xpress Recovery2 EasyTune Dynamic Energy Saver Advanced Time Repair Q-Share
Controller interface type	iTE IT8718
USB 2.0 ports quantity	8
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC888
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows 9X/ME/Vista/XP
LAN controller	Realtek RTL8111C
Networking features	10/100/1000 Mbit
