Gigabyte GA-EP43-UD3L User Manual

- 7 -

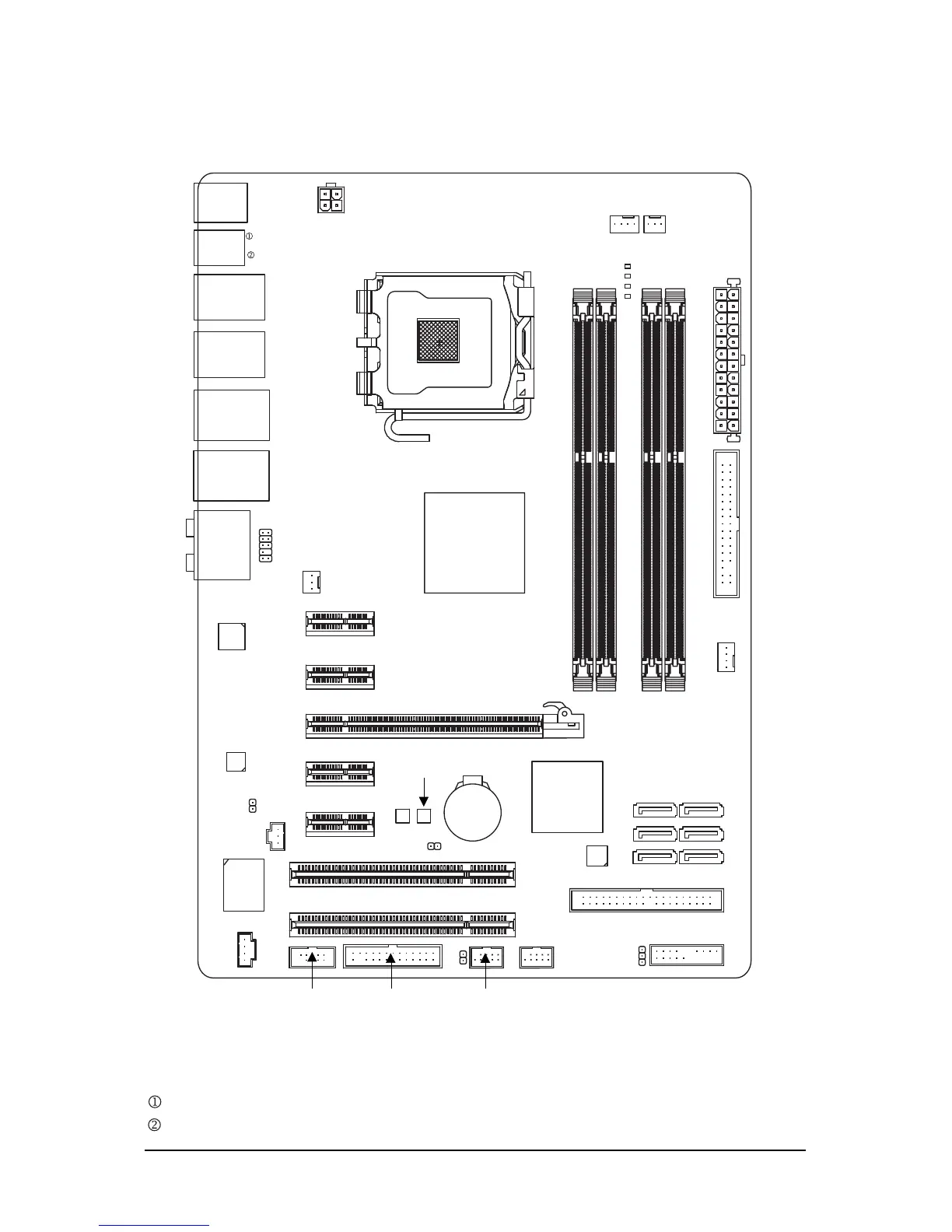

GA-EP43-UD3L/US3L Motherboard Layout
Only for GA-EP43-UD3L.
Only for GA-EP43-US3L.
"*" The GA-EP43-UD3L adopts All-Solid Capacitor design.
KB_MS
CPU_FAN
LGA775
ATX
GA-EP43-UD3L/US3L
F_AUDIO
ATX_12V
Intel
®
P43
SYS_FAN2
F_PANEL
PWR_LED
F_USB2
IDE
F_USB1
CD_IN
FDD
PCIEX1_1
CODEC
PCI1
PCI2
BATTERY
IT8718
Intel
®
ICH10
CLR_CMOS
CI
DDR2_1
DDR2_2
DDR2_3
DDR2_4
SPDIF_I
SATA2_3
RTL8111C
SATA2_2
SATA2_1
SATA2_0
PHASE LED
AUDIO
R_SPDIF
COAXIAL
R_USB_1
USB_LAN
PWR_FAN
JMicron 368
M_BIOS
SATA2_5
SATA2_4
LPT
COMA
SPDIF_O
PCIEX16
PCIEX1_2
PCIEX1_3
SYS_FAN1
R_USB_2
R_USB_3
B_BIOS
PCIEX1_4

Gigabyte GA-EP43-UD3L Specifications

General

Memory voltage	1.8 V
Number of memory slots	4
Maximum internal memory	16 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
USB 2.0 connectors	2
Power fan connector	Yes
Number of SATA connectors	6
Number of EATX power connectors	1
Special features	@BIOS Q-Flash Virtual Dual BIOS Download Center Xpress Install Xpress Recovery2 EasyTune Dynamic Energy Saver Advanced Time Repair Q-Share
Controller interface type	iTE IT8718
USB 2.0 ports quantity	8
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC888
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows 9X/ME/Vista/XP
LAN controller	Realtek RTL8111C
Networking features	10/100/1000 Mbit
