GA-EP43-UD3L/US3L Motherboard - 18 -

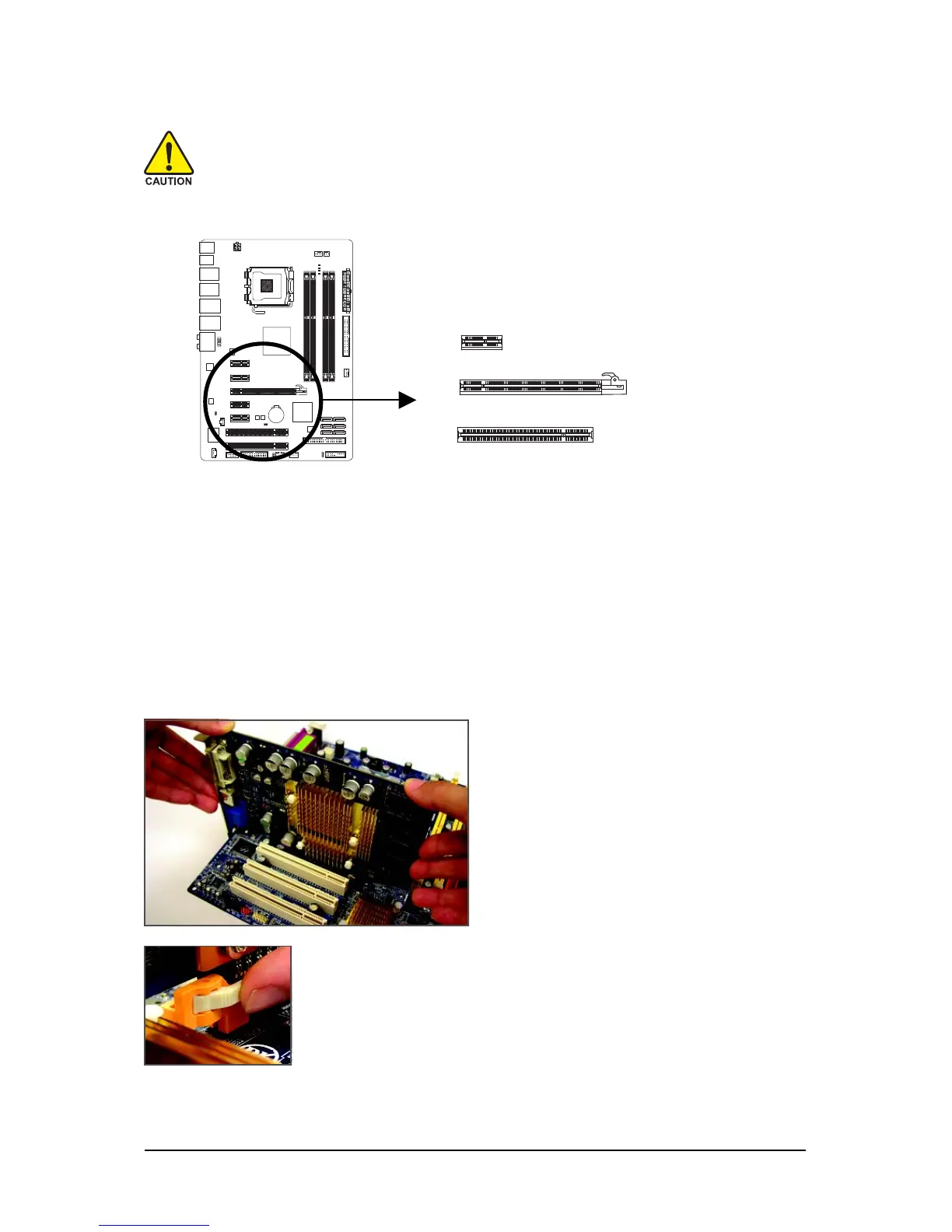

1-5 Installing an Expansion Card
Read the following guidelines before you begin to install an expansion card:
• Make sure the motherboard supports the expansion card. Carefully read the manual that
came with your expansion card.
• Always turn off the computer and unplug the power cord from the power outlet before
installing an expansion card to prevent hardware damage.
Follow the steps below to correctly install your expansion card in the expansion slot.
1. Locate an expansion slot that supports your card. Remove the metal slot cover from the chassis back panel.
2. Align the card with the slot, and press down on the card until it is fully seated in the slot.
3. Make sure the metal contacts on the card are completely inserted into the slot.
4. Secure the card's metal bracket to the chassis back panel with a screw.
5. After installing all expansion cards, replace the chassis cover(s).
6. Turn on your computer. If necessary, go to BIOS Setup to make any required BIOS changes for
your expansion card(s).
7. Install the driver provided with the expansion card in your operating system.
Example: Installing and Removing a PCI Express x16 Graphics Card:
• Installing a Graphics Card:
Gently push down on the top edge of the card
until it is fully inserted into the PCI Express x16
slot. Make sure the card is securely seated in
the slot and does not rock.
• Removing the Card:
Press the white latch at the end of the PCI Express x16 slot to release the
card and then pull the card straight up from the slot.
PCI Express x1 Slot
PCI Slot
PCI Express x16 Slot

Gigabyte GA-EP43-UD3L Specifications

General

Memory voltage	1.8 V
Number of memory slots	4
Maximum internal memory	16 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
USB 2.0 connectors	2
Power fan connector	Yes
Number of SATA connectors	6
Number of EATX power connectors	1
Special features	@BIOS Q-Flash Virtual Dual BIOS Download Center Xpress Install Xpress Recovery2 EasyTune Dynamic Energy Saver Advanced Time Repair Q-Share
Controller interface type	iTE IT8718
USB 2.0 ports quantity	8
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC888
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows 9X/ME/Vista/XP
LAN controller	Realtek RTL8111C
Networking features	10/100/1000 Mbit
