Gigabyte GA-G41MT-D3 User Manual

Hardware Installation - 12 -

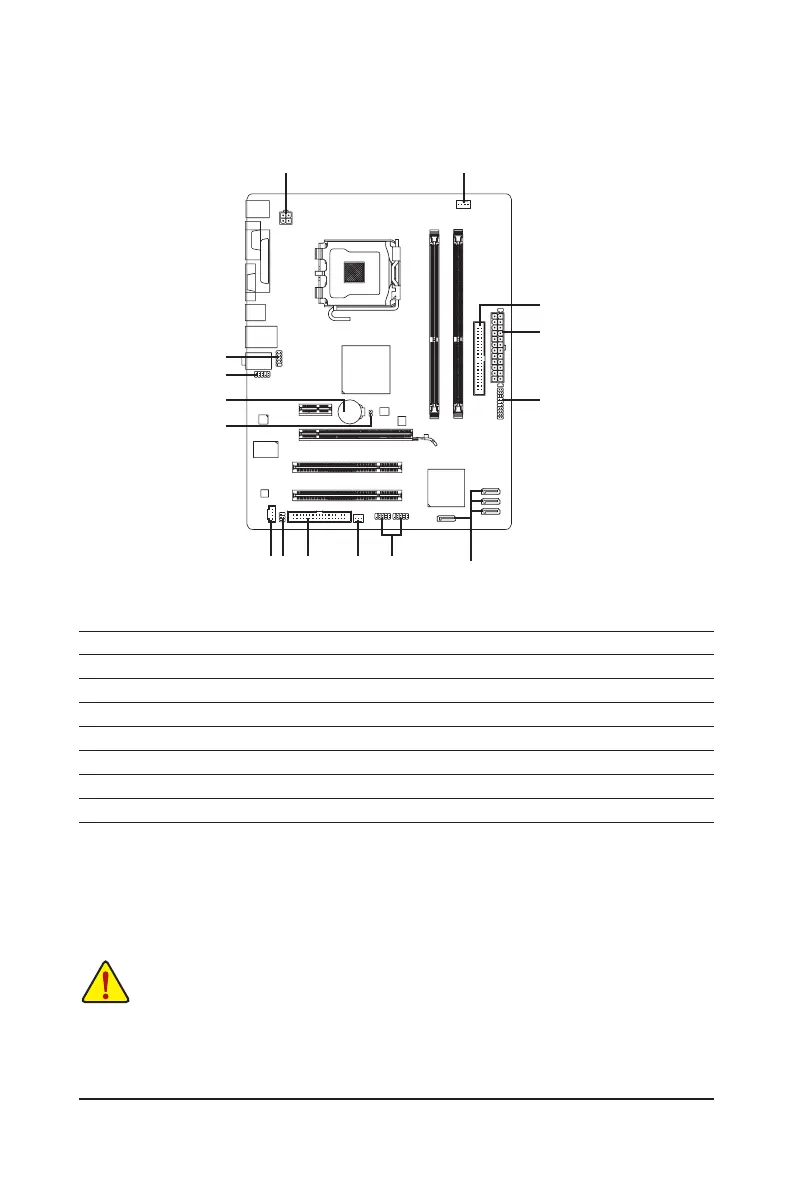

1-7 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the
power cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
1) ATX_12V
2) ATX
3) CPU_FAN
4) SYS_FAN
5) FDD
6) IDE
7) SATA2_0/1/2/3
8) F_PANEL
9) F_AUDIO
10) CD_IN
11) SPDIF_IO
12) F_USB1/F_USB2
13) COMB
14) CLR_CMOS
15) BATTERY
1
6
2
4
3
511
13
7
9
15
10
8
12
14

Gigabyte GA-G41MT-D3 Specifications

General

Memory voltage	1.5 V
Number of memory slots	2
Maximum internal memory	4 GB
Supported memory clock speeds	1066 MHz
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Processor system buses supported	1333 MHz
S/PDIF out connector	Yes
Number of SATA connectors	4
Number of EATX power connectors	1
Controller 2nd interface type	iTE IT8718
Headphone outputs	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC888B
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows 7/Vista/XP
Graphics card	GMA X4500
Parallel processing technology support	Not supported
Networking features	Gigabit Ethernet
BIOS type	AWARD
ACPI version	1.0
BIOS memory size	16 Mbit

Weight and Dimensions

Depth	194 mm
Width	244 mm
