Gigabyte GA-G41MT-D3 User Manual

Hardware Installation - 16 -

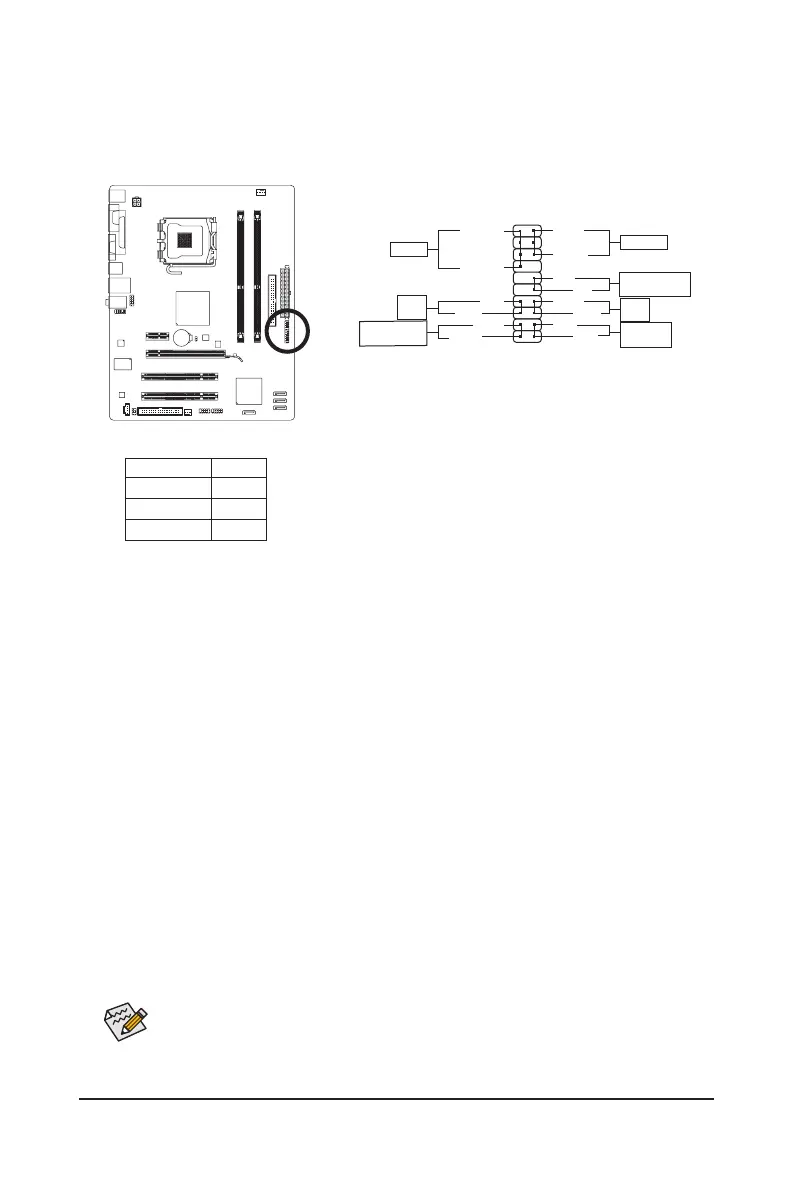

8) F_PANEL (Front Panel Header)
Connect the power switch, reset switch, speaker and system status indicator on the chassis front panel
to this header according to the pin assignments below. Note the positive and negative pins before con-
necting the cables.
The front panel design may differ by chassis. A front panel module mainly consists of power
switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your
chassis front panel module to this header, make sure the wire assignments and the pin assign-
ments are matched correctly.
DEBUG PORT
G.QBOFM
Power LED
1
2
19
20
CI-
CI+
PWR-
PWR+
MSG-
PW-
SPEAK+
SPEAK-
MSG+
PW+
Message/Power/
Sleep LED
Speaker
Power
Switch
HD-
RES+
HD+
RES-
Hard Drive
Activity LED
Reset
Switch
Chassis Intrusion
Header
• PW (Power Switch):
Connects to the power switch on the chassis front panel. You may congure the way to turn off your
system using the power switch (refer to Chapter 2, "BIOS Setup," "Power Management Setup," for
more information).
• SPEAK (Speaker):
Connects to the speaker on the chassis front panel. The system reports system startup status by is-
suing a beep code. One single short beep will be heard if no problem is detected at system startup. If
a problem is detected, the BIOS may issue beeps in different patterns to indicate the problem.
• HD (Hard Drive Activity LED)
Connects to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive
is reading or writing data.
• RES (Reset Switch):
Connects to the reset switch on the chassis front panel. Press the reset switch to restart the computer
if the computer freezes and fails to perform a normal restart.
• CI (Chassis Intrusion Header):
Connects to the chassis intrusion switch/sensor on the chassis that can detect if the chassis cover
has been removed. This function requires a chassis with a chassis intrusion switch/sensor.
• MSG/PWR (Message/Power/Sleep LED):
Connects to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the sys-
tem is in S1 sleep state. The LED is off when the system is in S3/S4 sleep
state or powered off (S5).
System Status LED
S0 On
S1 Blinking
S3/S4/S5 Off

Gigabyte GA-G41MT-D3 Specifications

General

Memory voltage	1.5 V
Number of memory slots	2
Maximum internal memory	4 GB
Supported memory clock speeds	1066 MHz
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Processor system buses supported	1333 MHz
S/PDIF out connector	Yes
Number of SATA connectors	4
Number of EATX power connectors	1
Controller 2nd interface type	iTE IT8718
Headphone outputs	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC888B
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows 7/Vista/XP
Graphics card	GMA X4500
Parallel processing technology support	Not supported
Networking features	Gigabit Ethernet
BIOS type	AWARD
ACPI version	1.0
BIOS memory size	16 Mbit

Weight and Dimensions

Depth	194 mm
Width	244 mm
