Gigabyte GA-G41MT-D3 User Manual

- 5 -

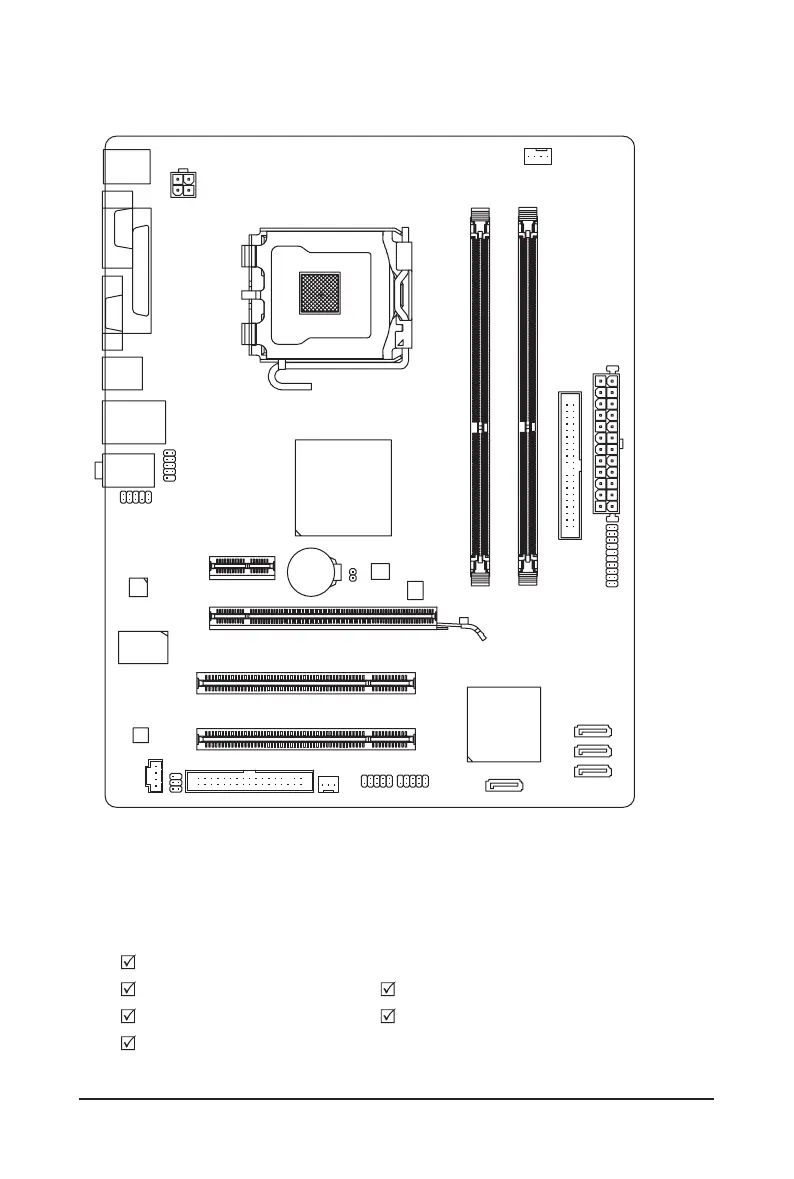

GA-G41MT-D3/GA-G41MT-ES2L Motherboard Layout
KB_MS
COMA
CPU_FAN
LGA775
GA-G41MT-D3/GA-G41MT-ES2L
CD_IN
F_AUDIO
AUDIO
B_BIOS
M_BIOS
IDE
SPDIF_IO
DDR3_1
DDR3_2
BATTERY
ATX_12V
Intel
®
G41
Intel
®
ICH7
FDD
PCIEX16
VGA
USB_LAN
CLR_CMOS
CODEC
SYS_FAN
COMB
F_USB1
F_USB2
F_PANEL
SATA2_0
SATA2_1
SATA2_2
SATA2_3
R_USB
PCI2
PCI1
PCIEX1
LPT
ATX
Realtek
RTL8111D/E
iTE
IT8718
Box Contents
GA-G41MT-D3 or GA-G41MT-ES2L motherboard
Motherboard driver disk Two SATA cables
User's Manual I/O Shield
One IDE cable
The box contents above are for reference only and the actual items shall depend on the product package you obtain.
"*" The GA-G41MT-D3 adopts All-Solid Capacitor design.

Gigabyte GA-G41MT-D3 Specifications

General

Memory voltage	1.5 V
Number of memory slots	2
Maximum internal memory	4 GB
Supported memory clock speeds	1066 MHz
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Processor system buses supported	1333 MHz
S/PDIF out connector	Yes
Number of SATA connectors	4
Number of EATX power connectors	1
Controller 2nd interface type	iTE IT8718
Headphone outputs	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC888B
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows 7/Vista/XP
Graphics card	GMA X4500
Parallel processing technology support	Not supported
Networking features	Gigabit Ethernet
BIOS type	AWARD
ACPI version	1.0
BIOS memory size	16 Mbit

Weight and Dimensions

Depth	194 mm
Width	244 mm
