Gigabyte GA-P55A-UD3 User Manual

- 21 - Hardware Installation

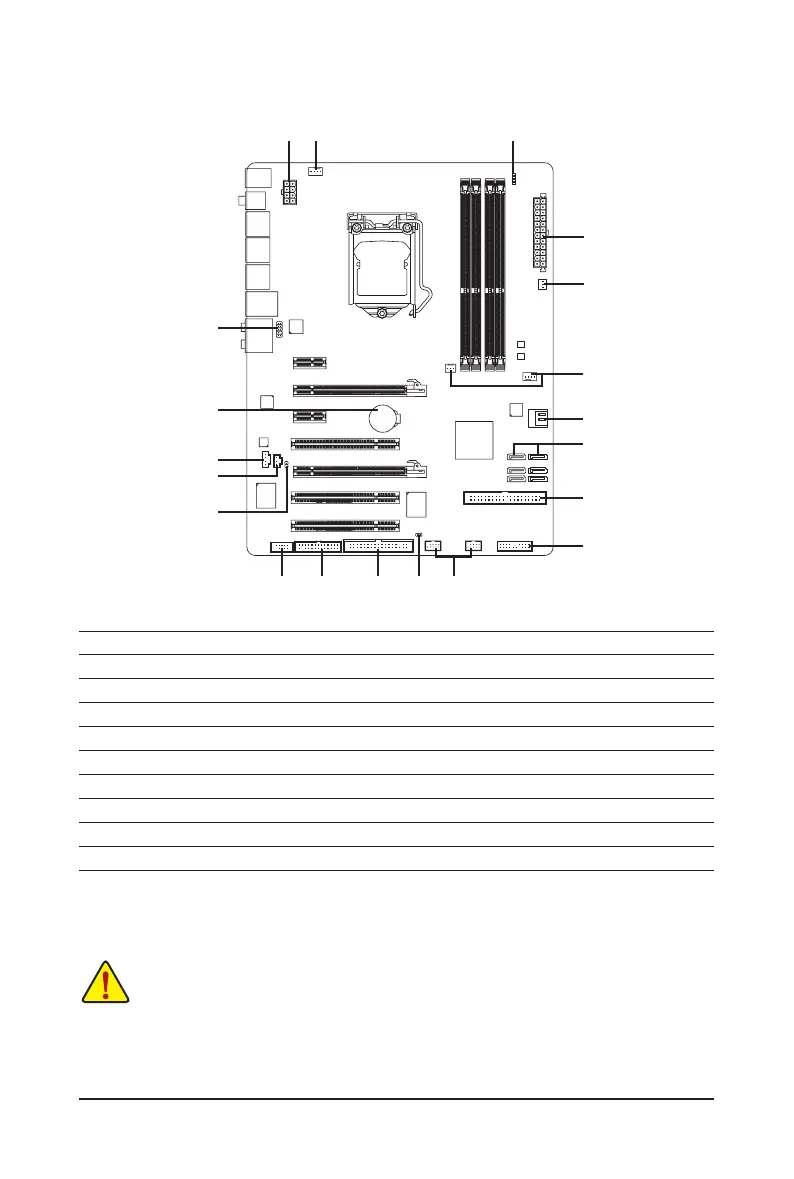

1-7 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the
power cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
1
2
3
5
7
9
617 16
14
13
15
8
4
12
1) ATX_12V_2X4
2) ATX
3) CPU_FAN
4) SYS_FAN1/2
5) PWR_FAN
6) FDD
7) IDE
8) SATA2_0/1/2/3/4/5
9) GSATA3_6/7
10) BAT
11) F_PANEL
12) F_AUDIO
13) CD_IN
14) SPDIF_I
15) SPDIF_O
16) F_USB1/F_USB2
17) LPT
18) COMA
19) CLR_CMOS
20) PHASE LED
18
20
11
19
10

Gigabyte GA-P55A-UD3 Specifications

General

Non-ECC	Yes
Memory voltage	1.5 V
Number of memory slots	4
Maximum internal memory	16 GB
Processor socket	LGA 1156 (Socket H)
Processor manufacturer	Intel
USB 2.0 connectors	2
Number of SATA connectors	8
Number of EATX power connectors	0
Special features	@BIOS Q-Flash Xpress BIOS Rescue Download Center Xpress Install Xpress Recovery2
Controller interface type	iTE IT8720
Controller 2nd interface type	ATA-133/100/66/33
Headphone outputs	6
PS/2 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC888
Motherboard chipset	Intel® P55
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Win XP, Vista, 7
PCI slots	3
Bundled software	Norton Internet Security
Networking features	10/100/1000 Mbit
RAID levels	0, 1, 10
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
