System Hardware Installation
- 36 -
3
-
11
Replacing the Po
wer Supply

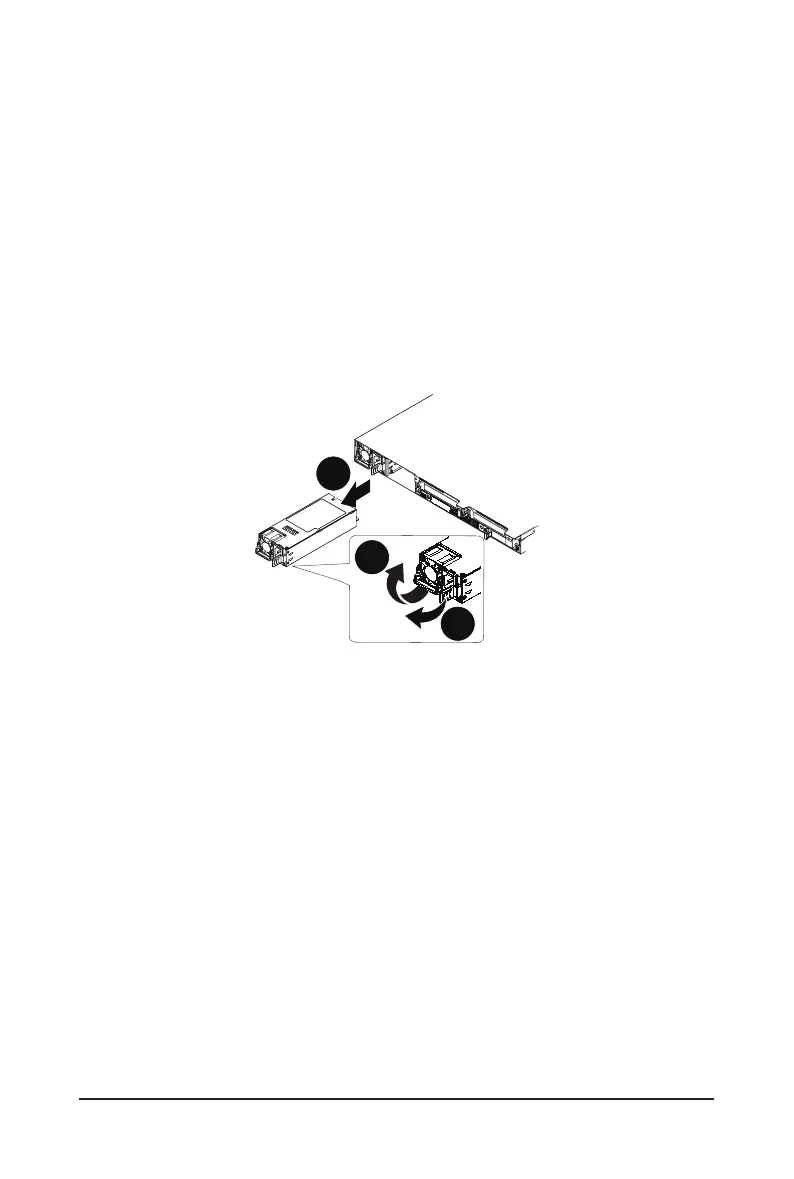

Follow these instructions to replace the power supply:
1.
Press the retaining clip on the right side of the power supply along the direction of the arrow
.
2.
Pull out the power supply handle at the same time and pull out the power supply
.
3.
Insert
the
replacement
power
supply
rmly
into
the
chassis.
Connect
the
AC
power
cord
to
the
replacement power supply
.
1
2
3
35
37
Table of Contents
Default Chapter
7
Table of Contents
7
Chapter 1 Hardware Installation
10
Installation Precautions
10
Product Specifications
11
System Block Diagram
14
Chapter 2 System Appearance
15
Front View
15
Rear View
16
Front Panel LED and Buttons
17
Rear System LAN Leds
18
Power Supply Unit (PSU) LED
19
Hard Disk Drive Leds
20
Chapter 3 System Hardware Installation
21
Removing Chassis Cover
22
Removing and Installing the Fan Duct
23
Removing the Heat Sink
24
Installing the CPU
25
Installing the Memory
27
Eight Channel Memory Configuration
27
Installing the Memory
28
DIMM Population Table
28
Installing the PCI Expansion Card
29
Installing the Mezzanine Card
30
Ocp 3.0
30
Ocp 2.0
31
Installing the Hard Disk Drive
32
Installing the M.2 Device and Heat Sink
34
Replacing the Fan Assembly
35
Replacing the Power Supply
36
Cable Routing
37
Chapter 4 Motherboard Components
40
Motherboard Components
40
Jumper Setting
42
Backplane Board Storage Connector
43
Cbp1044
43
Chapter 5 BIOS Setup
44
The Main Menu
46
Advanced Menu
49
Trusted Computing
50
Serial Port Console Redirection
51
SIO Configuration
55
PCI Subsystem Settings
56
USB Configuration
57
Network Stack Configuration
58
Post Report Configuration
59
Nvme Configuration
60
Chipset Configuration
61
Tls Auth Configuration
62
Iscsi Configuration
63
Intel(R) I350 Gigabit Network Connection
64
VLAN Configuration
66
Driver Health
67
Chipset Menu
68
Processor Configuration
70
Common Refcode Configuration
72
UPI Configuration
73
Memory Configuration
74
IIO Configuration
77
Advanced Power Management Configuration
79
PCH Configuration
81
Miscellaneous Configuration
83
Server ME Configuration
84
Runtime Error Logging Settings
85
Power Policy
87
Server Management Menu
89
System Event Log
91
View FRU Information
92
BMC VLAN Configuration
93
BMC Network Configuration
94
Ipv6 BMC Network Configuration
95
Security Menu
96
Secure Boot
97
Boot Menu
