- 93 -
BIOS Setup
5-4-3

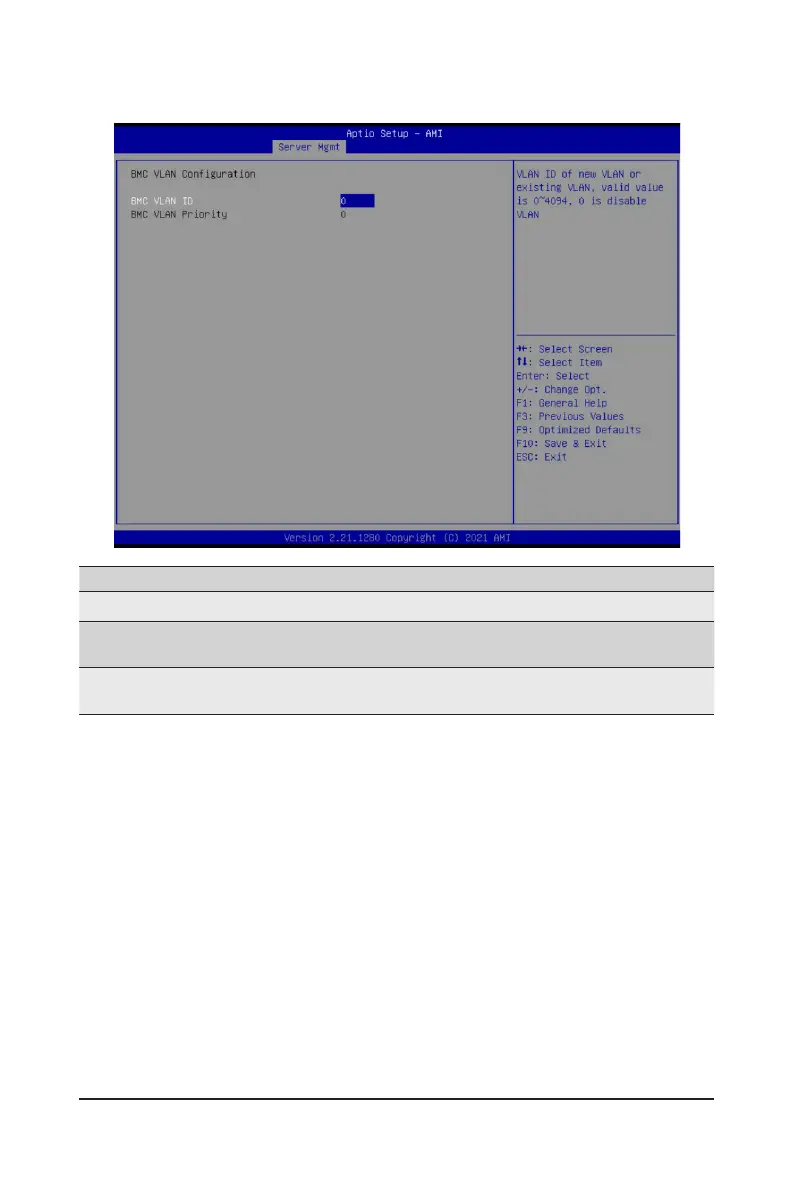

BMC VLAN Conguration
Parameter
Description
BMC VLAN Conguration
BMC VLAN ID
Select to congure BMC VLAN ID. The valid range is from 0 to 4094. When
set to 0, BMC VLAN ID will be disabled.
BMC VLAN Priority
Select to congure BMC VLAN Priority
. The valid range is from 0 to 7.
When BMC VLAN ID is set to 0, BMC VLAN Priority will not be selected.
