Motherboard Components
- 42 -
4
-2

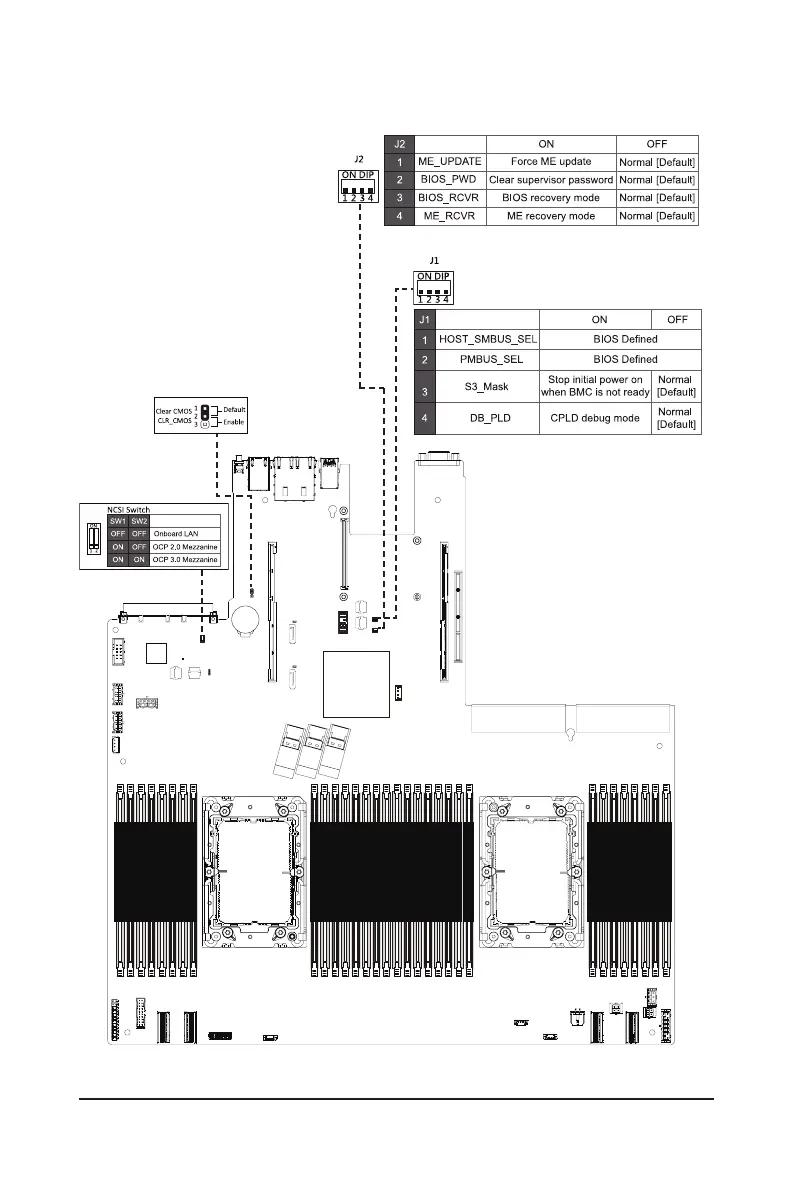

Jumper Setting
CPU1
CPU0
DIMM_P0_B0
DIMM_P0_B1
DIMM_P0_A0
DIMM_P0_A1
DIMM_P0_D0
DIMM_P0_D1
DIMM_P0_C0
DIMM_P0_C1
DIMM_P0_G1
DIMM_P0_G0
DIMM_P0_H1
DIMM_P0_H0
DIMM_P0_E1
DIMM_P0_E0
DIMM_P0_F1
DIMM_P0_F0
DIMM_P1_L1
DIMM_P1_L0
DIMM_P1_K1
DIMM_P1_K0
DIMM_P1_I1
DIMM_P1_I0
DIMM_P1_J1
DIMM_P1_J0
DIMM_P1_M0
DIMM_P1_M1
DIMM_P1_N0
DIMM_P1_N1
DIMM_P1_P0
DIMM_P1_P1
DIMM_P1_O0
DIMM_P1_O1
41
43
