Gigabyte R182-340 User Manual

Motherboard Components - 40 -
Chapter 4 Motherboard Components

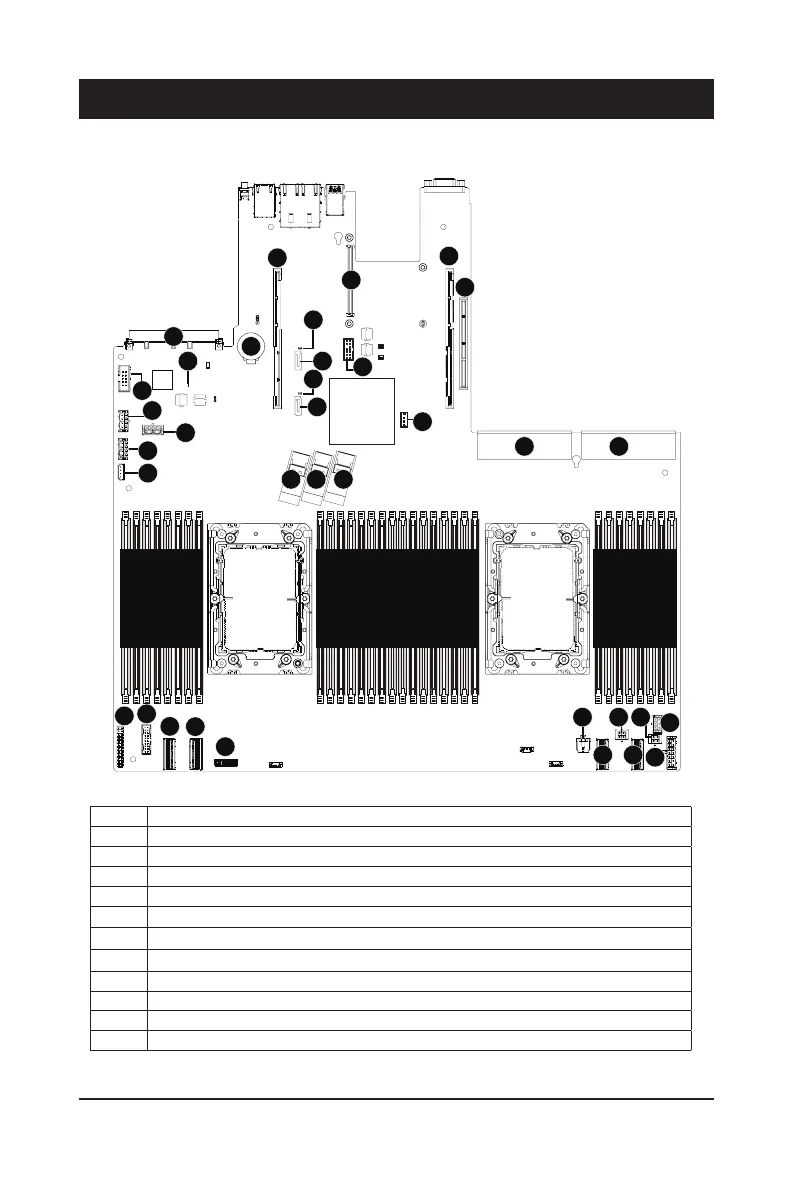

4-1 Motherboard Components
Item Description
1 HDD Back Plane Board Connector
2 Slimline SAS Connector (U2_P0_0/PCIe Gen4 Signal)
3 Slimline SAS Connector (U2_P0_1/PCIe Gen4 Signal)
4 Front Panel USB 3.0 Connector
5 Front Panel Connector
6 IPMB Connector
7 2 x 4 GPU Card Power Connector (P12V_GPU2)
8 2 x 4 GPU Card Power Connector (P12V_GPU3)
9 2 x 4 GPU Card Power Connector (P12V_GPU1)
10 Serial Port Cable Connector
11 OCP Mezzanine Connector (OCP 3.0/SFF Type/Gen4 x16)
CPU1
CPU0
DIMM_P0_B0 DIMM_P0_B1 DIMM_P0_A0 DIMM_P0_A1 DIMM_P0_D0 DIMM_P0_D1 DIMM_P0_C0 DIMM_P0_C1 DIMM_P0_G1 DIMM_P0_G0 DIMM_P0_H1 DIMM_P0_H0 DIMM_P0_E1 DIMM_P0_E0 DIMM_P0_F1 DIMM_P0_F0 DIMM_P1_L1 DIMM_P1_L0 DIMM_P1_K1 DIMM_P1_K0 DIMM_P1_I1 DIMM_P1_I0
DIMM_P1_J1
DIMM_P1_J0 DIMM_P1_M0 DIMM_P1_M1 DIMM_P1_N0 DIMM_P1_N1 DIMM_P1_P0 DIMM_P1_P1 DIMM_P1_O0 DIMM_P1_O1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19 20 21
24
25
26
27 28
30
29
31
3233
3534
22
23
