Go Power GP-IC-2000 User Manual

gpelectric.com | [page 29]
AC GROUND WIRING
• Connect the ground (Green) wire from the main panel to the AC Ground IN terminal. Tighten the terminal securely.
• Connect the ground (Green) wire from the sub panel to the AC Ground OUT terminal. Tighten the terminal securely.

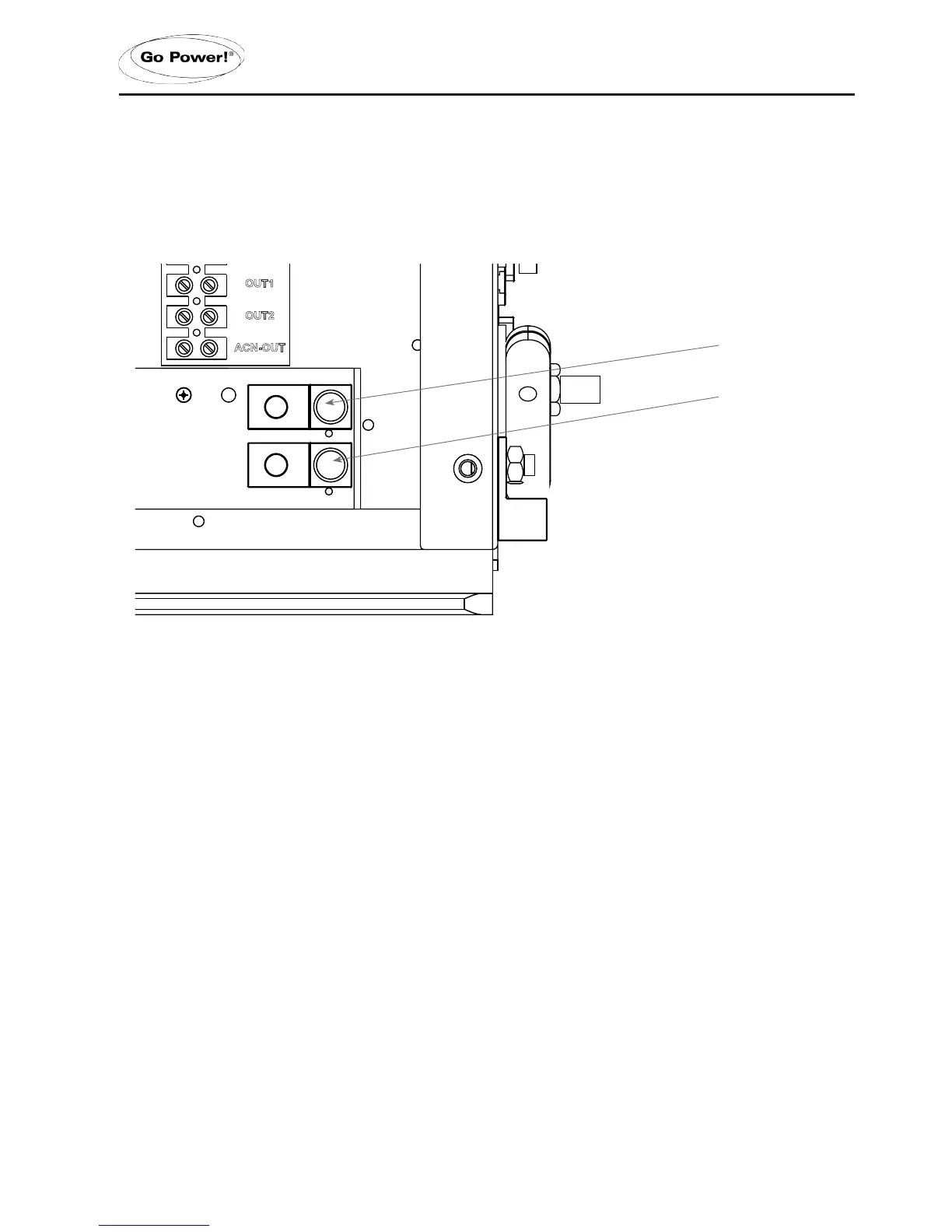

Note: The Ground terminals are lugs and they are not labelled within the compartment. See diagram below.
INSTALLATION
AC WIRING CHECKS
• Ensureallwiresaresecured.InRVapplicationsuseziptiesorothernon-conductivefastenerstopreventcha󰀩ng
or damage from movement and vibration.
• Ensure strain reliefs or grommets are in place to prevent damage to the wiring or conduit where it passes through
the walls/bulkheads or other openings.
• If using large diameter multi-core cable, add additional external non-conductive strain relief(s) to prevent damage
to the Inverter/Charger case.
• After checking all AC connections and ensuring all the terminal set screws are tightened securely, replace the AC
Cover Plate, 3 x Phillips set screws, and the covers on the main and sub panels.
AC WIRING FOR MARINE APPLICATIONS
To comply with American Boat and Yacht Council (ABYC) requirements for marine installations, all wire connections into the AC
terminal blocks must be protected with stainless steel wire protectors such as pin terminals to prevent wire damage from the
set screw.
IN1
IN2
OUT1
OUT2
ACN-OUT
ACN-IN
IN1
IN2
OUT1
OUT2
ACN-OUT
ACN-IN
size : 55x36.5mm
AC Ground IN
(from main panel)
AC Ground OUT
(to sub panel)

Go Power GP-IC-2000 Specifications

General

Output Power	2000W
Input Voltage	120 VAC
Output Voltage	12 VDC
Charging Method	Multi-stage charging
Weight	11.2 lbs (5.1 kg)
Dimensions	11.8 x 8.3 x 3.5 in (300 x 210 x 90 mm)
Charger Type	Inverter charger
Battery Compatibility	12V batteries
Battery Type	AGM, Gel, Flooded
Protection Features	Short circuit, over temperature
