golmar Nexa Modular G2+ User Manual

58

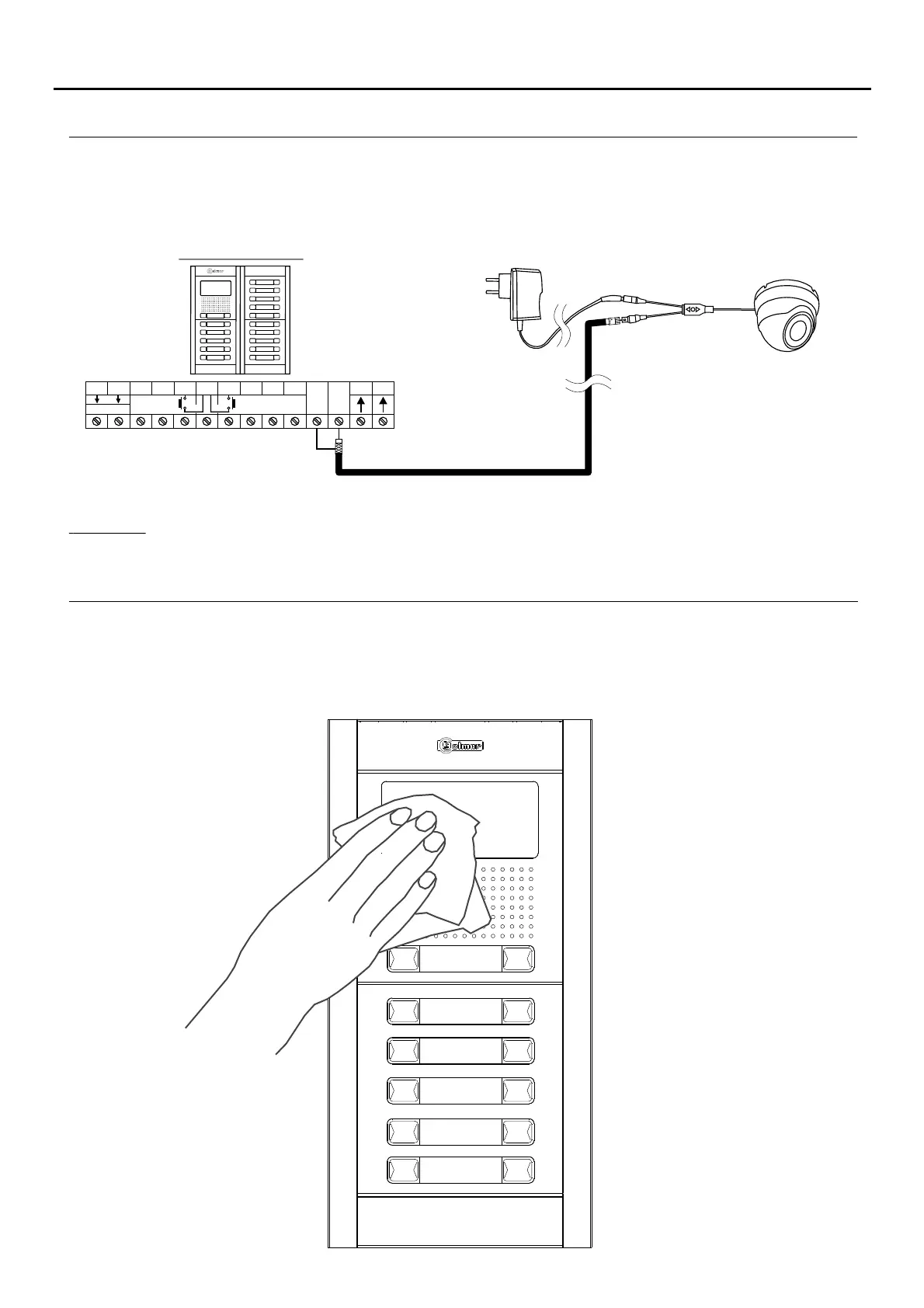

It is possible to connect a GolmarAHD4-3601x analogue CCTV to the door panel, which can be viewed from the monitor,
( n " ").see corresponding monitor to activate the external camera CCTV i Special Codes “PSU-121" power supply unit
required.
110~240Vac
Mains
L
R
POWER SUPPLY
PSU-121 (Cód. 31690144)
ANALOGUE CCTV CAMERA
AHD4-3601x (Cód. 31600144)
JOYSTICK
Access door panel
NA2
+
AP-
C1
NA1
AP+
C2
AP+
GND
BUSBUS
Relé 2Relé 1
_
12Vdc
NC2
CCTV
CONNECTION OF AN EXTERNAL CAMERA
Important: Set the camera with a CVBS analogue signal, as described in the accompanying AHD4-3601x camera
manual.
CLEANING THE DOOR PANEL
- Do not use solvents, detergents or cleaning products that contain acids, vinegar or abrasive components.
-Always wipe the door panel in the same direction, from top to bottom.
-After cleaning the door panel, remove any moisture with a soft dry cloth that sheds no fibres.
- Use a soft damp cloth (not wet) that sheds no fibres.
NEXA MODULAR G2+ AUDIO AND VIDEO DOOR ENTRY SYSTEM - BUILDING
