INSTALLATION OF THE DOOR PANEL
Fastening the frame to the embedding box:

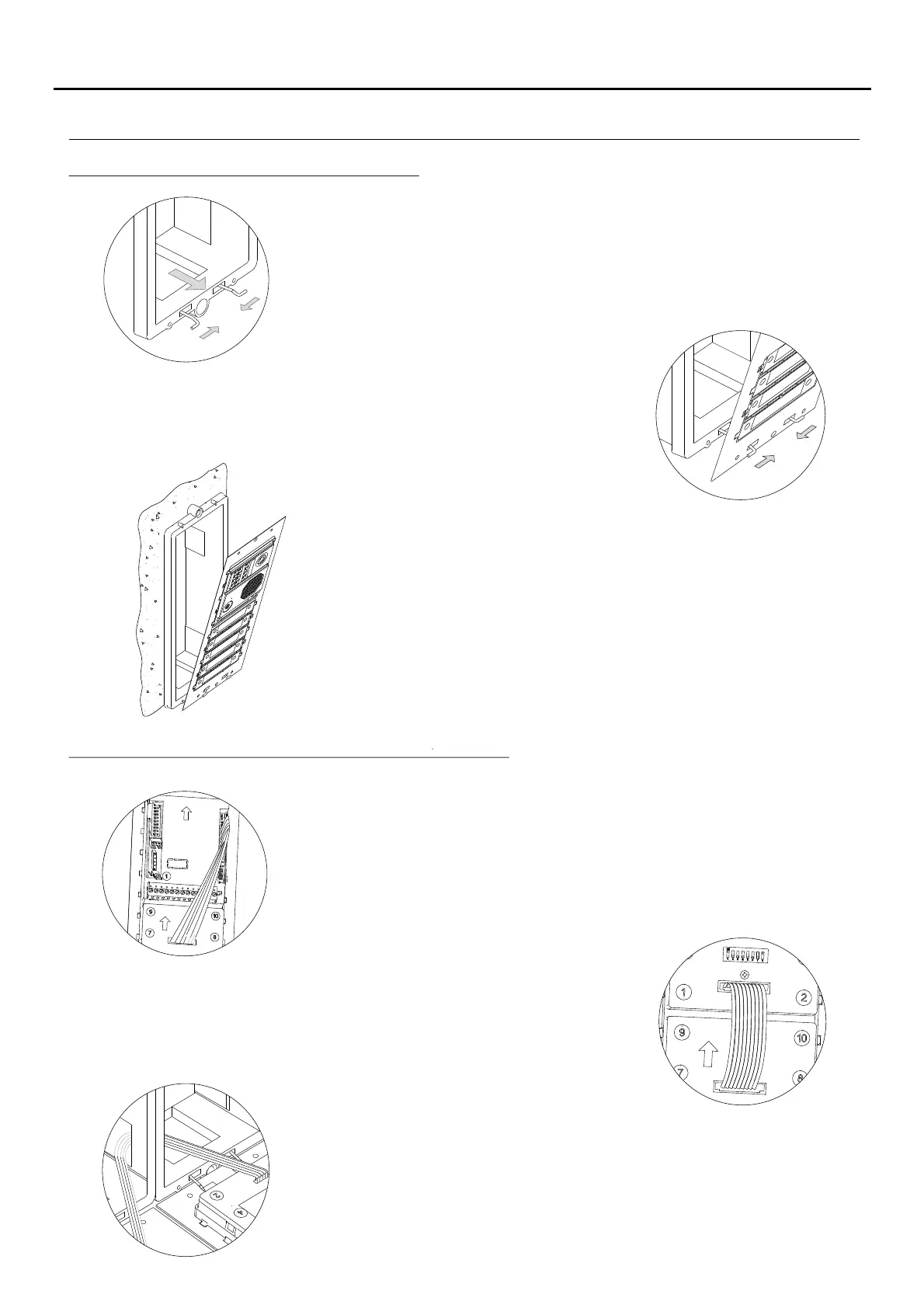

Insert the spring hinge which attaches to the product in the embedding
box, as shown in the drawing.
To fasten the frame to the embedding box, insert the spring
hinge into the housings provided for this purpose in the
frame, as shown in the drawing.
The frame can now be tilted horizontally to enable
sound module and button module connection
and setting.
Between EL610D button modules in the same embedding box, insert the short
connection cable from the lower connector of the first button module into the
upper connector of the second button module, as shown in the drawing.
Insert one end of the short connection cable supplied with the EL610D
product into the sound module connector and the other end into the
connector situated at the top of the EL610D button module, as shown in the
drawing.
Between EL610D button modules in different embedding boxes, insert one
end of the short connection cable into the lower connector of the final
EL610D module in the first embedding box and the other end into the
middle connector of the last EL610D button module situated at the bottom
of the second embedding box, as shown in the drawing.
Connecting the buttons to the short connection cable:
