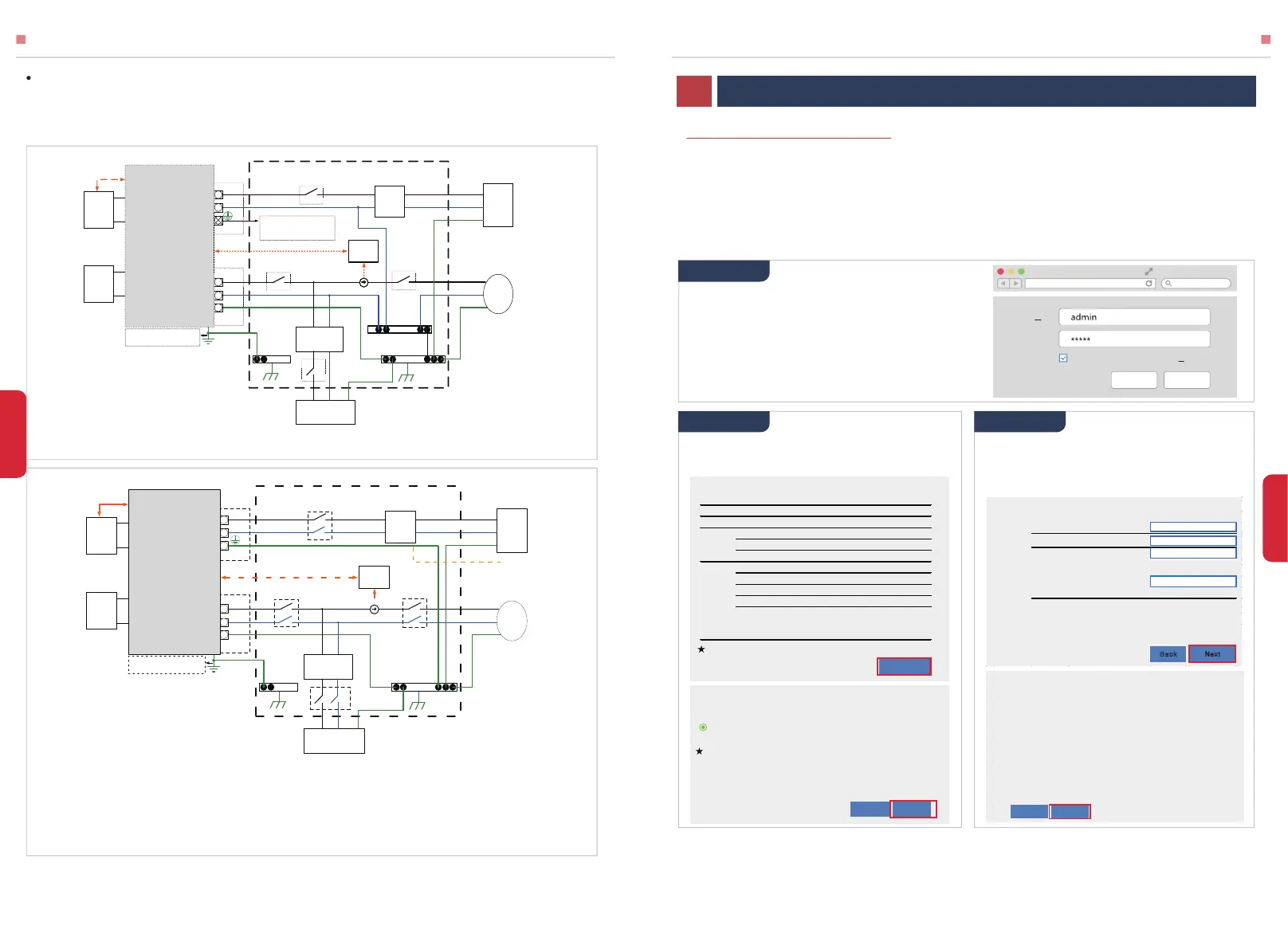

• This part shows configuration on web page
• Wi-Fi configuration is absolutely necessary for online monitoring and after-sales maintenance
3.1 WIFI CONFIGURATION
MAMUAL OPERATION03
PREPARATION:
1. Inverter must be powered up with only PV power
2. Need a router with available internet access to GoodWe portal
https://www.semsportal.com
1. Connect Solar-WiFi* to your PC or smart
phone(* means the last 8 characters of the
inverter serial No.)
2. Open browser and login 10.10.100.253
Admin (U): admin; Password: admin
3. Then click “OK”
1.
Click “Start Setup” to choose your router
2. Then click “Next”
1. Fill in the password of the router, then click
“Next”
2. Click “Complete”
10.10.100.253
Admin( U)：
Password：
OK
CANCEL
Remember the password( R)
Password (8-63 bytes)
Back Nex t
Note: case sensitive for SSID and password
Please make sure all parameters of wireless network are matched with router,
including password
Step 2 Step 3
Please select your current wireless network:
6 54%
Distribution box
On-Grid
Back-up
Battery
Solar
Array
Back-up
Loads
Normal Loads
L N PE
Meter
L
N
L
N
PE
L
N
PE
L
N
PE
E-N
Link
Smart
Meter
Don’t connect this terminal
for Australian and New
Zealand grid system !!!
RCD
Grid
N-BAR
GoodWe EH Series
Hybrid Inverter
E-BAR
BMS
E-BAR
The Grounding screw hole
at the lower right corner
RS485
RCD
CT
Distribution box
On-Grid
Back-up
Battery
Solar
Array
Back-up
Loads
Normal Loads
L N PE
Meter
L
N
L
N
PE
L
N
PE
L
N
PE
RCD
Grid
GoodWe EH Series
Hybrid Inverter
E-BAR
BMS
E-BAR
The Grounding screw hole
at the lower right corner
RS485
RCD
Smart
Meter
CT
*
This diagram is an example for Australia，South Africa and New Zealand grid system.
This diagram is an example for grid systems without special requirement on
electrical wiring connection.
Note: After the inverter is installedand worked normal when the grid connected , please turn off
the grid power to check whether the back-up function is normal, which can avoid the problems in
subsequent uses.
Note:The back-up PE line and rack earth must be grounded properly and effectively. Other-
wise the back-up function may be abnormal when the grid fail.
INSTALLATION INSTRUCTIONS
MAMUAL OPERATION
Note:
1. Please make sure the password, Encryption Method/Algorithm is right the same with the
router’s.
2. If everything is right well, the Wi-Fi LED on inverter will change from double blink to quartic blink
then to solid status, which means Wi-Fi is connected to GoodWe icloud successfully.
3. Wi-Fi configuration could also be done on PV Master, details please check on PV Master APP.
Note: For Australia safety country, the neutral cable of On-Grid side and Back-Up side must be
connected together, otherwise Back-Up function will not work.
System Connection Diagrams
Step 1
Device information
Add wireless network manually
Please enter the wireless network pass word:
Save success!
Fimware verison 1.6.9.3.38.2.1.38
Network name (SSID)
WiFi-Test
AES
hellogoodwe
show psk
Encryption method
Encryption algorithm
60:C5:A8:60:33:E1
S olar-WiFi
10.10.100.253
Disable
WiFi_ Burn-in
WAP/WAP2-PSK
WAP/WAP2-PSK
AES
WiFi_ Burn-in
Enable
MAC address
Wireless AP mode
Wireless STA mode
Router SSID
Encryption method
Encryption algorithm
Router Password
Start Setup
SSID
SSID
WIFI Test WAP2-PSK AES
RSSISec mode Enctype Channel
IP address
Cannot join the network, may be caused by:
router doesn't exist, or signal is too week, or password is incorrect
Help:Wizard will help you to complete setting within one mimute.
Note: When RSSIof the slected Wifi Network is lower than
1096,the conneteon may be ustbl, please sletoehe vailable
neworkor shorten the distance between the device and the
router.
ifyour wreles router does not bass, plese cik "Next" and
add a wireless network manually.
NextBack
Back
Complete
Click 'Complete', the current configuration will take effect after
restart.
If you still need to configure the other pages of information, please
go to complete your required configuration.
Configuration is completed, you can log on the Management page
to restart device by Click on 'OK' button.
Confirm to complete?
