08 System Commissioning
User Manual V1.0-2022-01-17

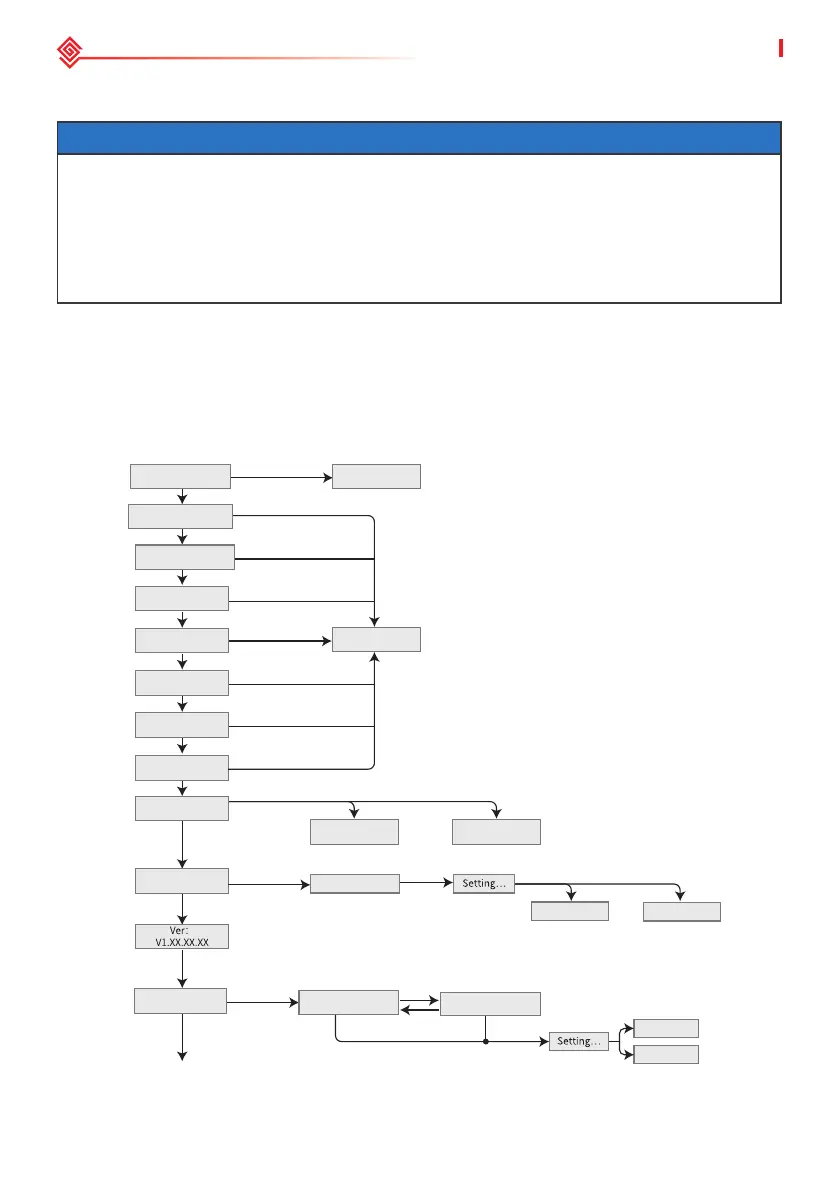

8.2.1 LCD Menu Introduction
This part describes the menu structure, allowing you view inverter information and set parameters
more conveniently.
Next page
50Hz Grid Default
Ipv =xxx .xx A
Pac = xxx W
Fac =xx.xx Hz
Pac = xxx W
Error History
Pac = xxx W
Model
Pac = xxx W
Set Language
Pac = xxx W
Normal
Pac = xxx W
50Hz Grid Default
Set OK Set Fail
No Error
UtilityLoss
190520 05:21
Vac=
xxx/xxx/xxx V
Iac=
xx.x/xx.x/xx.x
Vpv =
xxx .xx
V
Pac = xxx W
E-Total =xxx .xx KWh
Pac = xxx W
E-Today =xxx .xx KWh
Pac = xxx W
Set OK
Set Fail
English
Portuguese
Long press for 2s
Short press
Short press
Short press
Short press
Short press
Short press
Short press
Short press
Short press
Short press
Short press
Short press
Wait
Wait
Long press for 2s
Long press for 2s
Long press for 2s
Long press for 2s
Long press for 2s
Long press for 2s
Long press for 2s
Long press for 2s
Long press for 2s
Long press
for 2s
Long press
for 2s
Lock
Main menu
8.2 Setting Inverter Parameters via LCD
NOTICE
• Inverter software version shown in this document is V1.00.00.13. The screen shots are for
reference only. The actual display may di󽗈er.
• The name, range, and default value of the parameters is subject to change or adjust. The actual
display prevails.
• the power parameters should be set by professionals to prevent the generating capacity from
being in󽗊uenced by wrong parameters
