Goodwe UT Series User Manual

21
05 Installation
User Manual V1.0-2023-03-20
5.2.2 Installing the Inverter
NOTICE
• Avoid the water pipes and cables buried in the wall when drilling holes.
• Wear goggles and a dust mask to prevent the dust from being inhaled or contacting eyes
when drilling holes.
• Prepare and secure the mounting bracket if you want to install the inverter on the bracket.
• If you need to use the handles or hoisting rings, please contact after-sale service for
purchase.

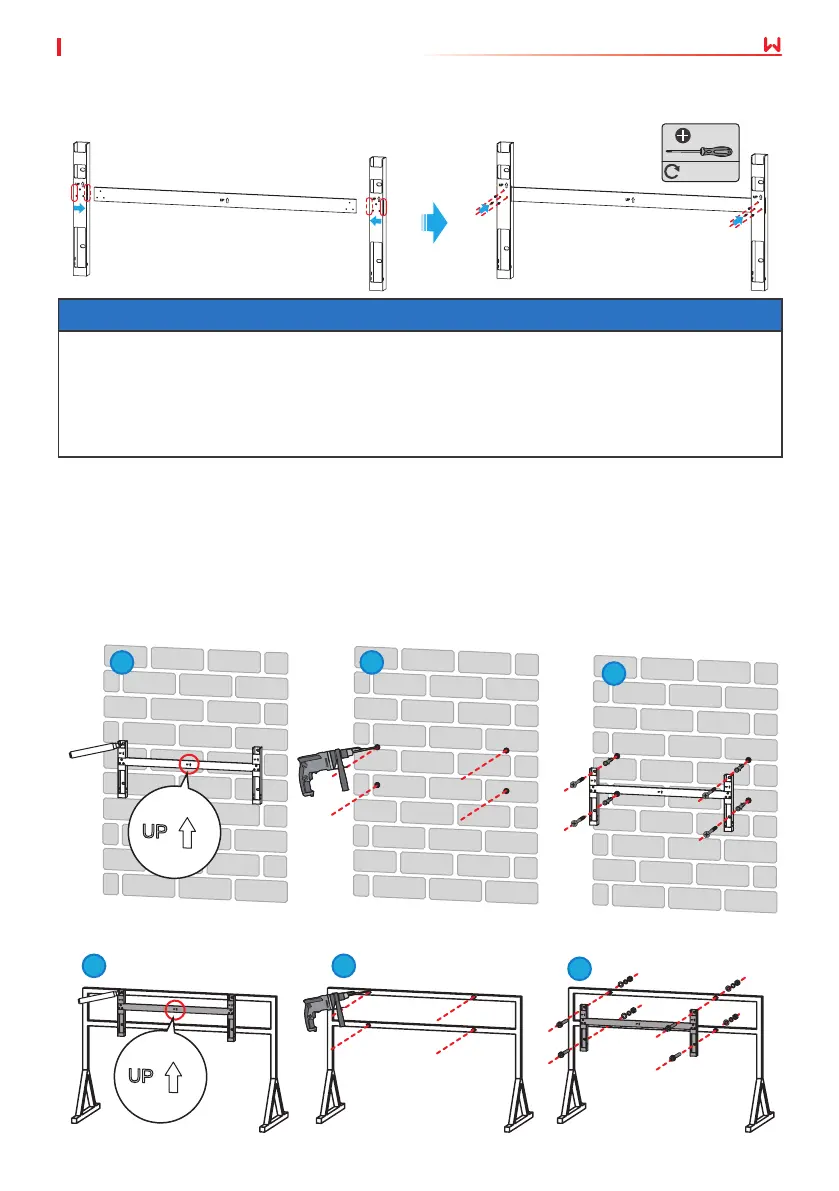

Step 1 Put the plate on the wall horizontally and mark positions for drilling holes.
Step 2 Drill holes to a depth of 65mm using the hammer drill. The diameter of the drill bit should
be 13mm.
Step 3 Fix the mounting plate on the wall or the bracket.
Avoid the water pipes and cables buried in the wall when drilling holes.
The M10 expansion bolts should be prepared by customers.
Wall mounting
Assembling the mounting plate
1 2
3
Bracket mounting
1 2
3
M3
1.5-2N·m
